TENSE

12-level reactive power controller with LED display

In stock - 8 items available
SKU: RGM-12S
€151,60 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

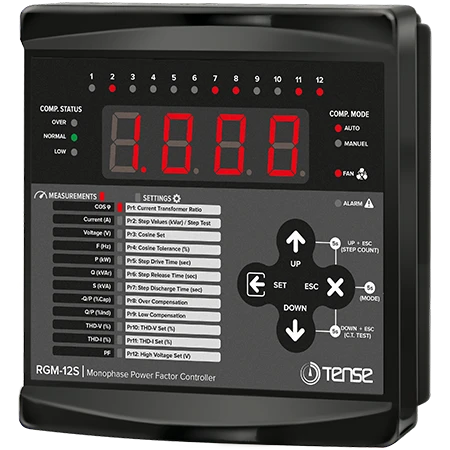

12 steps Single-phase connection Power factor controller for power factor control in networks with symmetrical loads (TENSE)

The reactive power control relay RGM-12S is designed to reduce inductive powers that do not use loads but are drawn from the grid. When inductive reactive powers are drawn from the grid, the relay intervenes by activating the capacitors with the correct value. In this way, it tries to bring the Cos-fi value to the desired level.

  • 7 Different programs for power factor compensation

  • Manual compensation programs for cos fi

  • Can only compensate inductive systems

  • Automatic step measurement

  • Step drive, discharge and discharge times are adjustable

  • Harmonic alarm values of voltage and current adjustable

  • Alarm values for over- and under-compensation can be set

  • Alarm output voltage, harmonic voltage/current, over- and under-compensation

  • Voltage, current, and frequency values can be monitored

  • Values for active power, reactive power, and apparent power can be monitored.

  • Up to 15th harmonic THD-I can be monitored.

  • Up to 15th harmonic THD-V can be monitored.

  • Cosine value can be monitored

  • Labor factor can be monitored

  • Automatic fan output

  • Equal aging in steps (in some compensation programs)
