TENSE

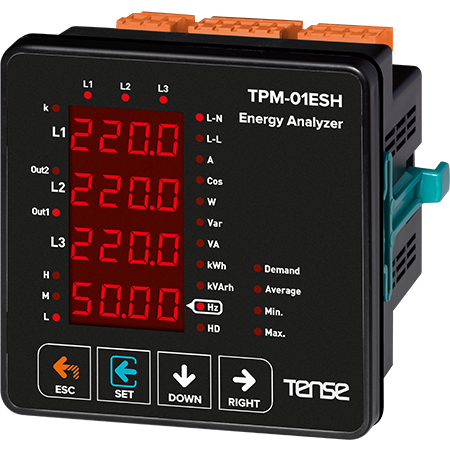

3-phase network parameter analyzer

In stock - 17 items available
SKU: TPM-01ESH
€116,40 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

3-Phase Network Analyzer / Network Analyzer / Network Parameter Meter - Multifunctional digital panel meter, current, voltage, frequency, and total power indicator, with two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH manufacturer TENSE (Turkey)

The multifunctional power network analyzer is designed for accurately measuring parameters of three-phase networks.

Power analyzers are designed to measure and monitor electrical values. Using the communication function, energy measurements can be independently checked and reported.

Key benefits:

  • RS485 Modbus RTU (1200-38400bps)
  • 3-phase voltage transformer and 3-phase current transformer.

  • Display of voltage and current harmonics up to the 31st harmonic.

  • Displays active power per phase (P)

  • Displays reactive power per phase (Q, inductive and capacitive)

  • Displays apparent power per phase (S)

  • Displays the Cosφ and power factor values of each phase

  • Displays the phase-neutral, phase-to-phase voltage (V) and current (I) values of each phase, measurement frequency

  • Displays the total input and output values of active energy (ΣkWh)

  • Displays the total values of inductive and capacitive reactive energy (ΣkVArh)

  • Display of minimum and maximum values, max. demand

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current imbalance, THD-I)

  • Menu is password protected.

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you want to connect the analyzer to ModBus, we will send you a register table with ModBus addresses upon request.
