3-phase RS485 spanning frequency power energy current multimeter for panel mounting

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

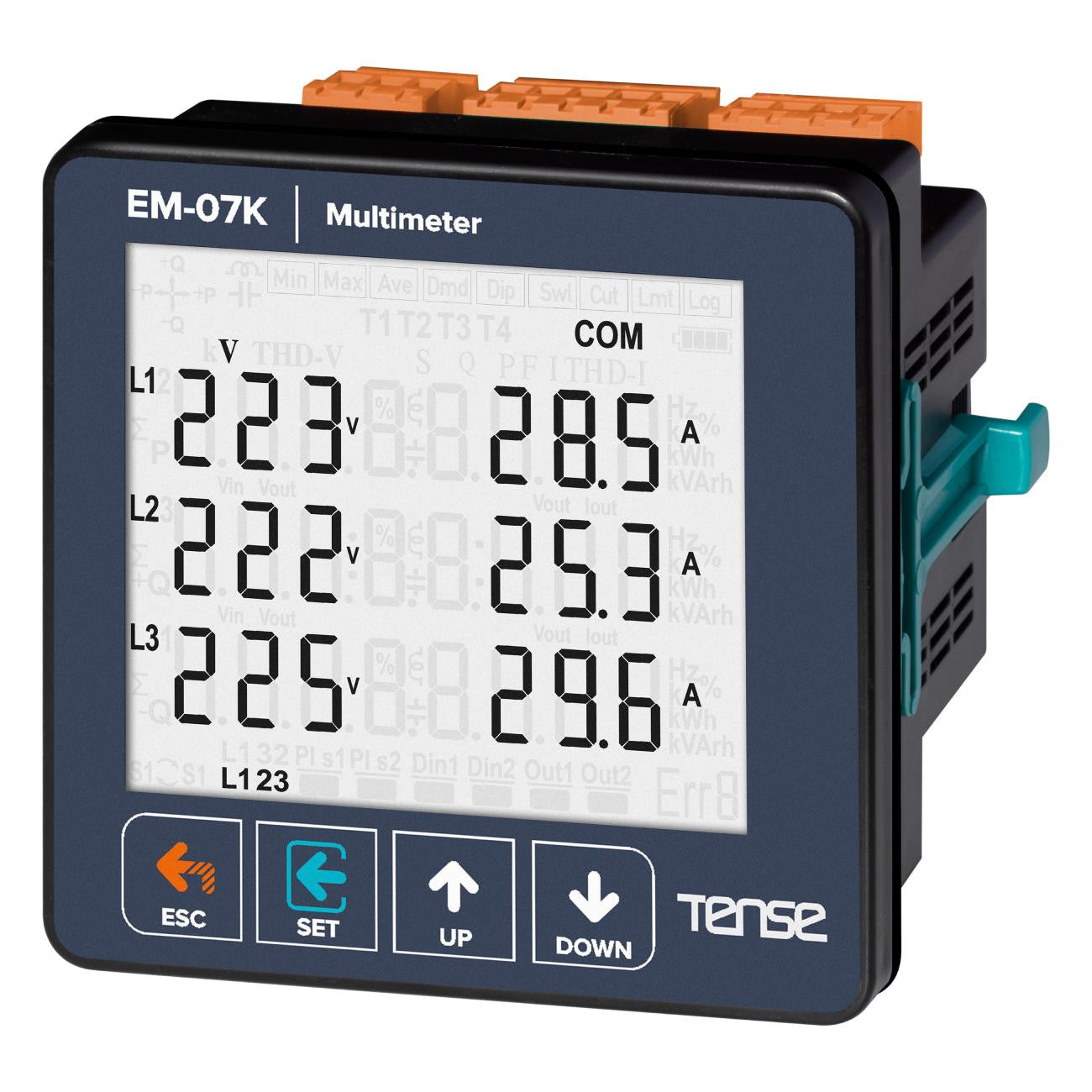

Three-phase multimeter - 3-phase multifunctional digital panel meter, current, voltage, frequency, and total power indicator, energy kW*h and ModBus RTU manufacturer TENSE (Turkey), panel meters.

Key benefits:

• RS485 Modbus RTU (1200-38400bps)

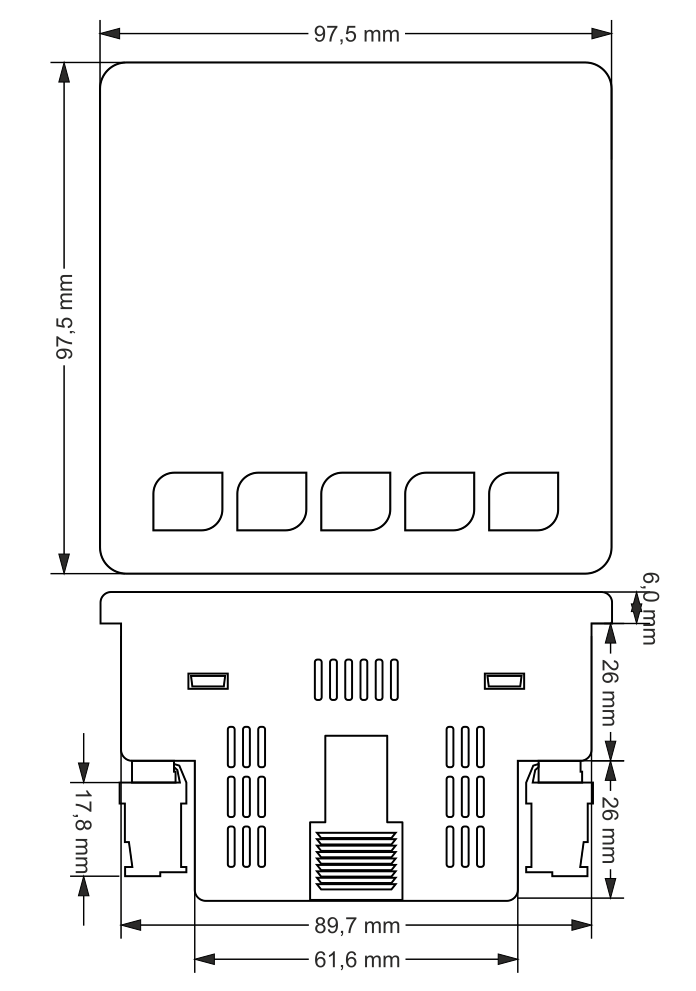

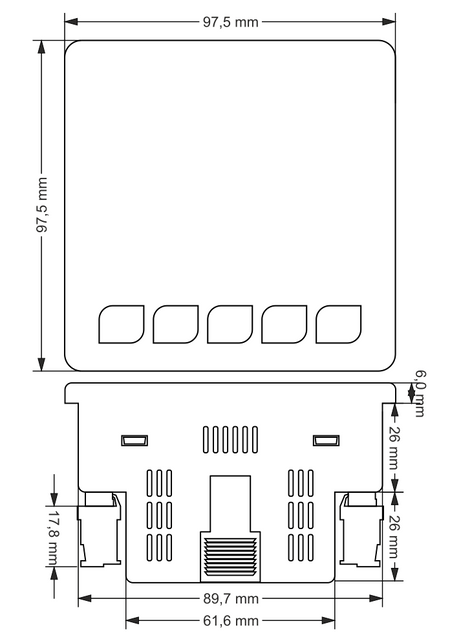

• 71.5 x 61.5 custom glass LCD design

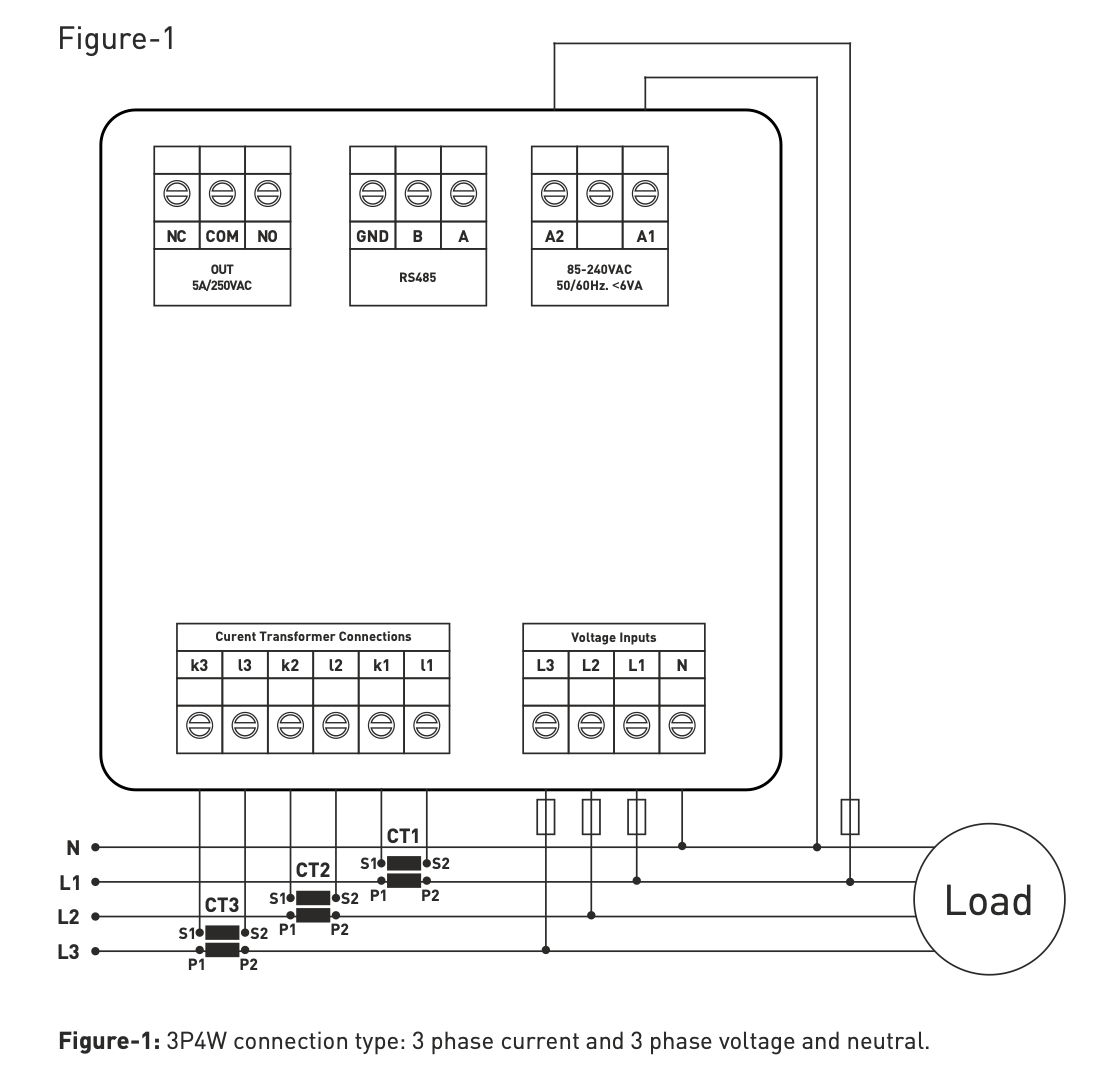

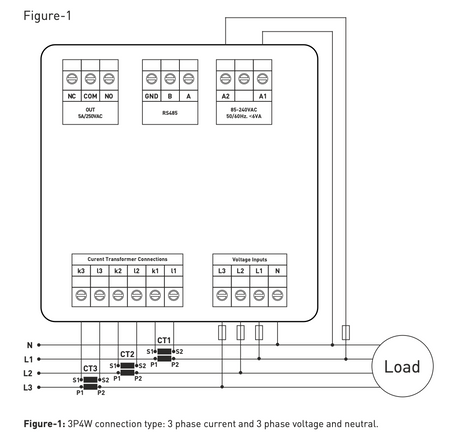

• 3-phase voltage transformer and 3-phase current transformer.
• Displays V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3.
• Displays the minimum, maximum, and average values of V1, V2, V3, V12, V23, V31, F1, F2, F3.
• Displays minimum, maximum, average, and setpoints I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (configurable) Phase-neutral or phase-phase protection (configurable)
• Energy meter / Power meter
• Protects voltage, current, and frequency
• Display phase sequence
• You can clear requirements
• Menu is password protected.

Typically, this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our e-shop,
