TENSE

3-phase network parameter analyzer of current frequency voltage currents RS485

In stock - 19 items available
SKU: TPM-05
€198,80 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

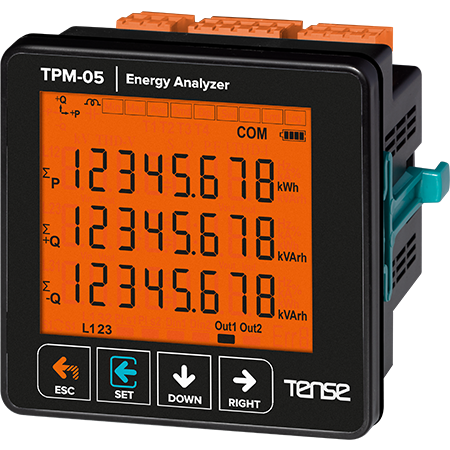

3-phase network parameter analyzer - three-phase multifunctional digital panel meter, current, voltage, frequency, and total power indicator, with two relay outputs and digital input, RS485 ModBus RTU - TPM-05 manufacturer TENSE (Turkey) panel meters.

Power analyzers are designed to measure and monitor electrical values. Thanks to the communication function, energy measurements can be independently monitored and reported. Analyses such as energy quality, efficiency, and unit cost calculations can be performed with energy analyzers.

Key benefits:

  • RS485 Modbus RTU (1200-115200bps)
  • 3-phase voltage transformer and 3-phase current transformer.

  • Displays voltage and current harmonics up to the 55th harmonic.

  • Displays active power per phase (P)

  • Displays reactive power per phase (Q, inductive and capacitive)

  • Displays apparent power per phase (S)

  • Displays the Cosφ and power factor values of each phase

  • Displays the phase-neutral, phase-to-phase voltage (V) and current (I) values of each phase, measurement frequency

  • Displays the total input and output values of active energy (ΣkWh)

  • Displays the total values of inductive and capacitive reactive energy (ΣkVArh)

  • Display of minimum and maximum values, max. demand

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current imbalance, THD-I, power interruption)

  • Current date and time (RTC)

  • The menu is protected by a password.

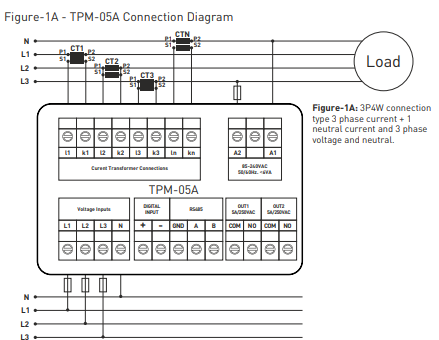

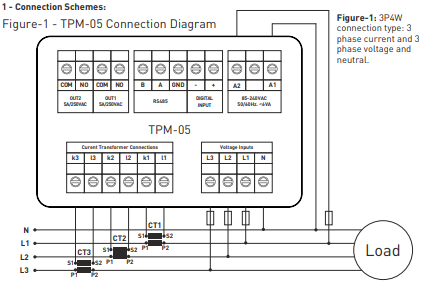

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you want to connect the analyzer to ModBus, we will send you a register table with ModBus addresses upon request.
