40-250 V AC/DC

In stock - 5 items available
SKU: SNT-7022-F4-10U
Common price €80,80 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

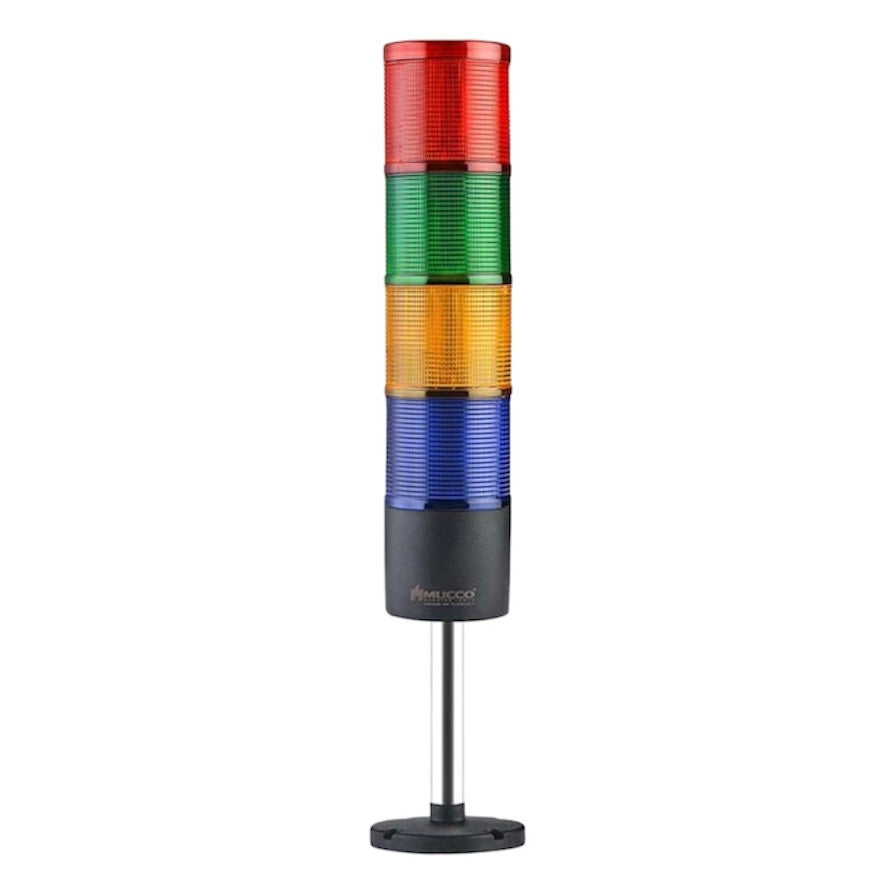

Four-stage signal pole with mounting and 10cm tube, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, manufacturer MUCCO (Turkey)


Buzzer options No

Flashing light type Flashing

TECHNICAL DATA

  • Category.
  • Current:

12~24V AC/DC: 166mA ±10%
40~250V AC/DC: 30mA ±10% 50-60 Hz

  • Housing material: Material: ABS (housing) + polycarbonate (lens)
  • Lens colors: (customizable colors): Red, Green, Yellow, Blue (customizable colors)
  • Lens diameter: ø70 mm
  • Light source: SMD LED
  • Light mode: Constant, flashing, strobe, rotating.
  • Response time input: on/off: max. 10 ms
  • Tone: (wired control): 1 tone
  • Alarm: 103~116 dB at 1 m (3.3 ft)
  • Connection: wired:
  • Mounting type: foldable base and options with external tube
  • Operating conditions: -20°C to +50°C (-4°F to +122°F)
  • Life expectancy: If necessary, additional points must be specified. 50,000 hours
  • Protection degree: IP65
  • Water, dust, heat, and UV resistance.
  • ISO-9001, CE, RoHS2 and EAC
