40-250 V AC/DC

In stock - 5 items available
SKU: SNT-S725-FB-2-10T
Common price €37,40 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

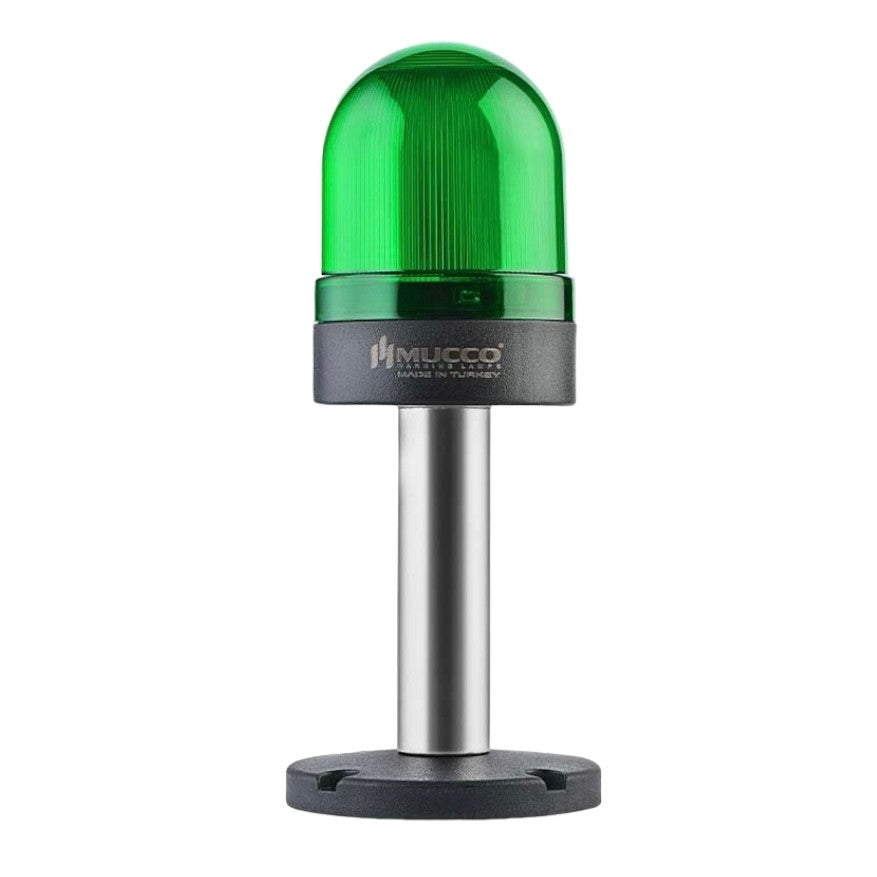

Green flashing light series 70 with nut connection, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey)


70 LENS OPTIONS

LIGHT TYPE Flashing

Hooter options with hooter

EXTENSION TUBE 10 cm

TECHNICAL DATA

  • Category.
  • Current:

24V/DC (without hooter): 110mA ±10%

24V/DC (with hooter): 10% 10V/DC (with hooter): 150mA ±10%

40~250V AC/DC (without hooter): 10/10 mA: 78mA ±10% 50-60 Hz

40~250V AC/DC (with hooter): 60-60 Hz: 95mA ±10% 50-60 Hz

  • Housing material: ABS (housing) + polycarbonate (lens)
  • Lens colors: Red, green, yellow, blue, white

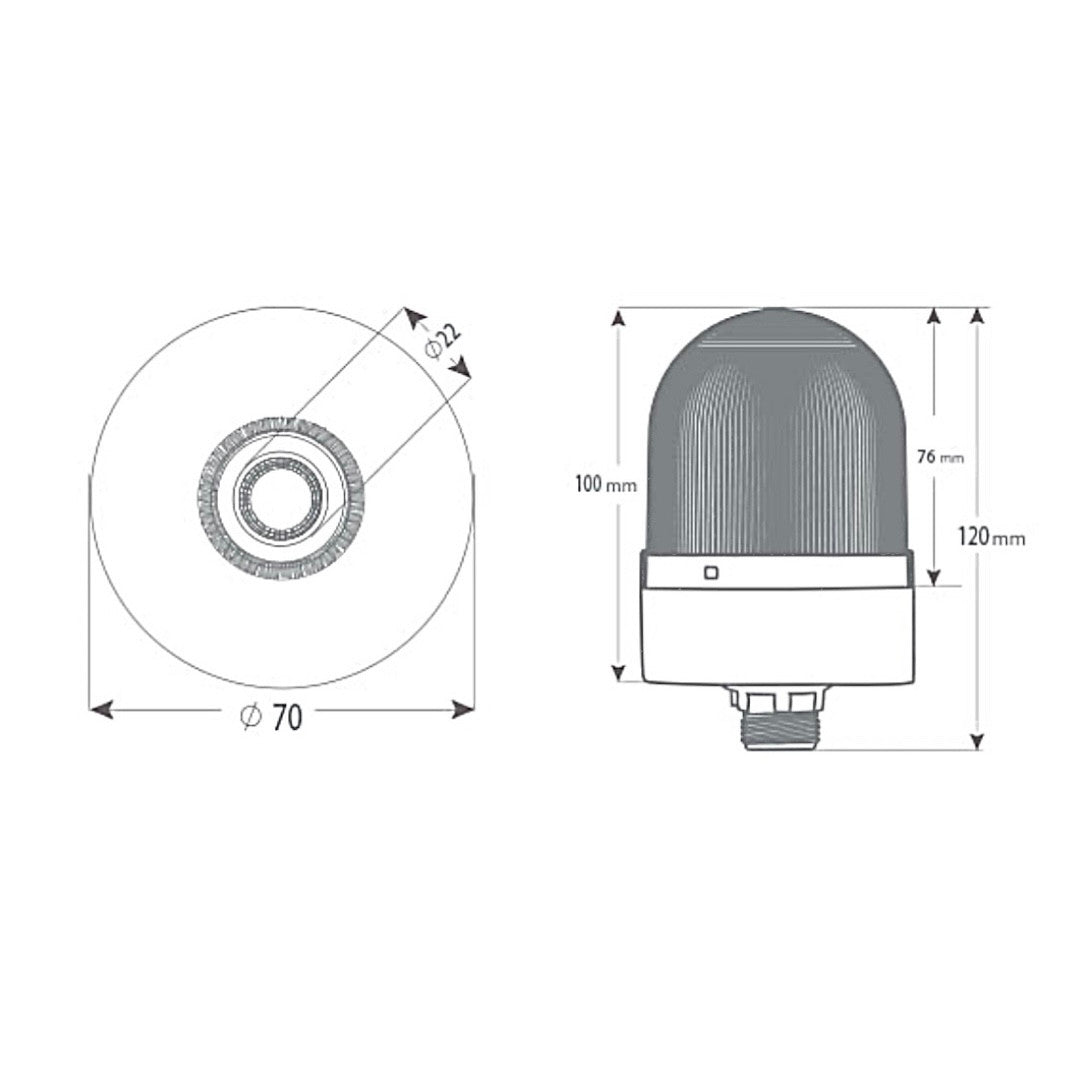

  • Lens diameter: ø70 mm (nut M22 - connection)
  • Light source: LIGHT SOURCE: SMD LED
  • Light mode: Constant, flashing
  • Response time input: on/off: max. 10 ms
  • Tone: (wired control): 1 tone
  • Alarm: 104~107 dB at 1 m (3.3 ft)
  • Connection: wired:
  • Surface mount, wall mount Mounting type.
  • Operating conditions: -20°C to +50°C (-4°F to +122°F)
  • Life expectancy: Duration: min. 50,000 hours
  • Protection degree: IP65
  • Protection: Water, dust, heat, and UV resistance
  • Quality certificates and documents: ISO-9001, CE, RoHS2 and EAC
