Air conditioning for control panels / Cooler 1600W, PAD1600.01, Plastim

In stock - 8 items available
SKU: PAD1600.01
Common price €1.782,00 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

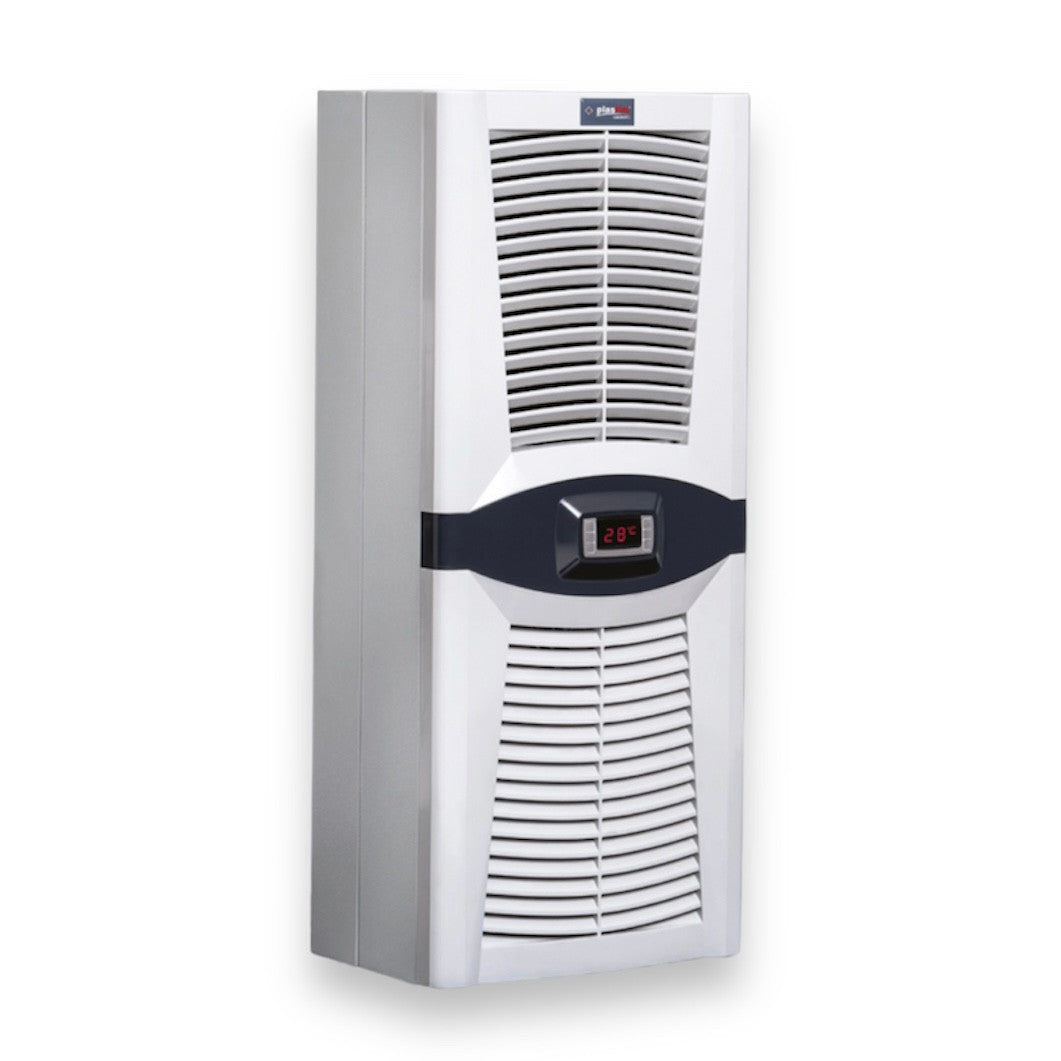

Air conditioner for control panel/cooler 1600 watts (Design series) for side or wall mounting of control panels and automation boards.

The PAD1600.01 (PLASTIM) control cabinet air conditioner is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the control cabinet door.

Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.

TECHNICAL DETAILS

PAD1600.01

Cooling capacity L35 / L35

1600W / 5500BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

8A

Operating current

3.2A

Fuse

10A

Power consumption

725W

Operational range

0-55 °C

Thermostat factory setting

35 °C

Differential

4 °C

Max. internal circuit air volume

510 m³/h

Max. air volume external circuit

510 m³/h

Type of refrigerant

R134a

Amount of refrigerant

600gr

Dimensions

980x430x270mm

Weight

45 kg

Noise level

79dB

Protection class (internal circuit)

IP 54

Protection class (external circuit)

IP 34

Colour

RAL7035

Compressor

HIGH/HITACHI

Type compressor

Rotary

Fans

EBMPAPST

Assembly method

Wall Mount
