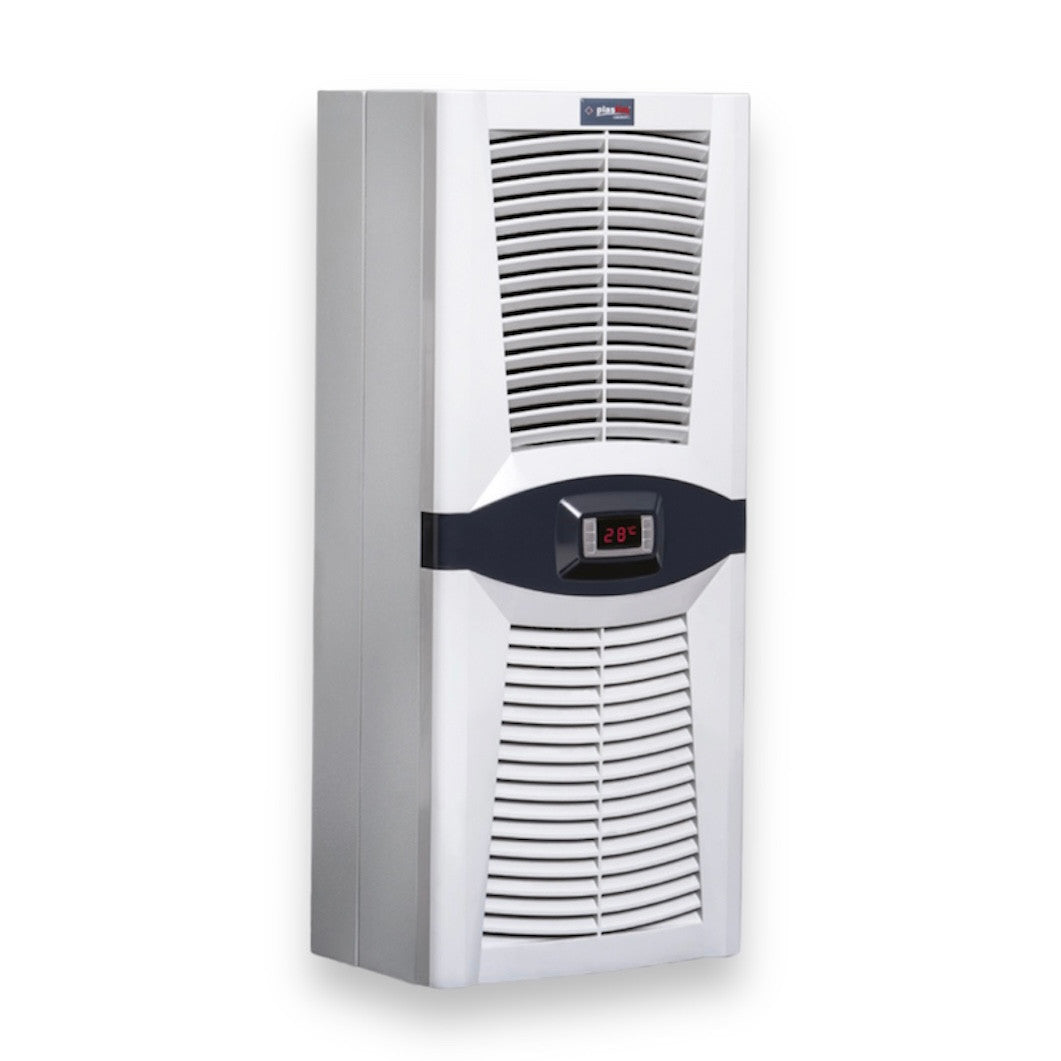

Air conditioning for control panels / Cooler 2100W, PAD2100.01, Plastim
- Regular price
- €2.284,96
- Regular price
-
- Sale price
- €2.284,96
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
"Design Series" air conditioner for control panel / cooling machine 2500 Watt / 8550BTU for side or wall mounting on control panels and automation panels.
The PAD2550.01 (PLASTIM) air conditioner for control cabinets is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the control cabinet door.
Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD2100.01 |
|
Cooling capacity L35 / L35 |
2100W / 7200BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
10A |
|
Operating current |
3.8A |
|
Fuse |
16A |
|
Power consumption |
800W |
|
Operational range |
0-55 °C |
|
Thermostat factory setting |
35 °C |
|
Differential |
4 °C |
|
Max. internal circuit air volume |
510 m³/h |
|
Max. air volume external circuit |
625 m³/h |
|
Type of refrigerant |
R134a |
|
Amount of refrigerant |
700gr |
|

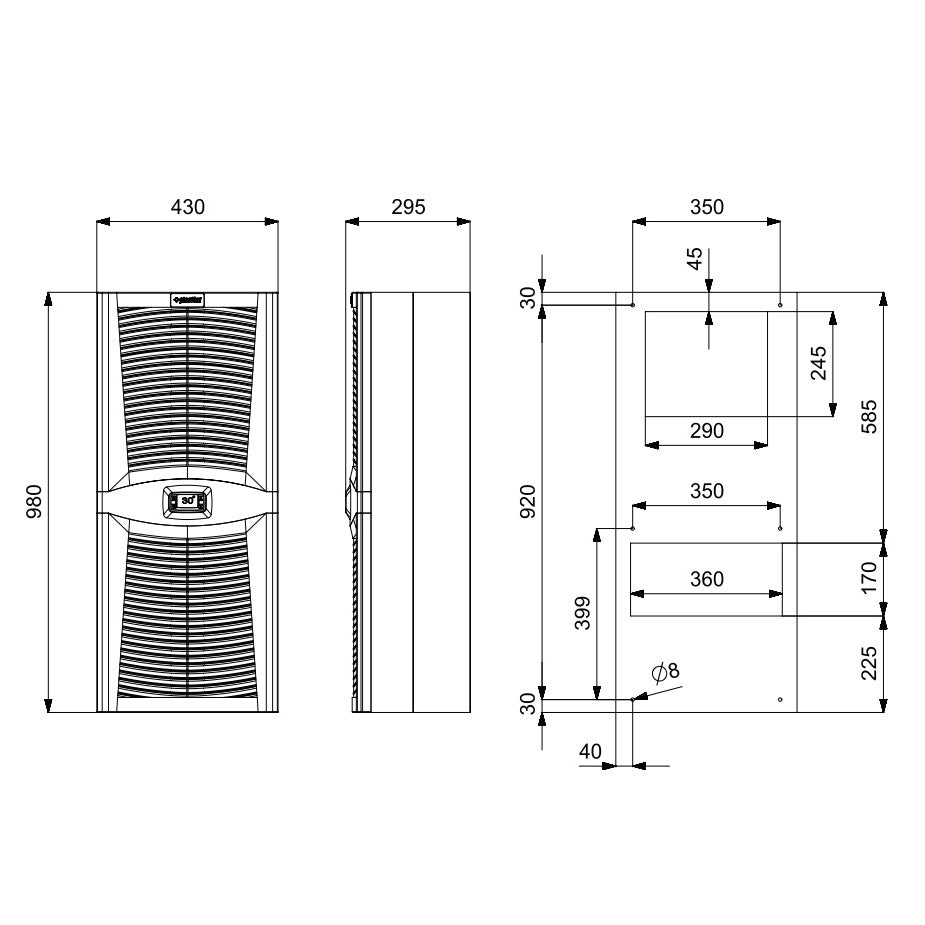

Dimensions |
980x430x270mm |
|
Weight |
46 kg |
|
Noise level |
80dB |
|
Protection class (internal circuit) |
IP 54 |
|
Protection class (external circuit) |
IP 34 |
|
Colour |
RAL7035 |
|
Compressor |
HIGH/HITACHI |
|
Type compressor |
Rotary |
|
Fans |
EBMPAPST |
|
Assembly method |
Wall Mount |
