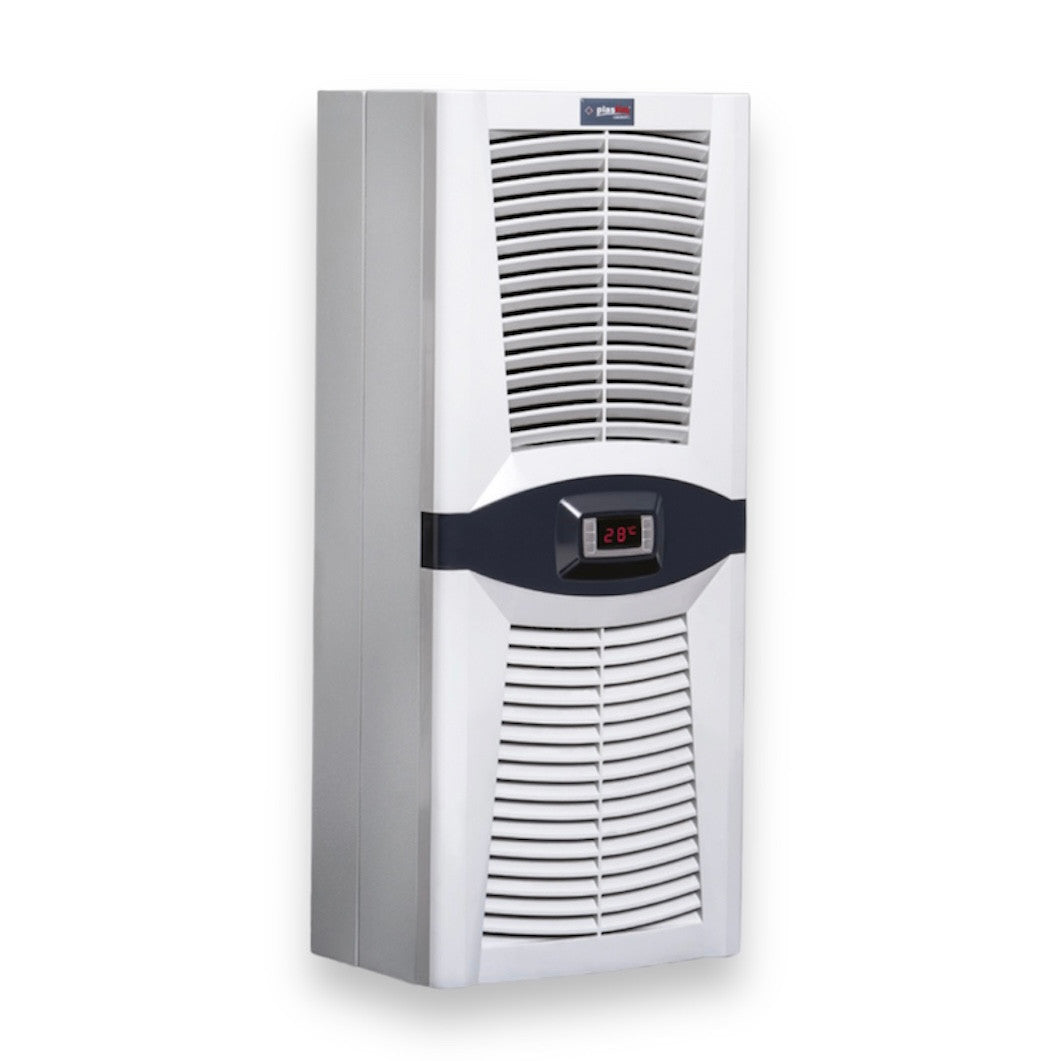

"Design Series" air conditioner for control panel / cooling machine 2500 Watt / 8550BTU for control panel and automation panel side or wall mounting.
The PAD2500.01 (PLASTIM) air conditioner for control cabinets is equipped with a modern open rotating compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch to control the opening of the control cabinet door.
Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.
TECHNICAL DETAILS |
PAD2500.01 |
Cooling capacity L35 / L35 |
2500W / 8550BTU |
Operating voltage |
230VAC |
Frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Operational range |
0-55 °C |
Thermostat factory setting |
35 °C |
Differential |
4 °C |
Max. internal circuit air volume |
510 m³/h |
Max. air volume external circuit |
625 m³/h |
Type of refrigerant |
R134a |
Amount of refrigerant |
750gr |

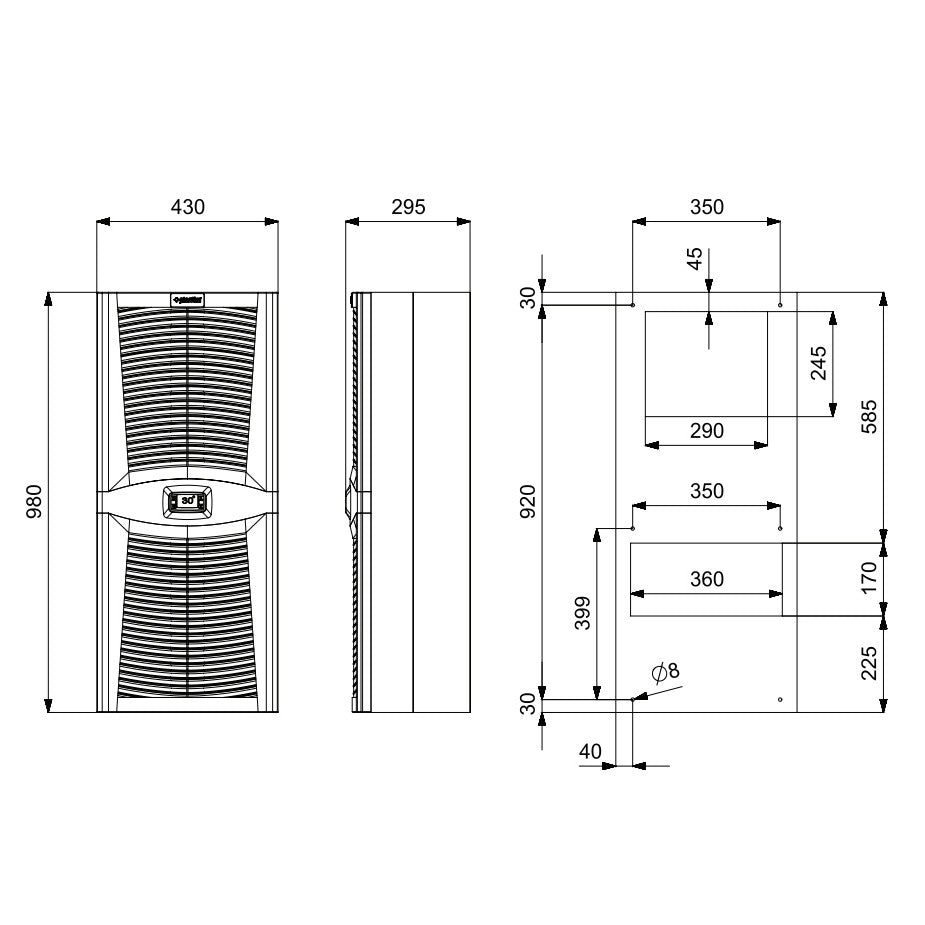

Dimensions |
980x430x270mm |
Weight |
47 kg |
Noise level |
82 dB |
Protection class (internal circuit) |
IP 54 |
Protection class (external circuit) |
IP 34 |
Colour |
RAL7035 |
Compressor |
HIGH/HITACHI |
Type compressor |
Rotary |
Fans |
EBMPAPST |
Assembly method |
Wall Mount |
