Air conditioning for control panels / Cooler 380W, PAD0380.01, Plastim
Barcode:
PAD0380.01
- Regular price
- €1.198,60
- Regular price
-
- Sale price
- €1.198,60
- Unit price
- per
Low stock: 3 left
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

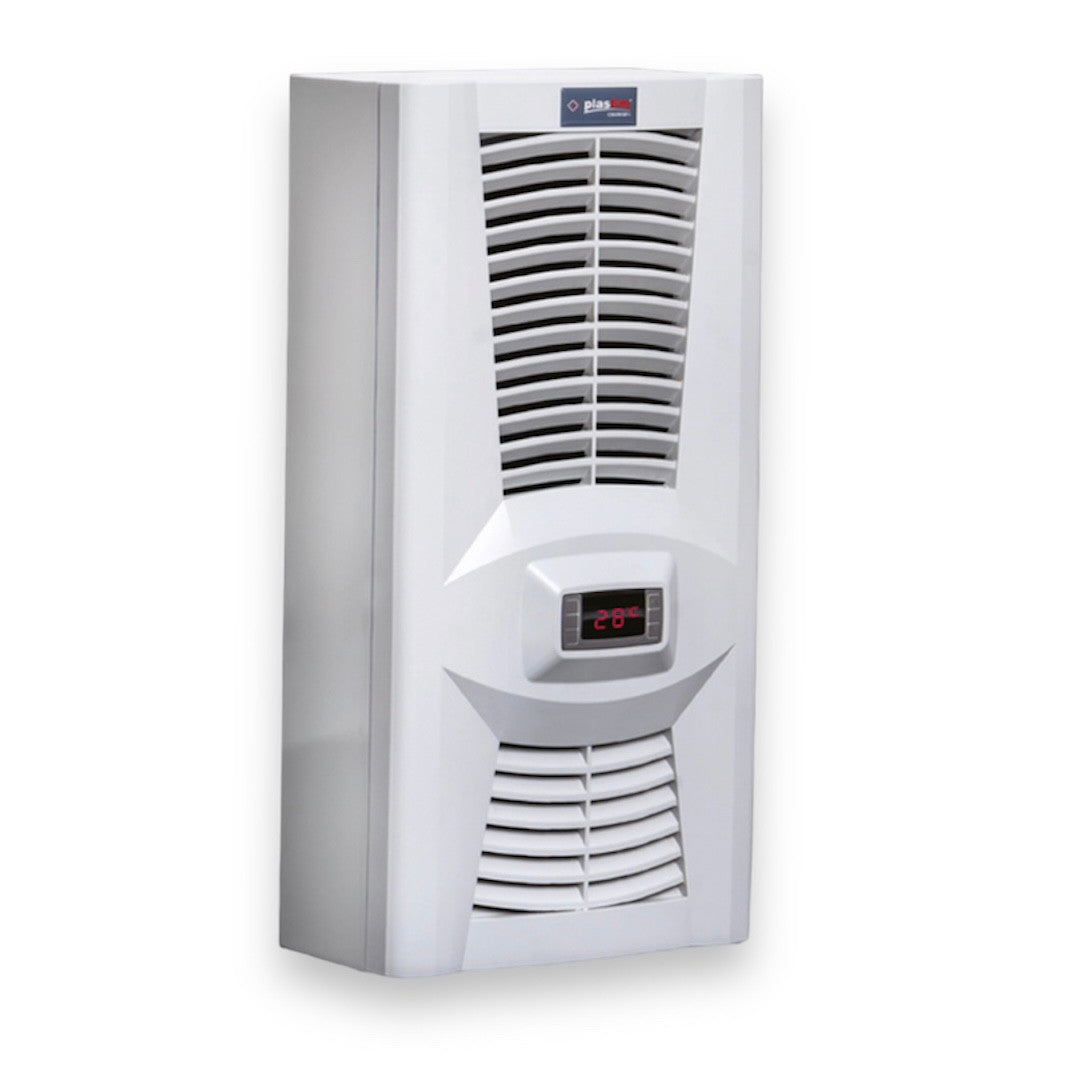

"Design Series" air conditioner for control panel / cooling machine 380 Watt / 1300 BTU for control panel and automation panel side or wall mounting.
The PAD0380.01 (PLASTIM) air conditioner for control panels is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the control panel door.
Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Fuse | 5A |
| Power consumption | 325W |
| Operational range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Max. internal circuit air volume | 340 m³/h |
| Max. air volume external circuit | 340 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Noise level | 75dB |
| Protection class (internal circuit) | IP 54 |
| Protection class (external circuit) | IP 34 |
| Colour | RAL7035 |
| Compressor | HIGH/HITACHI |
| Type compressor | Rotary |
| Fans | EBMPAPST |
| Assembly method | Wall Mount |
