Vendor: Plastim

Air conditioning for control panels / Cooler 550W, PAD0550.01, Plastim

Barcode: PAD0550.01
€1.282,80
€1.282,80
Low stock: 5 left
  • Description
  • Instructions
  • Payment methods
  • Warranty

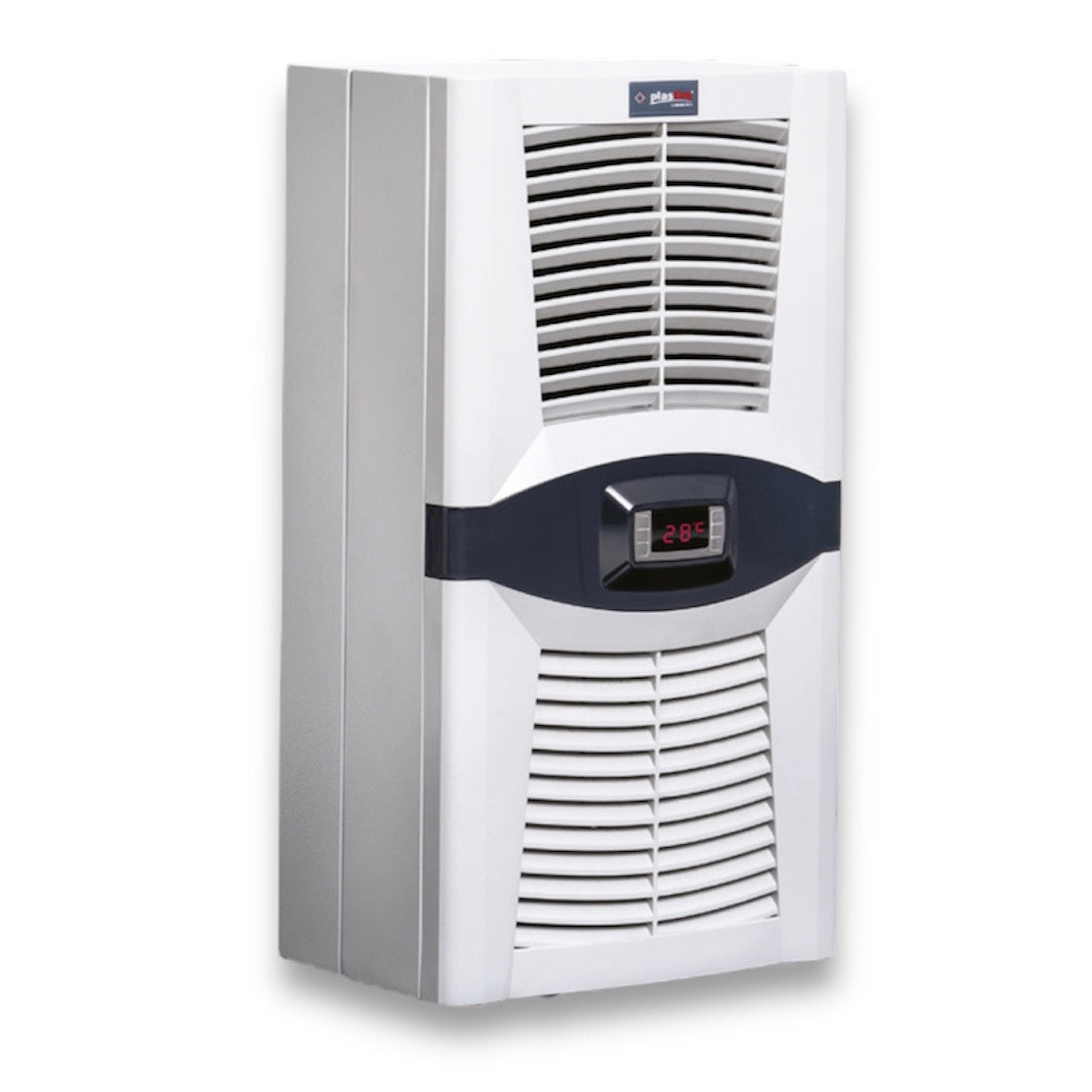

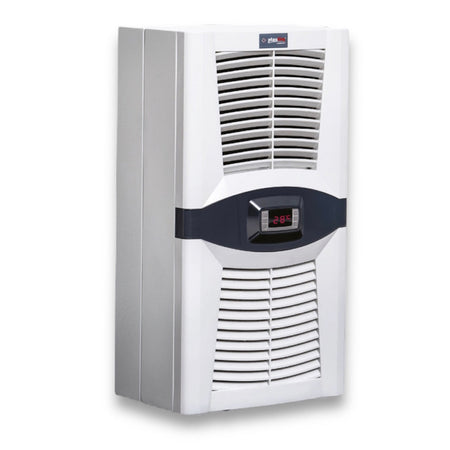

"Design Series" air conditioner for control panel/cooler 550 Watt / 1900BTU for control panel- and automation panel mounting on the side or on the wall.

The PAD0550.01 (PLASTIM) air conditioner for control cabinets is equipped with HIGHLY's state-of-the-art open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the control cabinet door.

Everything needed to install the air conditioning for the cabinet is included - gaskets, drain pipe, mounting screws, power connector.

TECHNICAL DETAILS PAD0550.01
Cooling Capacity L35 / L35 550W / 1900BTU
Operating Voltage 230VAC
Frequency 50/60 Hz
Starting Current 1.2A
Operating Current 1.1A
Fuse 6A
Power Consumption 330W
Operating Range 0-55 °
Thermostat Factory Setting 35 °
Differential 4 °
Max. Air Volume Internal Circuit 340 m³/h
Max. Air Volume External Circuit 505 m³/h
Refrigerant Type R134a
Refrigerant Quantity 245gr

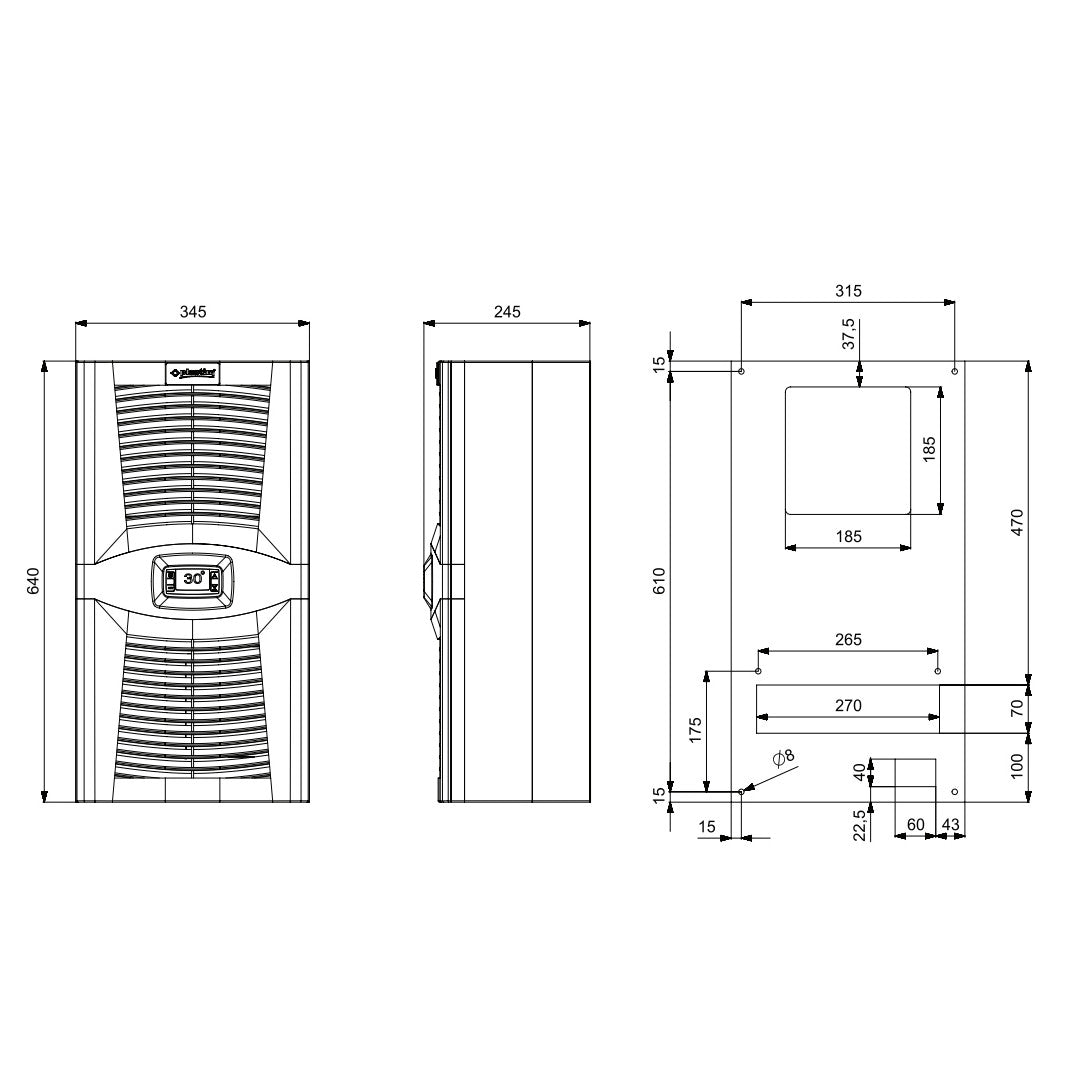

Dimensions 640x345x223mm
Weight 27kg
Noise Level 76 dB
Protection Class (Internal Circuit) IP 54
Protection Class (External Circuit) IP 34
Color RAL7035
Compressor HIGH/HITACHI
Compressor Type Rotary
Fans EBMPAPST
Mounting Method Wall Mounting

Manual

https://files.principalelektrik.org/Design%20Series%20Ac%20User%20Manual%20English.pdf
