Vendor: Plastim
Air conditioning for control panels / Cooler 850W, PAD0850.01, Plastim
Barcode:
PAD0850.01
- Regular price
- €1.503,28
- Regular price
-
- Sale price
- €1.503,28
- Unit price
- per
Low stock: 9 left
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

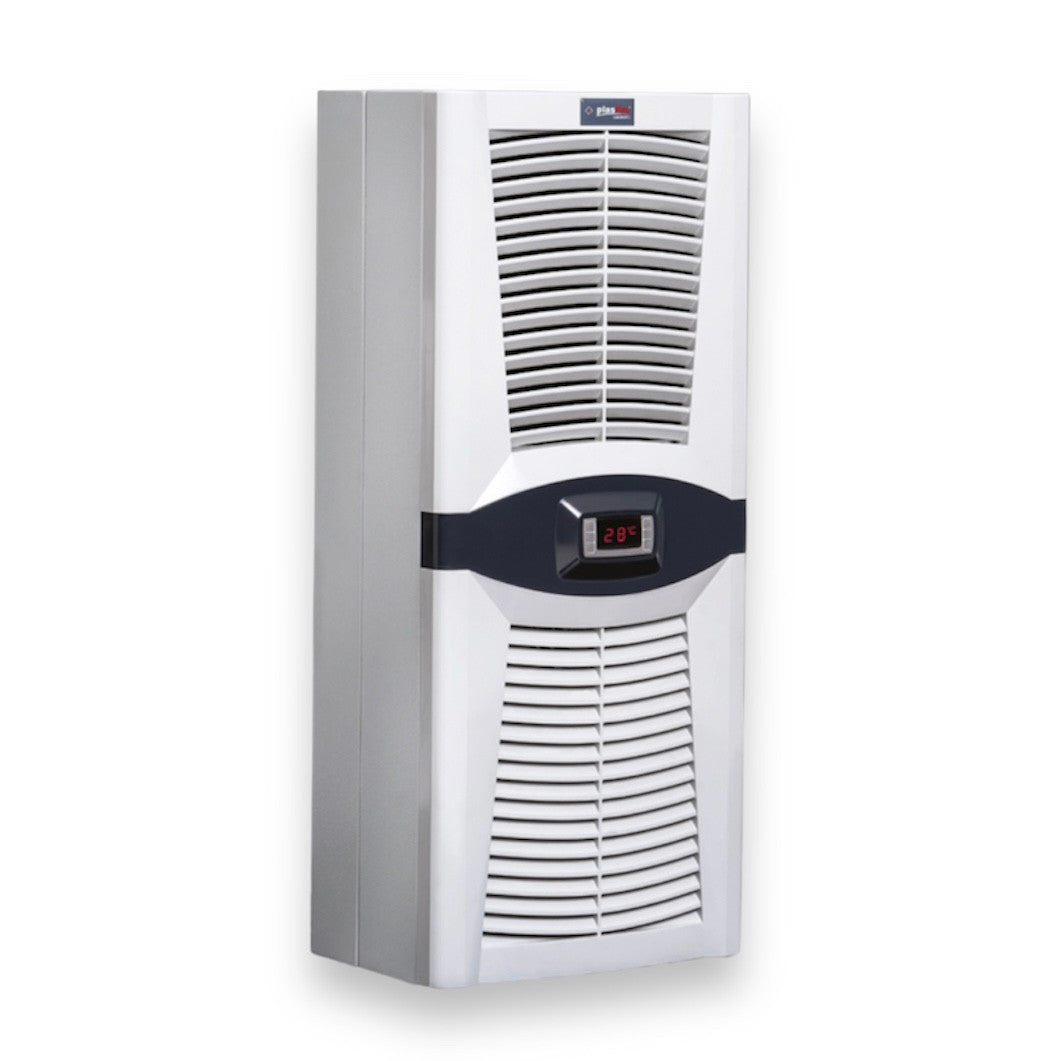

"Design Series" air conditioner for control panel / cooling machine 850 Watt / 2990BTU for control panel and automation panel side or wall mounting.
The air conditioner for control panels PAD08500.01 (PLASTIM) is equipped with HIGHLY's modern open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch to control the door opening of the control panel.
Everything needed to install the air conditioning for the cabinet is included - seals, drain pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Thermostat factory setting | 35 °C |
| Differential | 4 °C |
| Max. internal circuit air volume | 340 m³/h |
| Max. air volume external circuit | 505 m³/h |
| Type of refrigerant | R134a |
| Amount of refrigerant | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30 kg |
| Noise level | 76 dB |
| Protection class (internal circuit) | IP 54 |
| Protection class (external circuit) | IP 34 |
| Colour | RAL7035 |
| Compressor | HIGH/HITACHI |
| Type compressor | Rotary |
| Fans | EBMPAPST |
| Assembly method | Wall Mount |
