Bimetal cooling thermostat NO contact, range 0-60°C - temperature switches

In stock - 85 items available
SKU: PTOT100
Common price €8,76 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

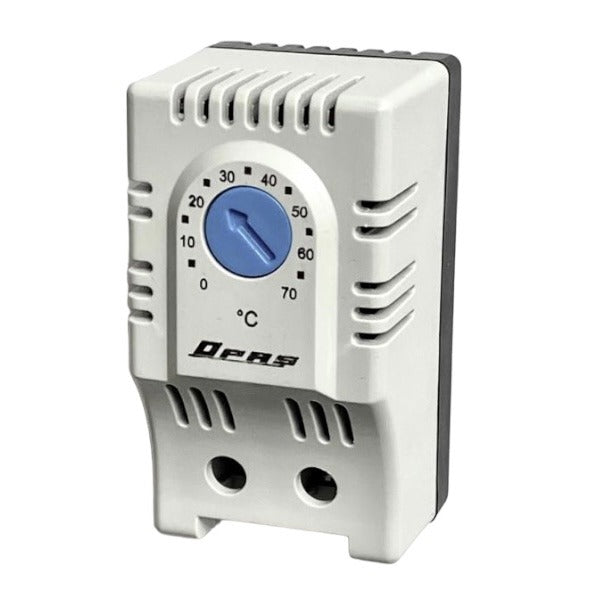

Bimetal cooling thermostat / temperature switch NO, switching, 0-60°C, bimetal from OPAŞ

Cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for DIN rail mounting for fan connection or signaling when the temperature rises above the set level, normally one open contact (NO contact) PTOT100, 2p, screw terminal, bimetal thermostats from OPAŞ.

These thermostats are used in systems that maintain a set temperature with cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other equipment installed outdoors or in uncooled spaces.

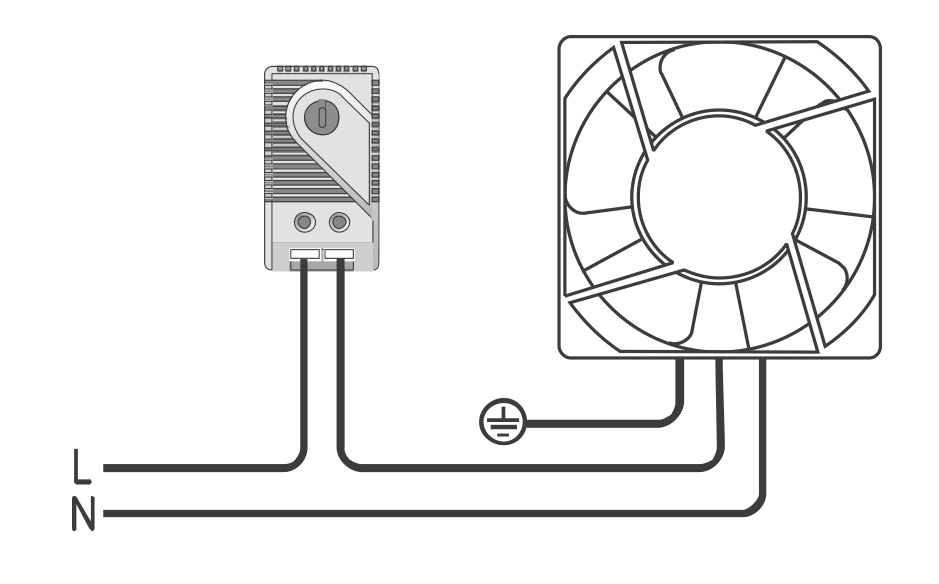

They are used to connect fans, coolers/air conditioners.

Features

PTOT100

Contact type

NO

Setpoint range

0-60 °C

Potentiometer color

Blue

250 V AC / 120 V AC

15 (2) A

Sensor type

Bimetal

Contact type

Click action

Lifespan

> 100,000

Electrical connection

2-pole terminal, screw terminals

Plastic

UL94 V0 ABS Flame retardant

Protection rating

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Installation

DIN rail 35 mm

Dimensions HxWxD

61x34x38 mm

Weight

43g
