Bimetal thermostat 0-60C NC, PTHT, Plastim
Failed to load pickup availability
Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email
Payment upon delivery - payment according to the payment instructions to the driver of the transport company
Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.
By invoice - this payment option is for partners who have concluded a framework agreement with our company.
If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.
In the event of a complaint, there will be no charges for returning goods.

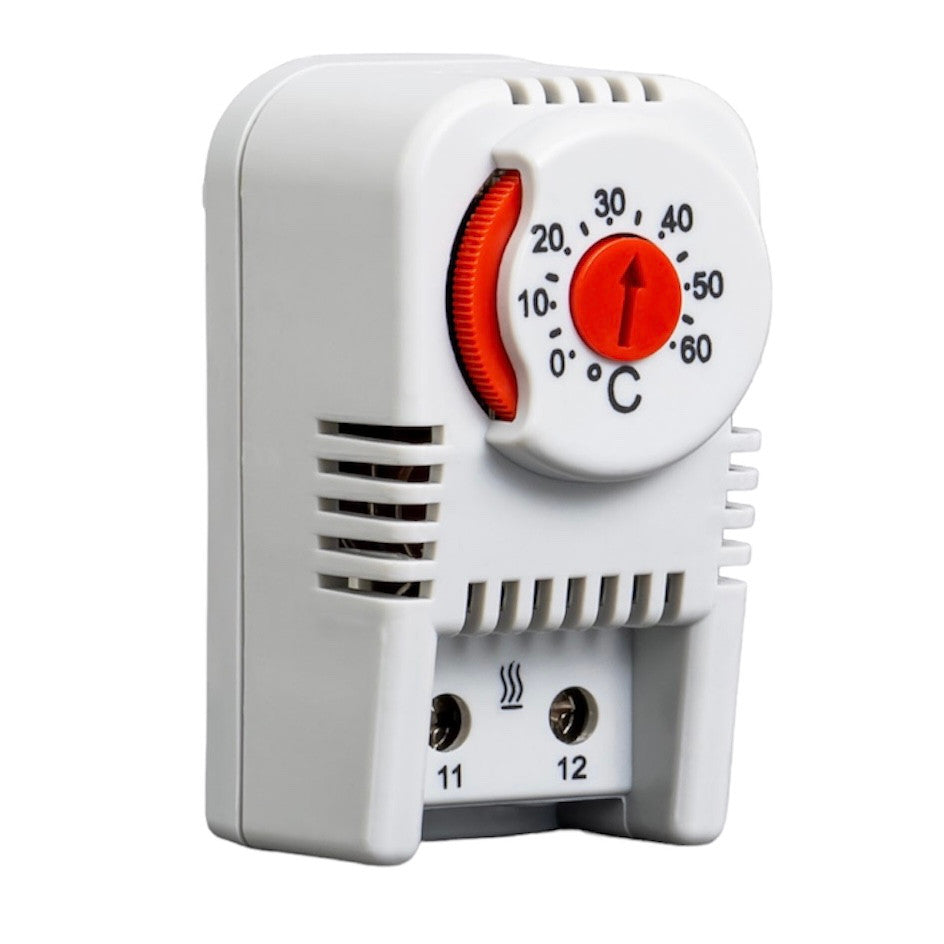

Thermostat for heating control. Adjustable temperature 0-60°C. Mounting on DIN rail. 1xNC, Plastim bimetal thermostats.
Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating function. Electrical connection with 2 terminals 2.5 mm2. Mounting option on 35mm DIN rail, cross rails, on mounting panel.
Used to connect heating elements - heating elements, panel heaters, underfloor heating, heating cables, heat fans
Features |
PTHT |
Contact type |
NC |
Setpoint range |
0-60°C |
Potentiometer color |
Red |
250 V AC / 120 V AC |
10 (2)A |
Sensor type |
Bimetal |
Contact type |
Unexpected Action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic |
UL94 V0 ABS Flame retardant |
Protection rating |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45/+80°C |
Installation |
DIN rail 35 mm |

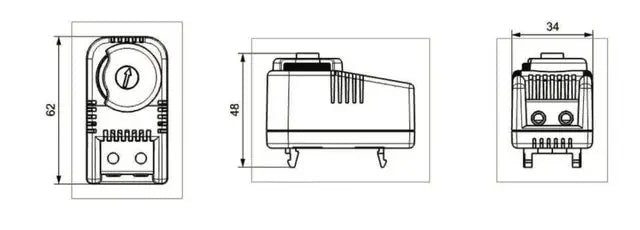

Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
