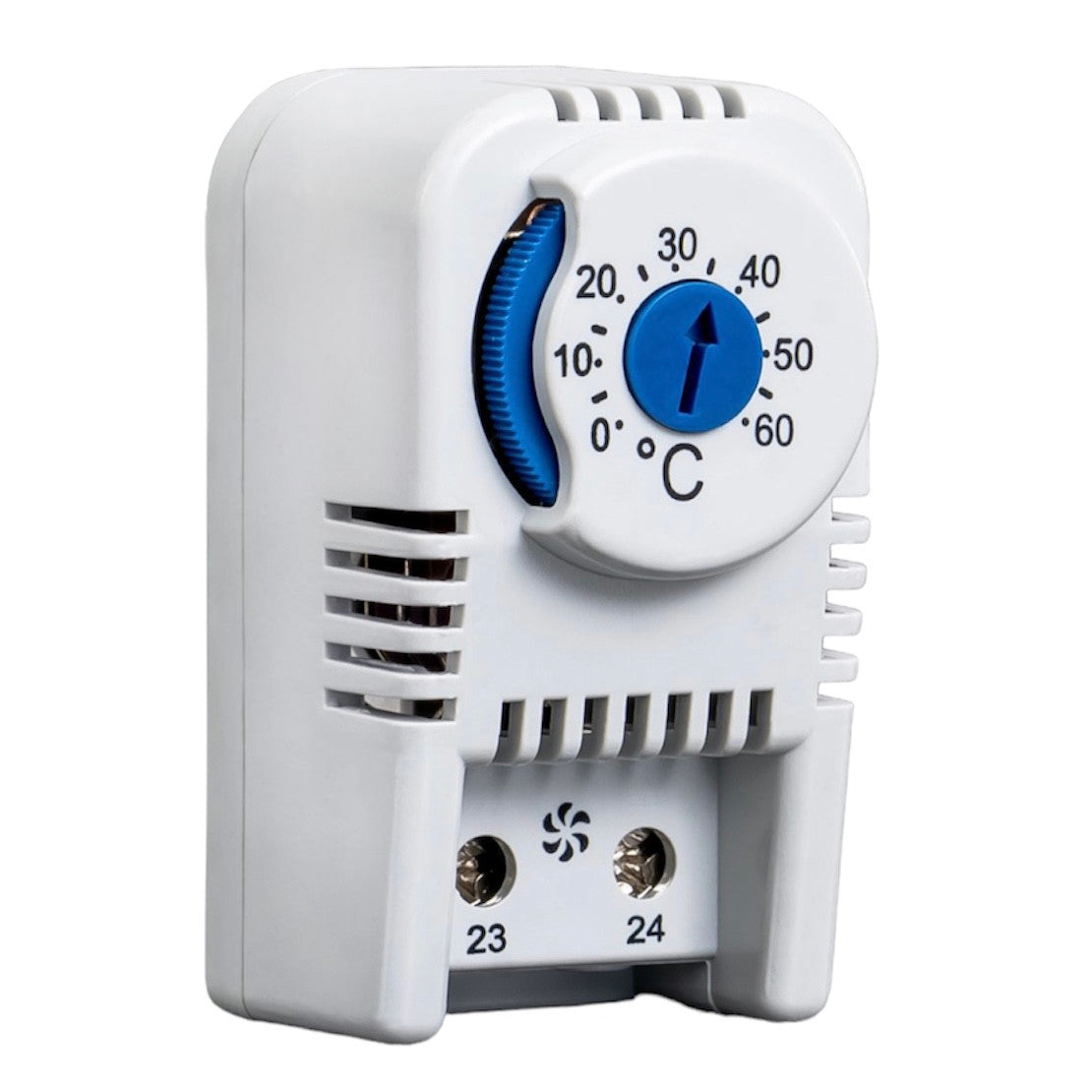

Panel thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for DIN rail mounting for fan connection or signaling when the temperature rises above the set level, normally one open contact (NO contact) PTVT, 2p, screw connections, bimetal thermostats from Plastim.
These thermostats are used in systems that maintain a set temperature with cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals, and other equipment installed outdoors or in uncooled spaces.

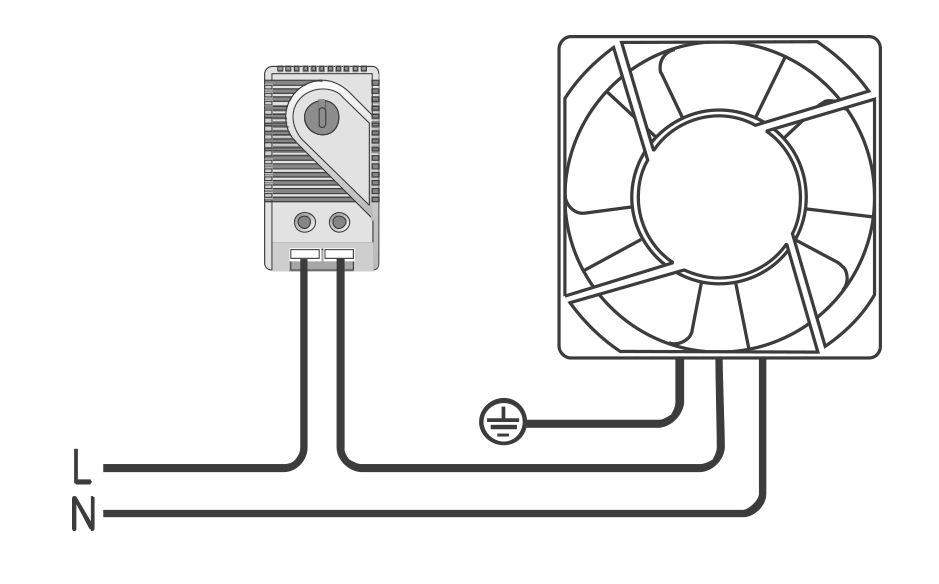

They are used to connect fans, coolers/air conditioners.
Features |
PTHT |
Type contact |
NO |
Setpoint range |
0-60°C |
Potentiometer color |
Blue |
250V AC / 120V AC |
15 (2)A |
Sensor type |
Bimetal |
Contact type |
Unexpected Action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic |
UL94 V0 ABS Flame retardant |
Protection rating |
IP20 |
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45/+80°C |
Installation |
DIN rail 35 mm |
Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
