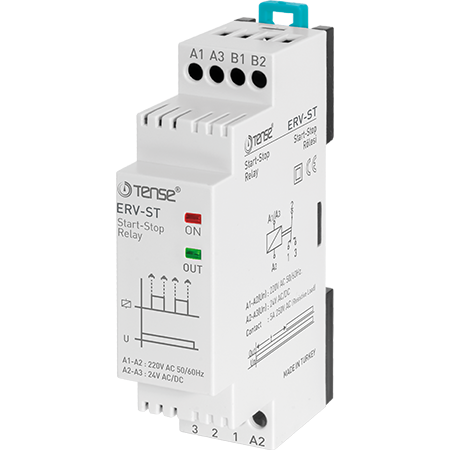

Bistable electronic pulse relay/start-stop relay, memory relay, pulse/impulse switching rod with 1 switching contact, 150V - 260V AC 50/60Hz TENSE (Turkey)

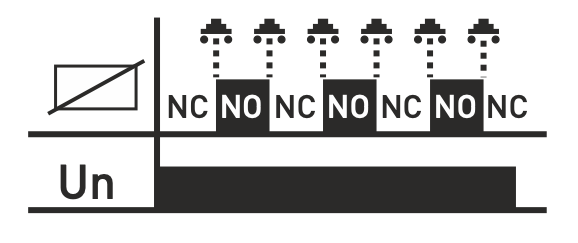

With the bistable electronic pulse relay, lighting or other equipment can be turned on or off at different points using momentary (bell) control switches that are connected in parallel.

An important difference between this relay and its competitors is the safer usage. It is not necessary to supply 220/230V to the relay inputs via the push button - simply short the push button contacts. This eliminates the risk of the user being electrocuted when pressing the button.

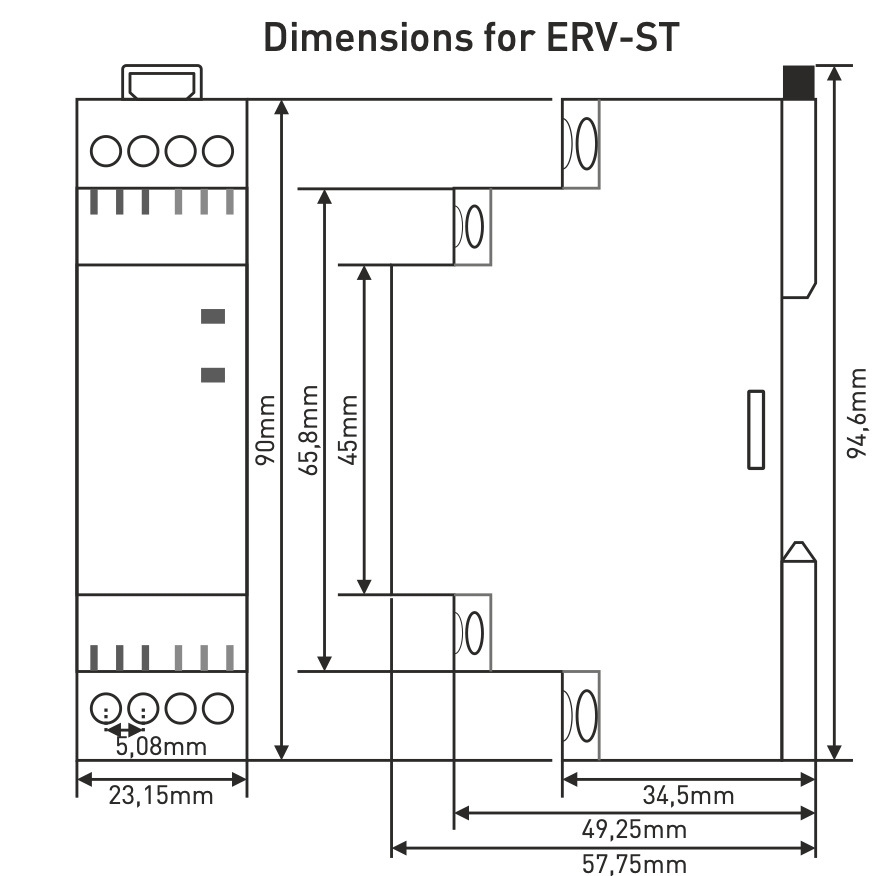

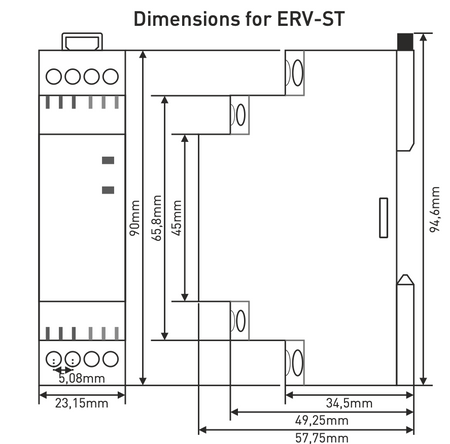

For electrical pulse/button switching, usable in combination with any number of buttons. Dimensions 1 modular unit

Thanks to the ability to connect a large number of push buttons that are wired in parallel with two wires, cross switches can be replaced and the cable layout can be simplified.

The pulse relay is mounted on a standard 35 mm DIN rail.
