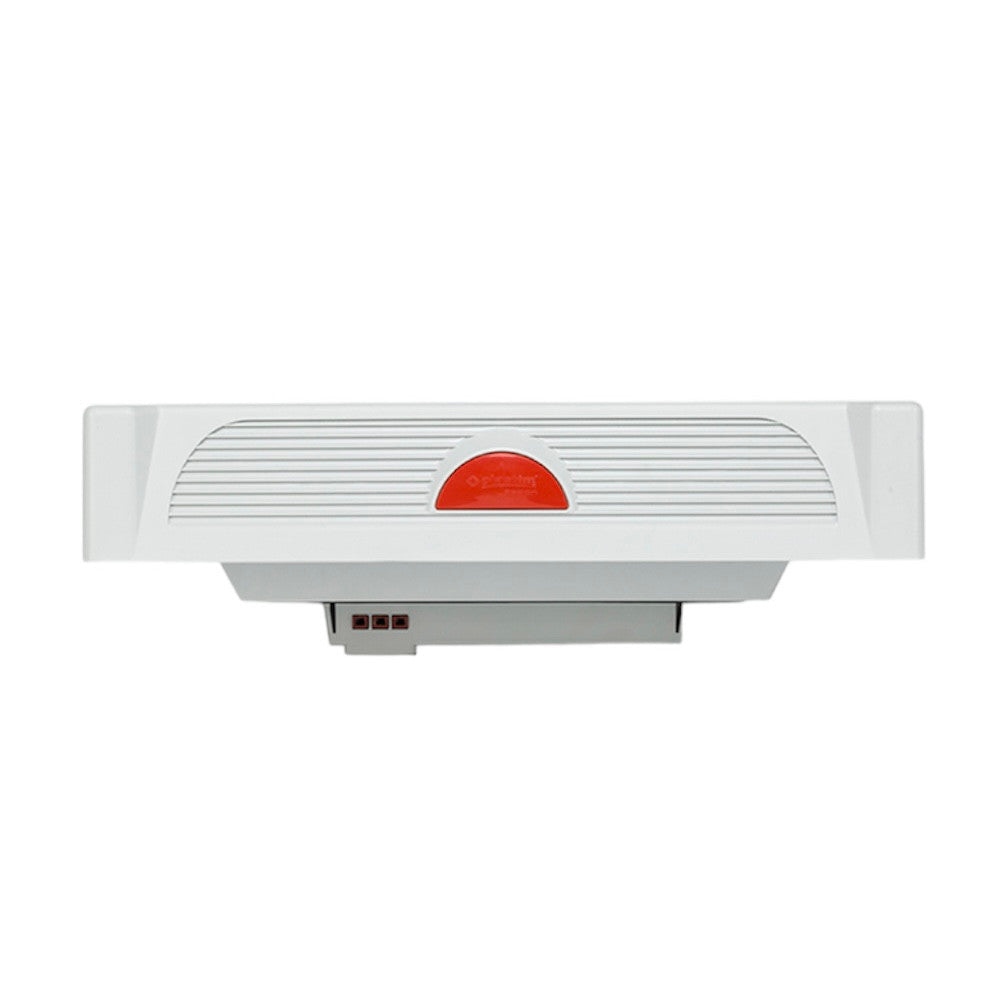

Fan in housing for installation on the roof of the control panel, PTS5500, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a distributor or automation panel and is usually used with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, so that excess warm air can be discharged from the cabinet volume as efficiently as possible.
Although the fans have the same external dimensions, they differ in the volume of the expelled air and the noise level.
- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178 mm
- Air volume: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 h
- Operating voltage: 220-230 VAC, 50/60 Hz
- Power consumption: 0.26/0.34 A
- Power: 58/75 W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Flow direction: The airflow is directed from inside to outside the cabinet
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic: UL94 V0 ABS Flame retardant
- Sealing: Polyurethane seal
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: Quick Clip-on
For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
