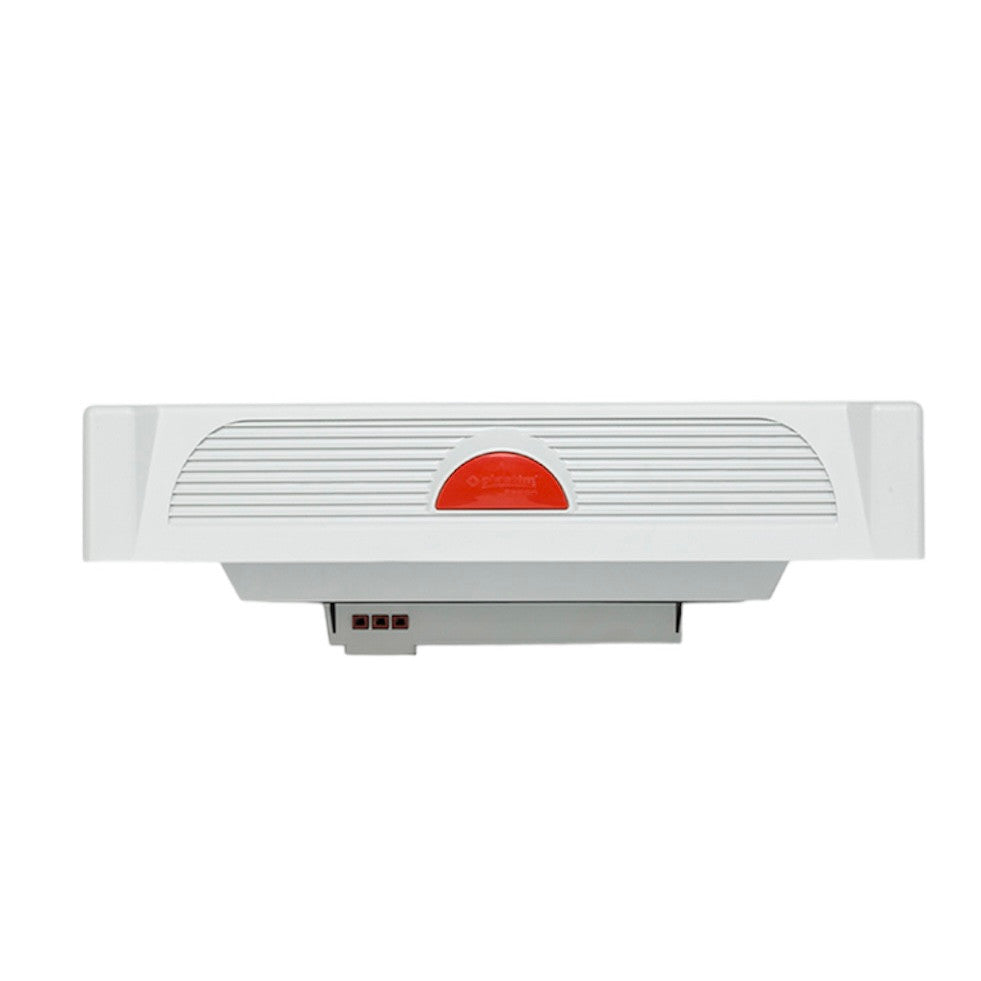

Duct fan, control panel fan, 970m3/h, 230VAC, 364x364x107mm, IP54, PTS6000
Failed to load pickup availability
Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email
Payment upon delivery - payment according to the payment instructions to the driver of the transport company
Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.
By invoice - this payment option is for partners who have concluded a framework agreement with our company.
If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.
In the event of a complaint, there will be no charges for returning goods.
Fan in housing for installation on the roof of the control cabinet, PTS6000, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a distribution board or automation panel and is usually used in combination with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, allowing excess warm air to be expelled from the cabinet volume as efficiently as possible.
Although the fans have the same external dimensions, they differ in the volume of air expelled and the noise level.
- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178 mm
- Air volume: 970 m3/h
- Noise level: 72 (73) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 h
- Operating voltage: 220-230 VAC, 50/60 Hz
- Power consumption: 0.38/0.44 A
- Nominal power: 85/90 W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Flow direction: The airflow is directed from inside to outside the cabinet
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic: UL94 V0 ABS Flame retardant
- Sealing: Polyurethane seal
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: Quick Clip-on
For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
