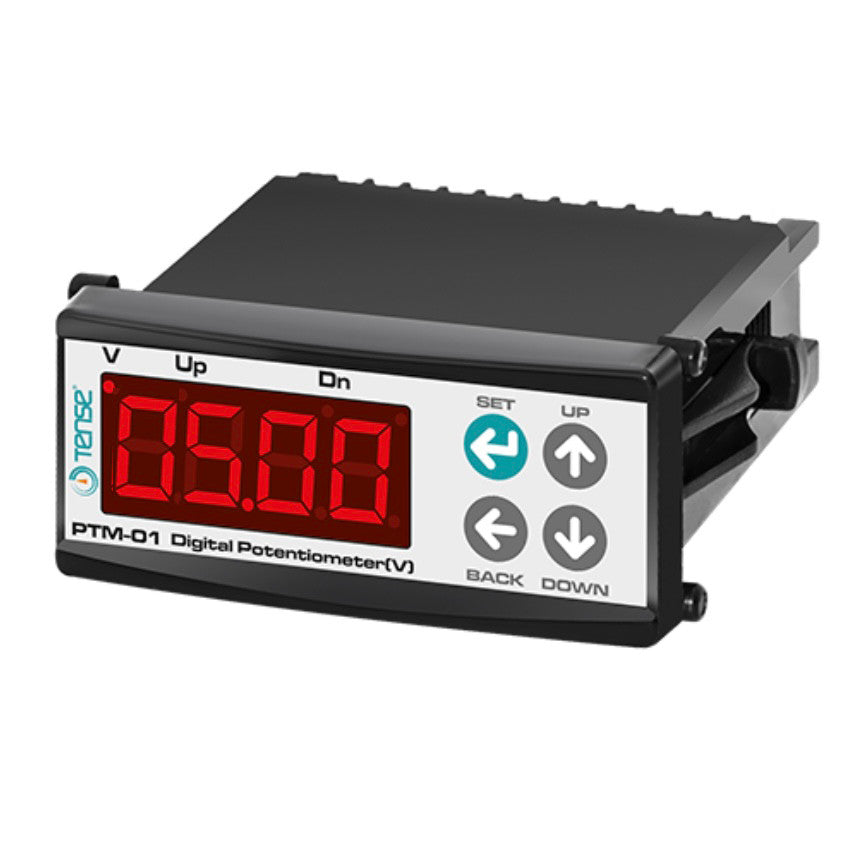

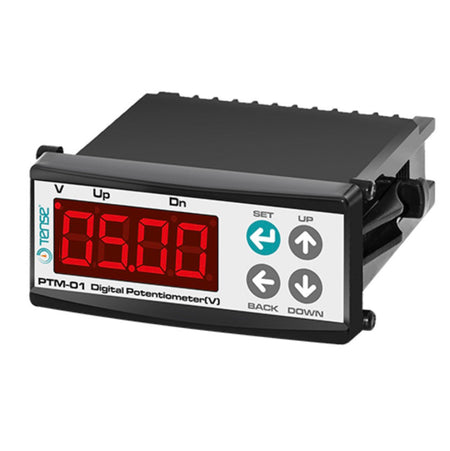

Digital potentiometer, 0-10V voltage source

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

Digital potentiometers are control devices that produce an analog output between 0-10V.

• Microprocessor-based
• Analog output: 0-10V
• Menu input and control of analog output via keys on the front

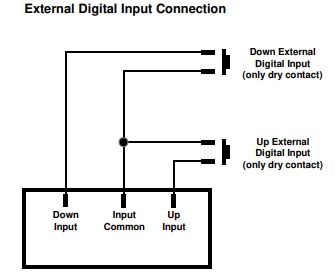

• Control of the analog output via digital inputs
• Adjustable upper and lower scale level
• Adjustable upper and lower limits for SET
• Separate function selection for the front keys and digital inputs for controlling the analog output
• Password protection
• SECU setting for enabling/disabling the SET setup menu
• High accuracy
• EEPROM memory to store settings
• Simple connection with plug-in connectors

TECHNICAL SPECIFICATION

• Dimensions: 35x77mm
• Panel cutout: 29x71mm
• Display: 4 digits 7 segments
• Analog output: 0-10V or 4-20mA (must be specified when ordering)
• 0-10V load impedance: >5K
• 4-20mA max. Voltage: <10V
• Resolution: 2mV (0-10V), 4μA (4-20mA)
• Accuracy: ±%1; (Overfullscale)
• User operation: Via up/down buttons on the front panel or up/down digital inputs
• Digital inputs: Only dry contact input
• Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
• Power consumption: < 6VA
• Humidity: 80% up to 30oC, then linearly decreasing to 50% at 50oC (non-condensing)
• Height: < 2000 m
• Protection class: IP20
• Operating temperature: 0 .. 50 oC
• Storage temperature: -10oC ... 60oC (no ice formation)
• Weight: < 0.5 kg
