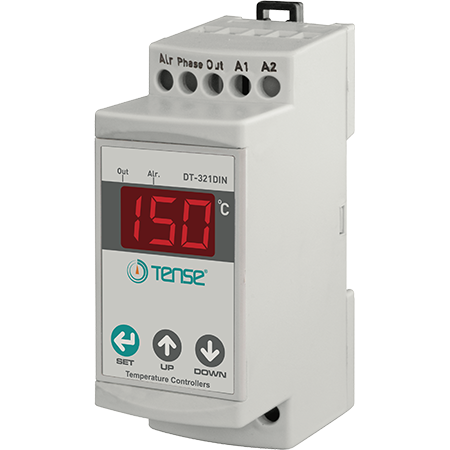

2-point temperature controller / thermostat for rail mounting with external sensor. ON-OFF control mode, measuring range -30ºC ...+150ºC (manufactured in Turkey, TENSE) DT-321DIN
Thermostat controller with external sensor
The DT-321DIN temperature controller is characterized by its individual usability and is used to control heating or cooling devices. Alternatively, the DT-321DIN can also simply serve as a reading device.
Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial installations.
Type of sensor: NTC
Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A
Optional heating and cooling function
- Hysteresis
Adjustable ON/OFF timers for OUT output in case of sensor failure
- Protection against compression by adjustable shutdown times
Upper and lower limits for SET and ALARM settings
Adjustable separate hysteresis for SET and ALARM settings
Delay for OUT in cooling mode
EEPROM memory to store settings
Password protection
High precision
Delivery scope:
1x DT-321DIN temperature controller
1x NTC (sensor)
1x user manual (English)
This simple temperature controller can be used with the three types of sensors presented on our website:
- Type 1 reference: -30°C to 105°C - SKU: NTC-105 (included)
- reference to type 2: -30°C to 150°C - SKU: NTC-150
- reference to type 3: -30°C to 150°C (with nut and thread) - SKU: NTC-S-150
Features:
Power supply voltage: 100 to 240 VAC, 50/60 Hz
Power consumption: < 6 VA
Type of sensor: NTC
Temperature measuring range: - 30 °C to + 150 °C
Resolution: +/- 1 °C
Measurement accuracy: +/- 3% (°C), over the entire measuring range
Output: relay (NO + NC), 250V AC, 2A
ALARM output: relay (NO + NC), 250V AC, 2A
Operating temperature: 0°C to 50°C
Heating/cooling: Ht (heating), Cl (cooling); selectable
Cutout front panel: 66 x 36 mm
Display: 3-digit - 7-segment
Product type: temperature measuring instrument
Protection class: IP00
Brand: Tense
Country and region of manufacture: Türkiye
Power supply voltage: 100V - 240V ~
Type of connection: screw terminals
Mounting: DIN rail
Temperature measuring range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, ohmic load
Type of sensor: NTC sensor
Shipping weight: 0.12 kg
Item weight: 0.10 kg

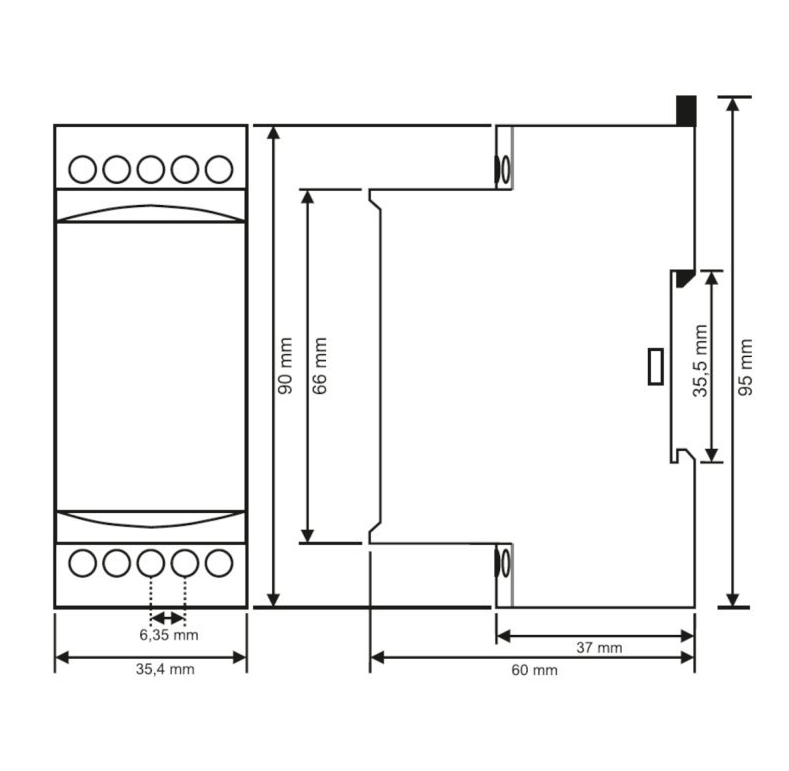

Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm
