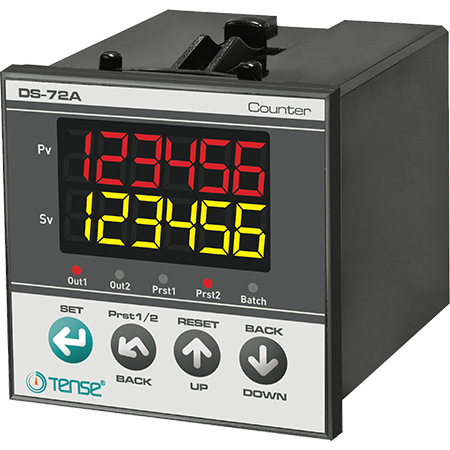

Electronic pulse counter / pulse counter

Counter relays are designed to perform various tasks depending on the input pulses.

• Counter with two contacts for forward/reverse

• Counting switch, proximity switch, and incremental encoding input

• Password protection

• Selectable input frequency

• Calibration constant; 0.00001.....9.99999

• Selectable decimal point; 1. ..... 5. digits

• 7 input/10 output function options

• Add "OFFSET" to the counter value

• PRESET1: Absolute/relative option

• OUT: Latch or pulse 0.1.....999.9 seconds

• Load counter value and OUT status at last power interruption after first activation

• RESET via front panel

• EEPROM memory to store settings
