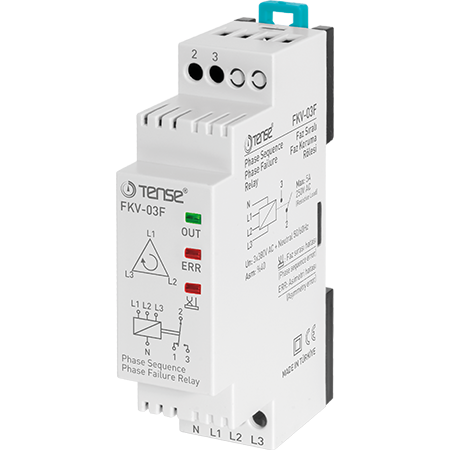

Phase control relay FKV-03F

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

Phase protection relays are designed to protect three-phase loads from damage caused by line voltage. Unbalance: ~40% Phase sequence control Technical specifications Operating voltage (Un): 3 x 380 V AC in neutral Operating frequency 50/60 Hz Operating power <6 VA Operating temperature Tolerance (unbalance) -20 °C....+55 °C ~40 % Contact current 5 A 250 V AC Resistive load Display 3x LEDs DIN rail mounting Weight <150 g Operating altitude <2000 m Cable cross-section 2.5 mm²
