Vendor: TENSE

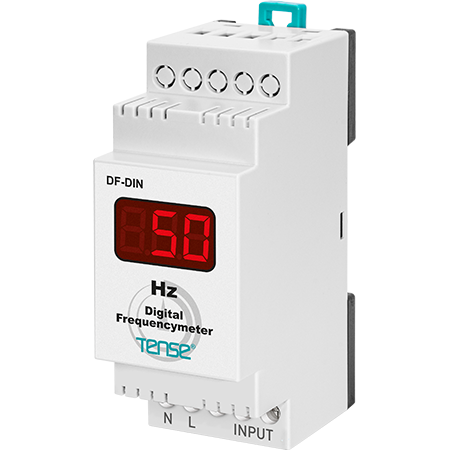

Frequency counter DIN frequency meter digital 1-400Hz panel meters

Barcode: DF-DIN
Regular price
€40,12
Regular price
Sale price
€40,12
Out of stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

Highly accurate True RMS class frequency meter for installation

DIN rail. DF-DIN TENSE

The DF-DIN is designed to monitor the frequency range (from 1 Hz to 400 Hz) between phase and phase conductor or phase and neutral conductor.

The instrument is used to monitor frequency stability in single-phase and three-phase systems, which is especially important for industrial equipment, generators, transformers, and power supply systems.

With a three-digit LED display, the frequency meter offers clear and fast data display. The compact housing, easy installation, and high accuracy make the Tense DF-DIN the optimal solution for panel mounting.

Application areas

Electrical switchboards

Industrial switchboards

Backup power systems

Generator sets

Frequency control in laboratories and test facilities

Technical Specifications

Operating voltage: 140-280 V AC

Operating frequency: 50/60 Hz

Power: <3VA

Operating temperature: -20 °C ..... + 55 °C

Display: 1 x 3

Measuring range: 1 Hz - 400 Hz

Connection: terminal connection

Cable diameter: 2.5 mm2

Weight: 135 g

Operating altitude: <2000 m

Mounting: on DIN rail

Online betaling met kaart – na het afronden van uw bestelling wordt u doorgestuurd naar het betaalportaal. Een betalingsbevestiging ontvangt u per e‑mail.
Betaling bij levering (onder rembours) – u betaalt het bedrag aan de koerier van de bezorgdienst.
Betaling via bankoverschrijving – u ontvangt uiterlijk de volgende werkdag een pro forma factuur per e‑mail, waarop het bankrekeningnummer vermeld staat dat u bij de betaling moet gebruiken.
Betaling op factuur – deze betalingsoptie is beschikbaar voor partners die met ons bedrijf een raamovereenkomst hebben afgesloten.
Als u gebruik wilt maken van de laatste twee opties, neem dan contact op met onze verantwoordelijke, die u instructies zal geven over hoe u een factuur met of zonder btw kunt ontvangen.


De elektrische toestellen die wij leveren, voldoen aan hoge kwaliteitsnormen, hebben 24 maanden garantie en zijn conform alle EU‑vereisten.
Wij bieden ook gratis levering (bij bestellingen vanaf €100), een flexibel systeem van kortingen en promoties. De technische kennis en ervaring van onze medewerkers stellen ons in staat hoogwaardig advies te bieden en indien nodig alternatieven aan te bevelen voor elektrische producten.

Electrical equipment that we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.

In case of a complaint, the return of goods is not charged.
