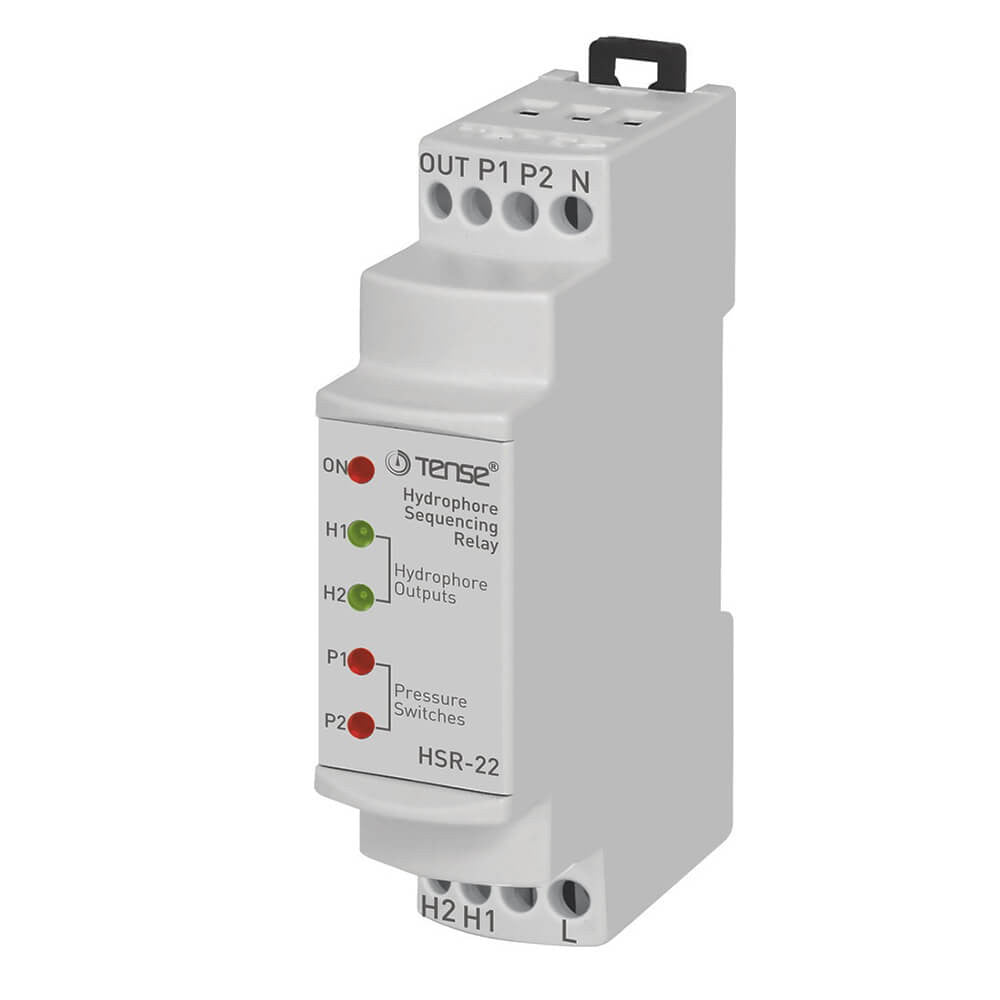

Hydroforese sequential relay

General information

Hydrofoil shift relays are designed to

to start when needed and operate simultaneously.

Use of the device and operating principle

The order of the hydrofoils is as follows: (H1) - (H2) - (H3) and (H1-H2) -.

(H2-H3) - (H1-H3). It activates the hydrofoils on the same number,

where the switches are closed and keeps them running for a period of "t". At the end of time "t", the next hydrofoil or group of hydrofoils is activated and

t continues in this way. Deactivates the hydrofoils on the same number

with the switches open.

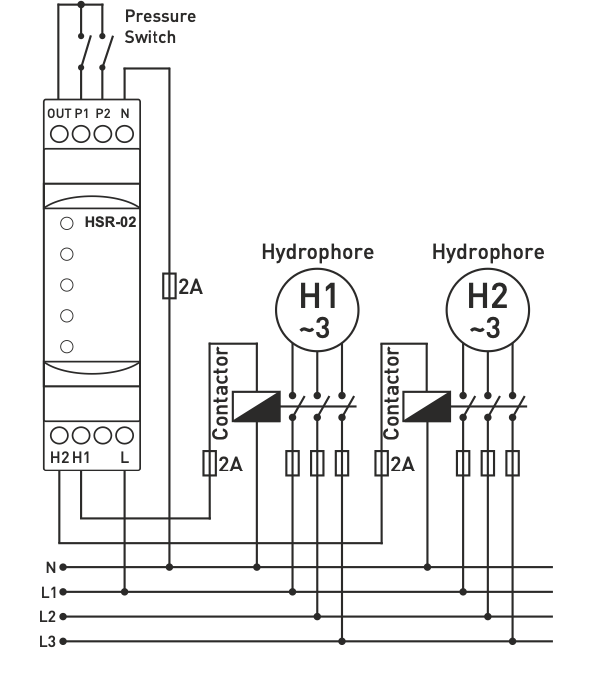

Note: Do not connect power to the inputs and outputs (P1, P2, P3)

of the pressure switch.

Care

Turn off the device and unplug it from the power outlet. Clean the device's cone with a cotton swab. Do not use wires or chemicals that can damage the device.

that can damage the device. After cleaning, check if the device is working.

Warning

Use the device according to the user manual.

Do not use the device in a damp environment.

The device contains a switch and a circuit breaker.

Place the switch and the circuit breaker close to the device so the user can easily reach them.

Mark the switch and the circuit breaker as

release connector for the equipment.

Technical specifications:

Operating voltage (Un).....: 150-250V AC

Operating frequency.......: 50/60 Hz.

Operating power..............: <6VA

Operating temperature....: -20°C.... +55°C

Time(t)......................: 10 minutes

Display......................: HSR-02=5 x LED, HSR-03=7 x LED

Connection type............: Clamp connection

Contact.....................: 3A/250V AC (ohmic load)

Number of hydrophones........: 2 (HSR-02) and 3 (HSR-03)

Cable diameter..............: 1.5mm² (HSR-02), 2.5mm² (HSR-03)

Weight..........................: Max. 220g.

Mounting..........................: Vertical panel mounting or DIN-rail mounting.
