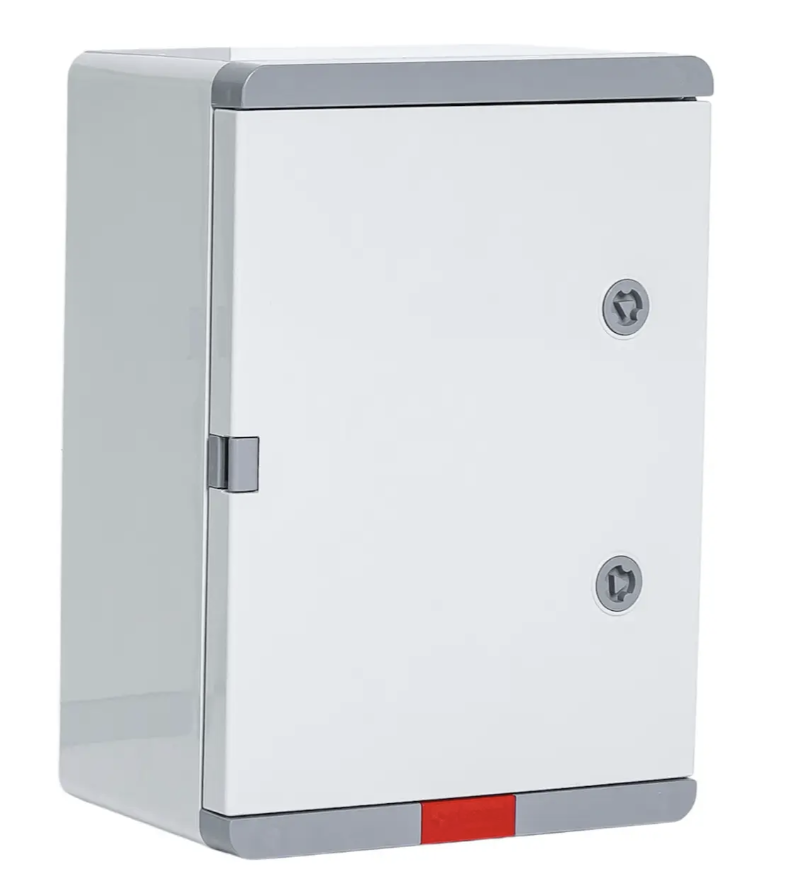

Shock resistant sealed plastic enclosure with IP67 protection with mounting panel, Plastim (Turkey).
The IP67 rated plastic housing offers several key advantages, especially for use in harsh environments:
High protection against moisture and dust:
The IP67 rating means the enclosure is fully protected against dust and can withstand brief immersion in water up to 1 metre deep for 30 minutes, making it ideal for installation in damp or dusty locations – for example, outdoors, in industrial areas or near bodies of water.
Corrosion resistance:
Unlike metal panels, plastic is not subject to corrosion, which is particularly valuable in aggressive environments – near the sea, in chemical plants, or in companies with high humidity.
Easy installation:
The plastic housing is much lighter than its metal counterpart, which simplifies transportation and installation, especially in hard-to-reach places.
Dielectric properties:
Plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.
UV resistance:
If a special ultraviolet plastic is used, the shielding will retain its properties for a long time, even with continuous exposure to sunlight.
Technical features
Resistant to: chemicals, alkalis, oils, salts, etc.
Nominal voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35 °C + 65 °C
Material: HB ABS
Mounting plate: 1 mm galvanized steel
IP protection: IP67
IK protection: IK08
Color: RAL7035 gray
Examples of applications
Damp and dusty environments
Electrical shielding in car washes, swimming pools, water parks, fountains.
Mounting boxes for operating irrigation systems and pumping stations.
Installations in food processing factories where wet cleaning and disinfection are carried out regularly.
Industrial installations
Protection of equipment in dusty workshops, concrete plants and metallurgical plants.
Installs shielding in areas with aggressive environments (e.g. chemical plants).
Maritime and port infrastructure
Protection of electrical wiring on platforms, in ports and on ships.
Use in coastal areas with high humidity and exposure to salt air.
Construction sites
Temporary power distributors for supplying power to construction machinery in harsh weather conditions.
Underground installations
