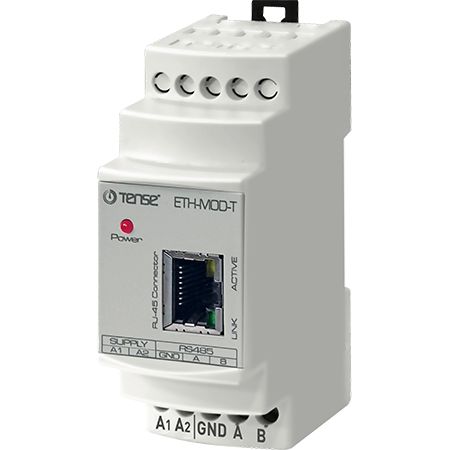

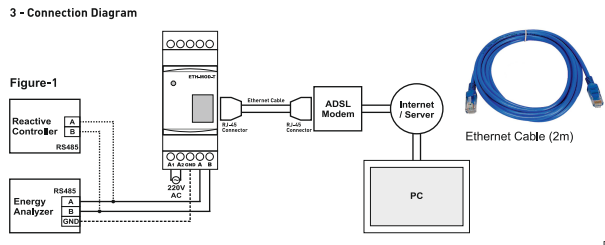

RS485 to TCP IP/ ETHERNET / WAN / LAN protocol converter. Gateway protocol converter for connecting RS (MODBUS) port devices to a PC via a local network or internet connection. ETH-MOD-T. TENSE Turkey The ETH-MOD-T protocol converter manufactured by TENSE Turkey is a compact gateway for connecting any device with an RS-485 port to a local network, SCADA systems, OPC internet servers via modem.
The RS-485/Ethernet gateway has a number of features that make it suitable for use with most analogs (e.g., ET-485, VTR-E, ET-485):

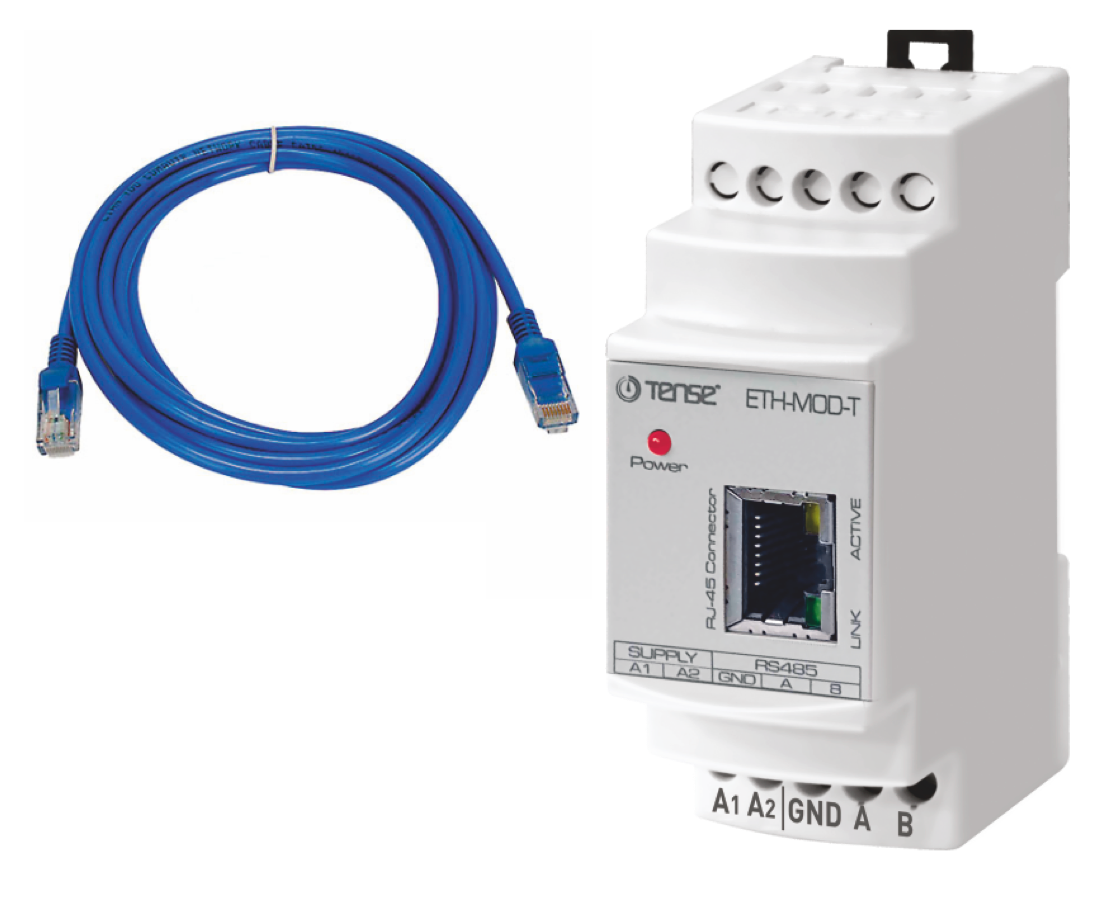

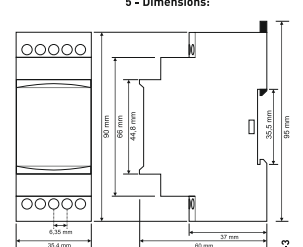

Compact dimensions of the protocol converter - only 2 modules wide - 35 mm; Quick installation of the gateway on a standard DIN rail; The converter comes with an Ethernet cable (2 m); Power supply voltage 220 V; Resistant to a wide range of power supply fluctuations - 85 V ... 300 V Connection of up to 32 devices via RS485 / ModBus; Light indication for power / network connection / communication activity; High data transfer rate - up to 115,200 bps; 10/100BASE Ethernet network; Wide ambient temperature range: -20 °C ... +55 °C (usually no additional heating or cooling required); Free software for gateway installation.
|
The device only works with the MODBUS RTU protocol.
