Multifunctional time relay time range: 0.1 s - 30 h 12V-240V AC/DC

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

Multifunctional time relay (10 functions) 12V - 240V AC/DC with 1 switching contact.

The time relay is multifunctional, designed to control time processes in automation systems in production and household. This relay can be used in industrial equipment - roasting coffee or seeds, cooking meats, packaging/packing lines, but also in homes or apartments, for example, to control a fan in the toilet or the lighting on the stairs.

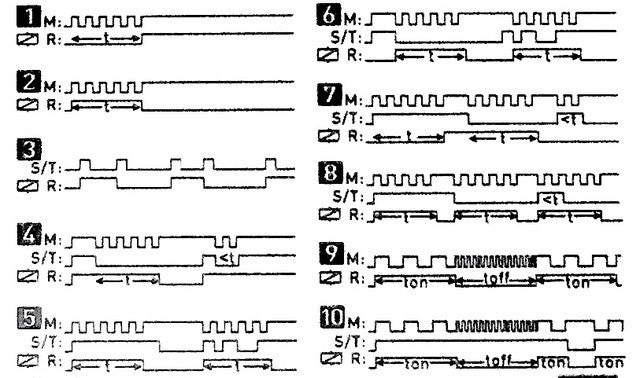

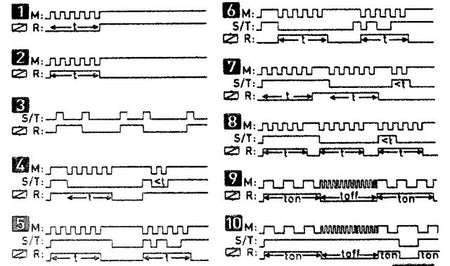

The 10 built-in time functions cover a wide range of tasks: for example, for organizing automatic ventilation processes, opening/closing windows, periodically turning on heating or ventilation, for illuminating or rotating advertising boards, in washing machines, bouncing control inputs, rotation - delay on, delay off, delay on and off at the same time, etc.

It should be noted that this time relay is also versatile in terms of performance - it can operate with AC and DC power in the range of 12 to 240 volts!

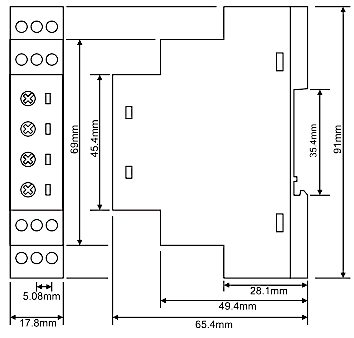

The time relay is mounted on a standard DIN rail of 35 mm.

• Bistable relay 12v 24V 48v 110v 230 AC DC
• Delayed start 12v 24V 48v 110v 230 AC DC
• Delayed return 12v 24V 48v 110v 230 AC DC
• Bite-start flashing light 12v 24V 48v 110v 230 AC DC
• Delayed start after switching and delayed 12v 24v 48v 110v 230 AC DC
• Cap-start flashing light 12v 24V 48v 110v 230 AC DC
• Delayed start after switching on and delayed return after switching off the control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
• Pulse generator 12v 24V 48v 110v 230 AC DC
• SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC
• Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC

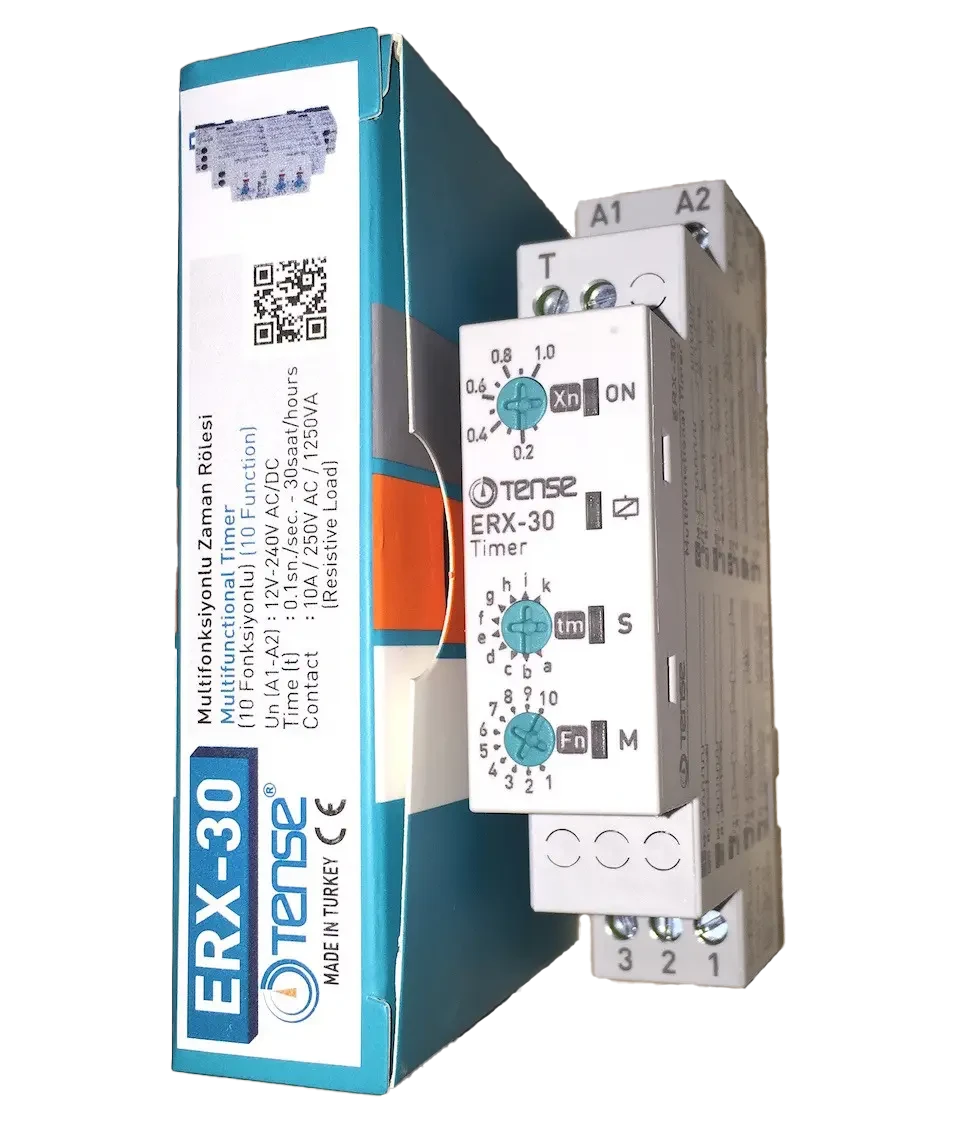

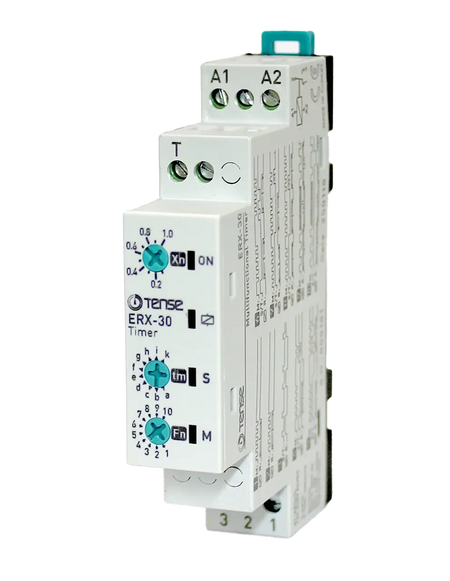

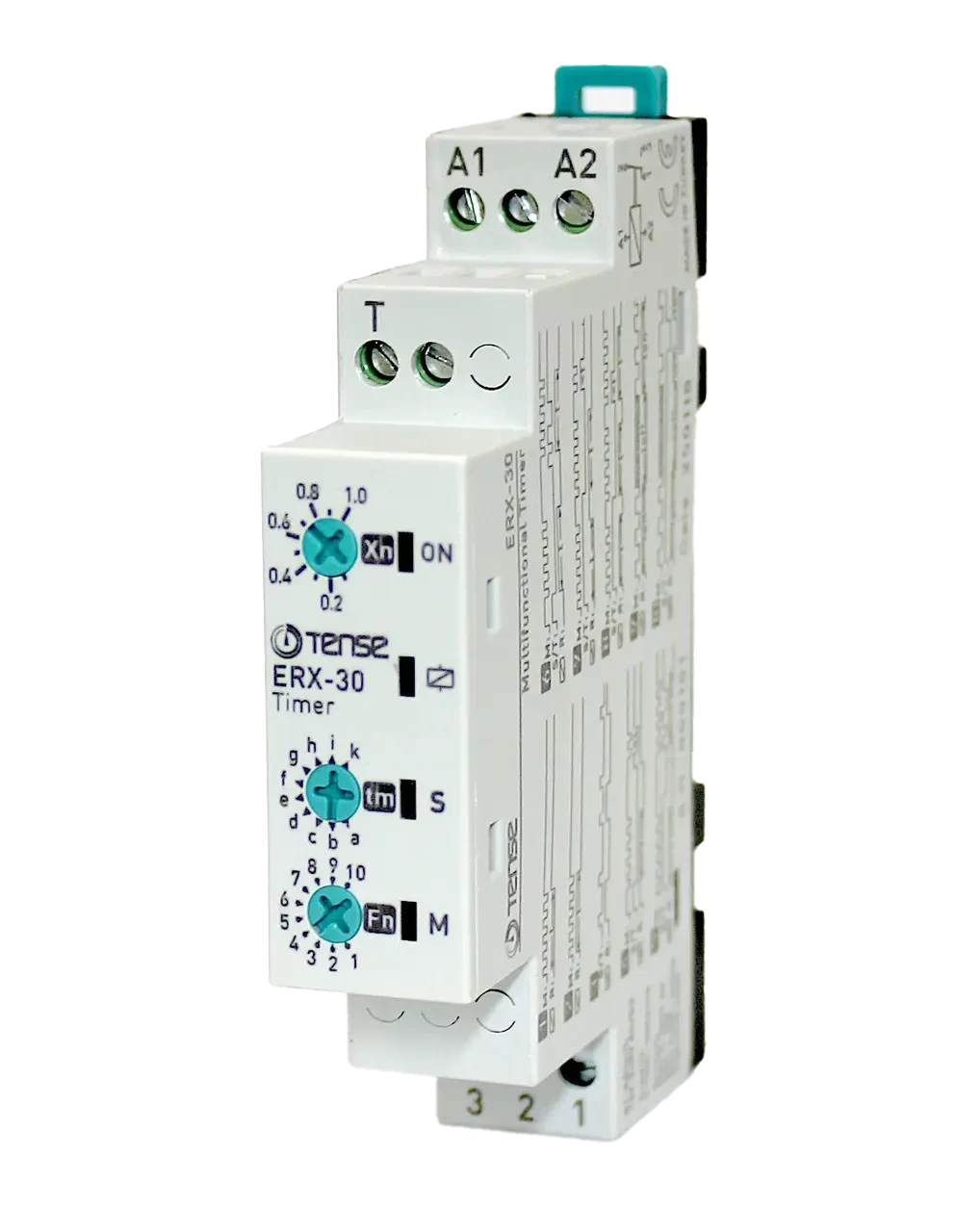

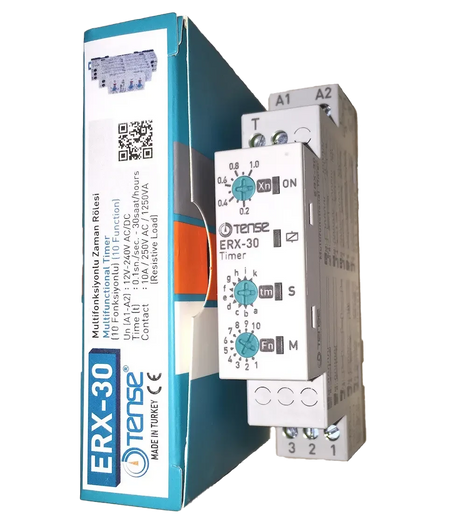

The ERX-30 universal time relay easily replaces the more expensive analogs on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
