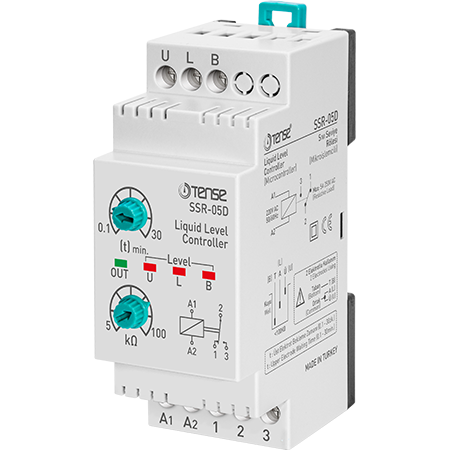

Level controller, borehole level meter with level switch timer SSR-05D TENSE
- Regular price
- €37,88
- Regular price
-
- Sale price
- €37,88
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
Control of water level in well, pit, tank, expansion vessel. Three or two level sensors can be used to pump water out of or drain the tank. Sensor sensitivity setting + response time setting. SSR-05D, TENSE
This water level relay has several important differences from other similar water level control relays presented on this website.
This relay is digital, which means it contains a microprocessor that controls the operation of the entire device. This makes it possible to implement a number of additional functions that not only increase ease of use but also extend the lifespan of the water level sensors.
1) The current between the water level sensors does not flow continuously but in pulses - this extends the lifespan of the electrodes submerged in water by more than 2 times!
2) The SSR-05D has a built-in timer for pump delay. A handy feature if the relay is used, for example, in a well (or wells) where the water level changes depending on the season - then you don't have to change the position of the upper sensor - you only need to adjust the delay time on the relay.
3) This level relay is also equipped with 3 LEDs to indicate how the water has filled the tank - upper, middle, and lower level. I agree that this is convenient if the relay is installed in the house and the tank is on the roof, in the basement, or outside.
The electrodes (liquid level sensors) are not included in the kit.
Be sure to order the water level sensors and a 2-amp circuit breaker to protect the input and output channels of this device (2 pieces).
Nominal voltage: 220 V AC,
Operating range: 150 V-260 V
Operating frequency: 50/60 Hz.
Operating power: <3 VA
Operating temperature: -10...+50
Connection: with terminal block

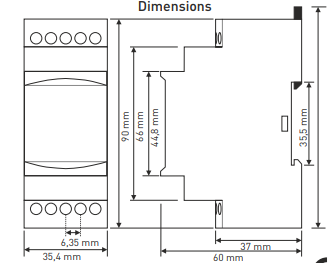

Dimensions (mm) 44x75x85
Weight: 250 g
Connection type: DIN rail + screws
|
Control of water level in well, pit, tank, expansion vessel. Three or two level sensors can be used to pump water out of or drain the tank. Sensor sensitivity setting + response time setting. SSR-05D, TENSE This water level relay has several important differences from other similar water level control relays presented on this website.
This relay is digital, which means it contains a microprocessor that controls the operation of the entire device. This makes it possible to implement a number of additional functions that not only increase ease of use but also extend the lifespan of the water level sensors.
1) The current between the water level sensors does not flow continuously but in pulses - this extends the lifespan of the electrodes submerged in water by more than 2 times!
2) The SSR-05D has a built-in timer for pump delay. A handy feature if the relay is used, for example, in a well (or wells) where the water level changes depending on the season - then you don't have to change the position of the upper sensor - you only need to adjust the delay time on the relay.
3) This level relay is also equipped with 3 LEDs to indicate how the water has filled the tank - upper, middle, and lower level. I agree that this is convenient if the relay is installed in the house and the tank is on the roof, in the basement, or outside.
The electrodes (liquid level sensors) are not included in the kit.
Be sure to order the water level sensors and a 2-amp circuit breaker to protect the input and output channels of this device (2 pieces).
Nominal voltage: 220 V AC,
Operating range: 150 V-260 V
Operating frequency: 50/60 Hz.
Operating power: <3 VA
Operating temperature: -10...+50
Connection: with terminal block
Dimensions (mm) 44x75x85
Weight: 250 g
|
