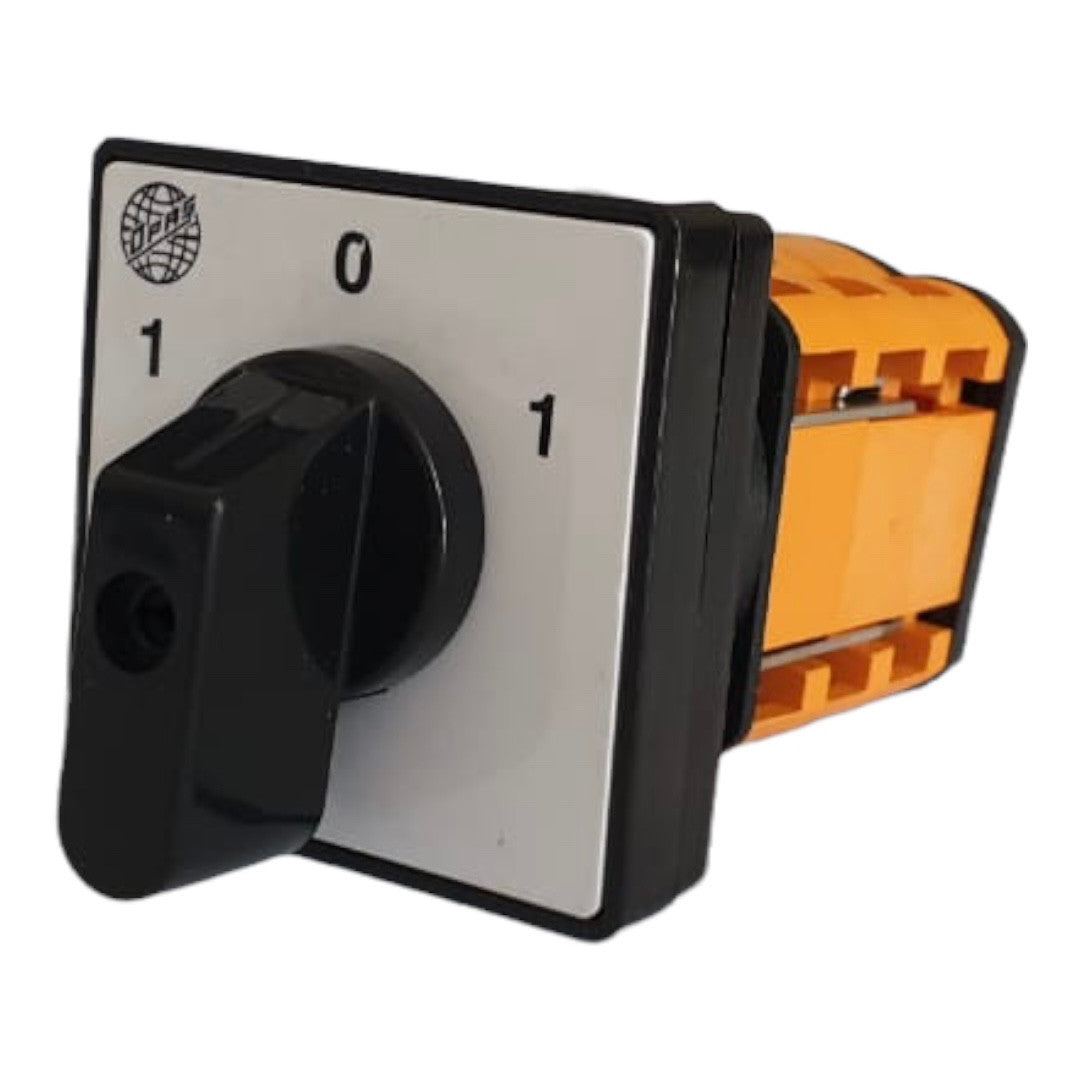

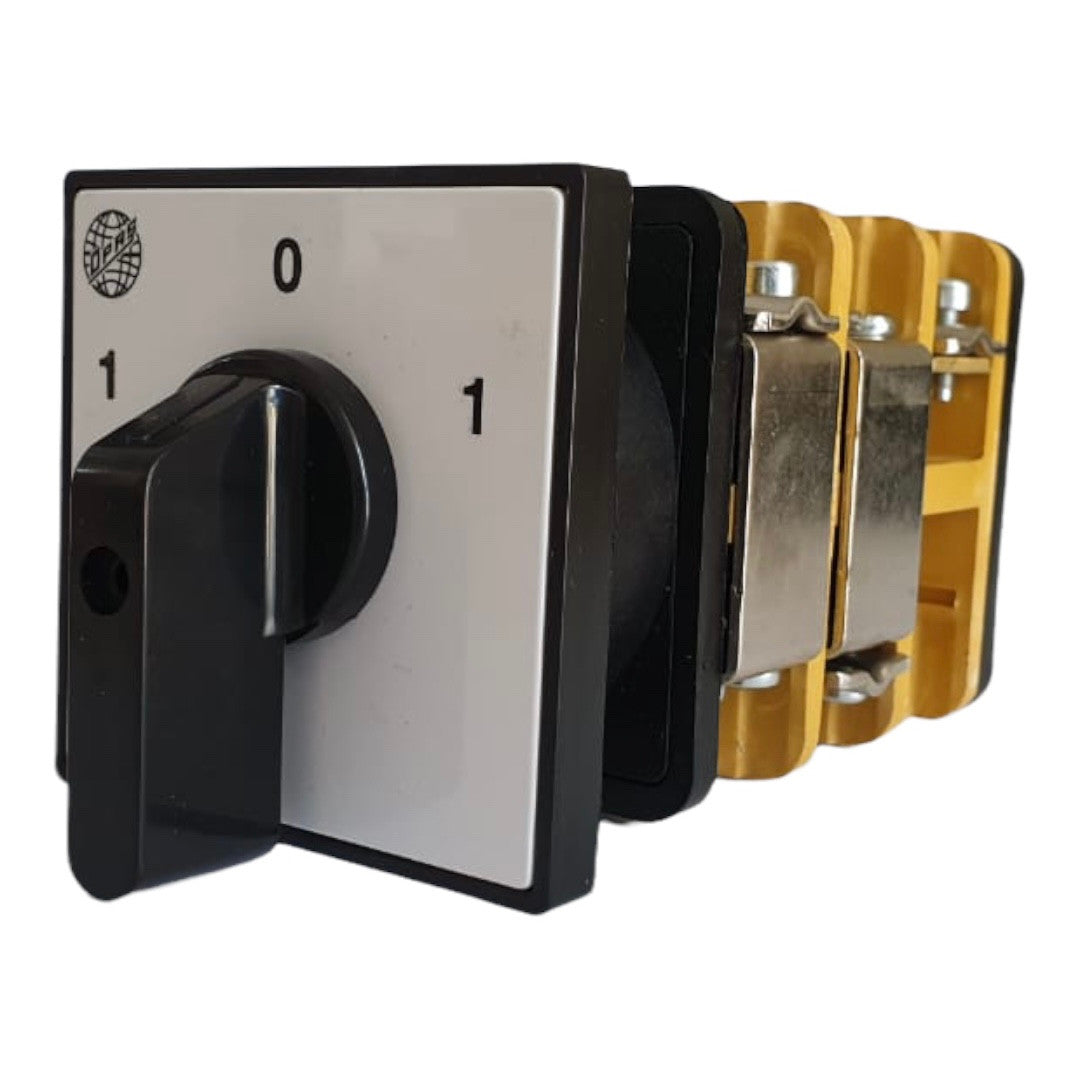

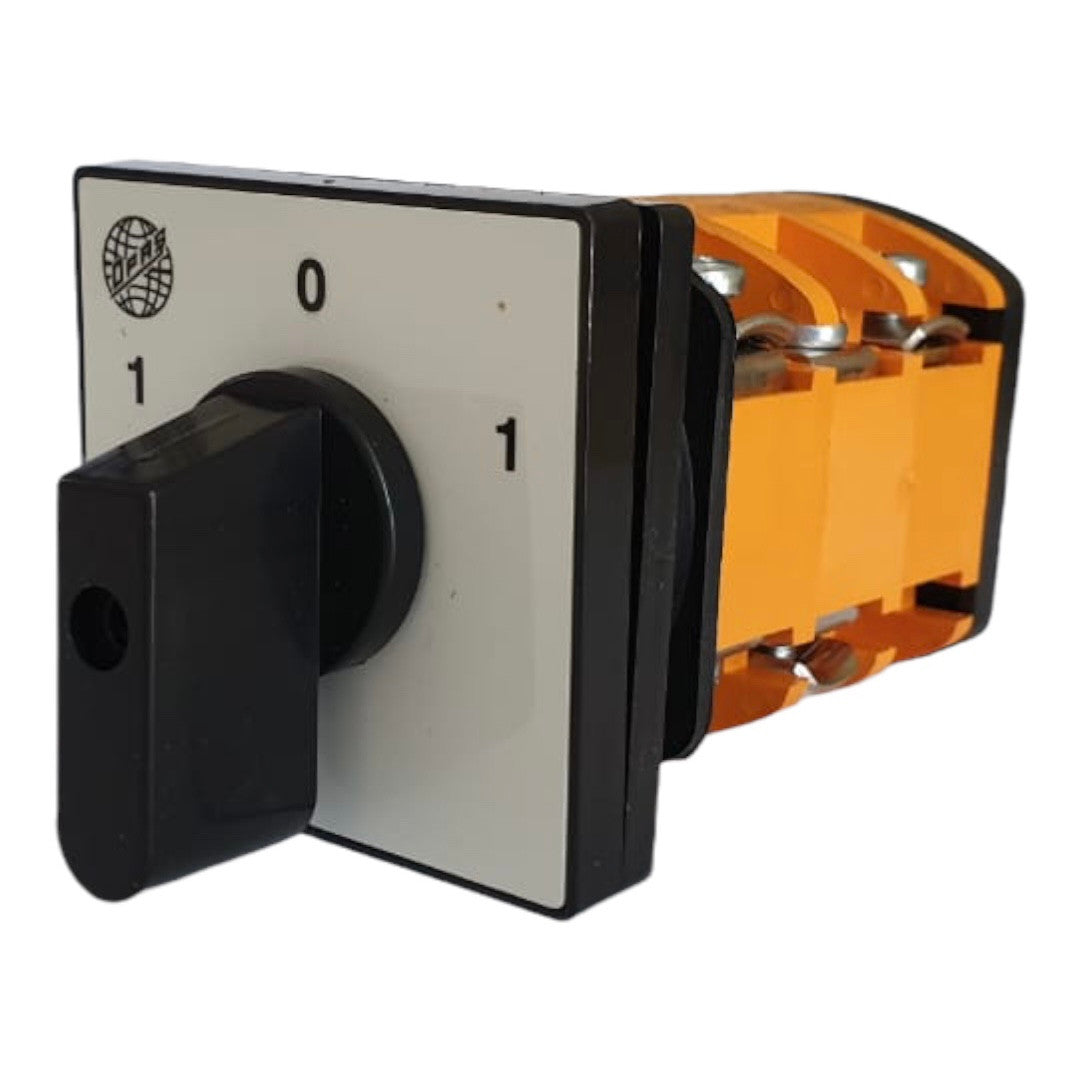

Reversing switch 1-0-1, 3-pole, 10-120A, YPT304 manufacturer OPAŞ (Turkey)

Reversing cam switch designed to change the direction of rotation of electric motors.

Package switches are designed for manually switching low-voltage circuits. They are used for creating main and control circuits, turning on and off electric motors and other low-power devices. The advantages of this series of switches are the compact dimensions and electrical and mechanical resistance.

Technical specifications

• Articulated version.
• Device type: rotary switch

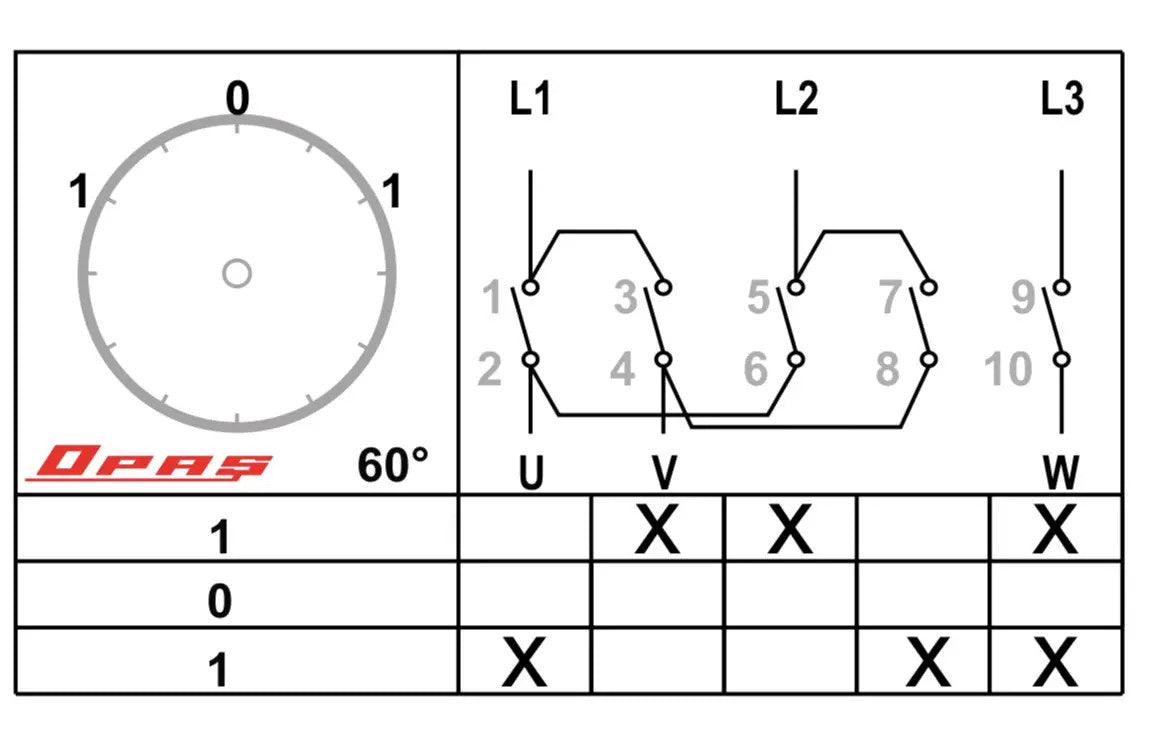

• Wiring diagram: 1-0-1 9 (reversed)
• Number of poles: 3
• Type: built-in
• Number of phases: 3-phase
• Protection: No
• Protection degree against dust and water: IP20
• Operating temperature range: -30 to +55°C
• Manufacturer.
• Country of manufacturer: Turkey
