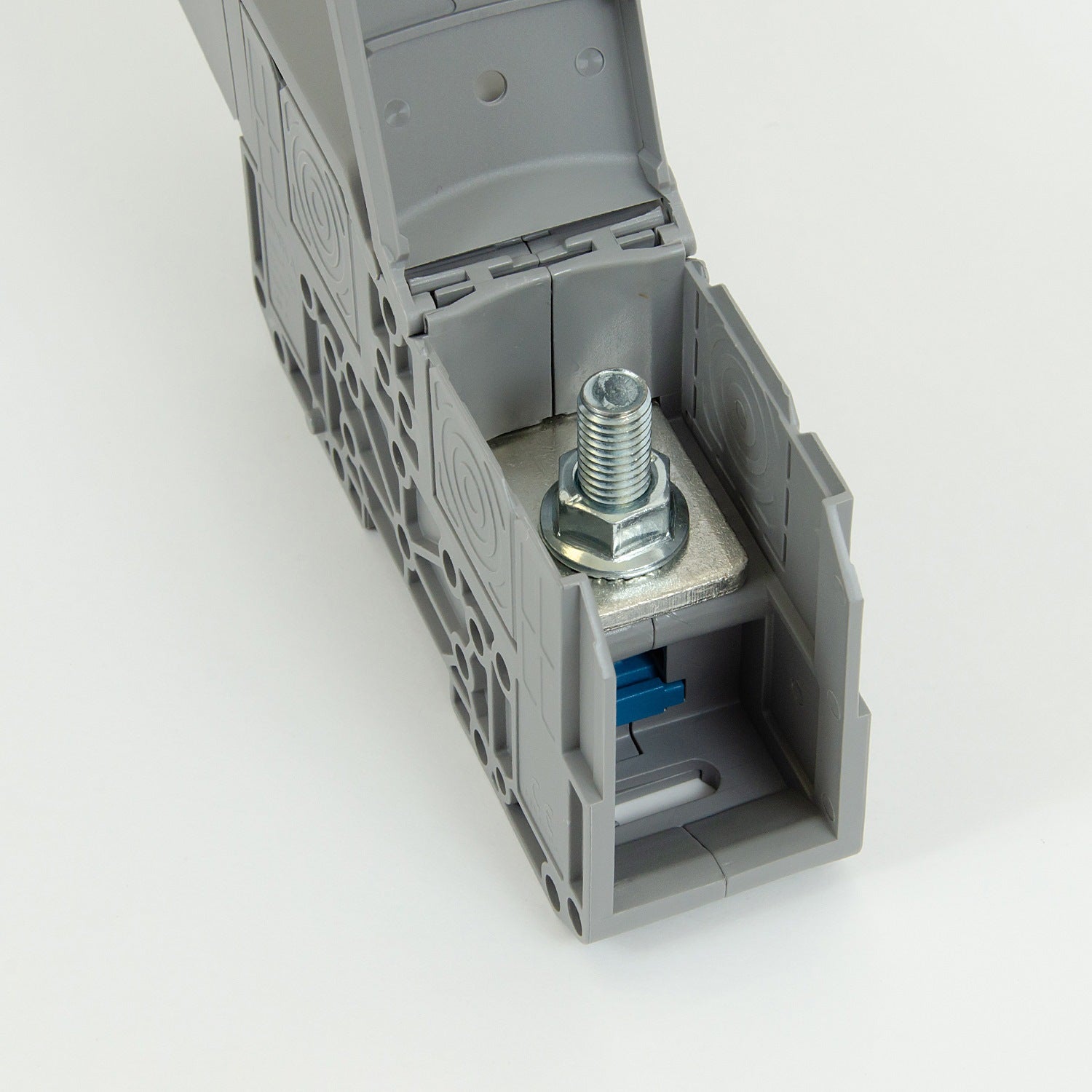

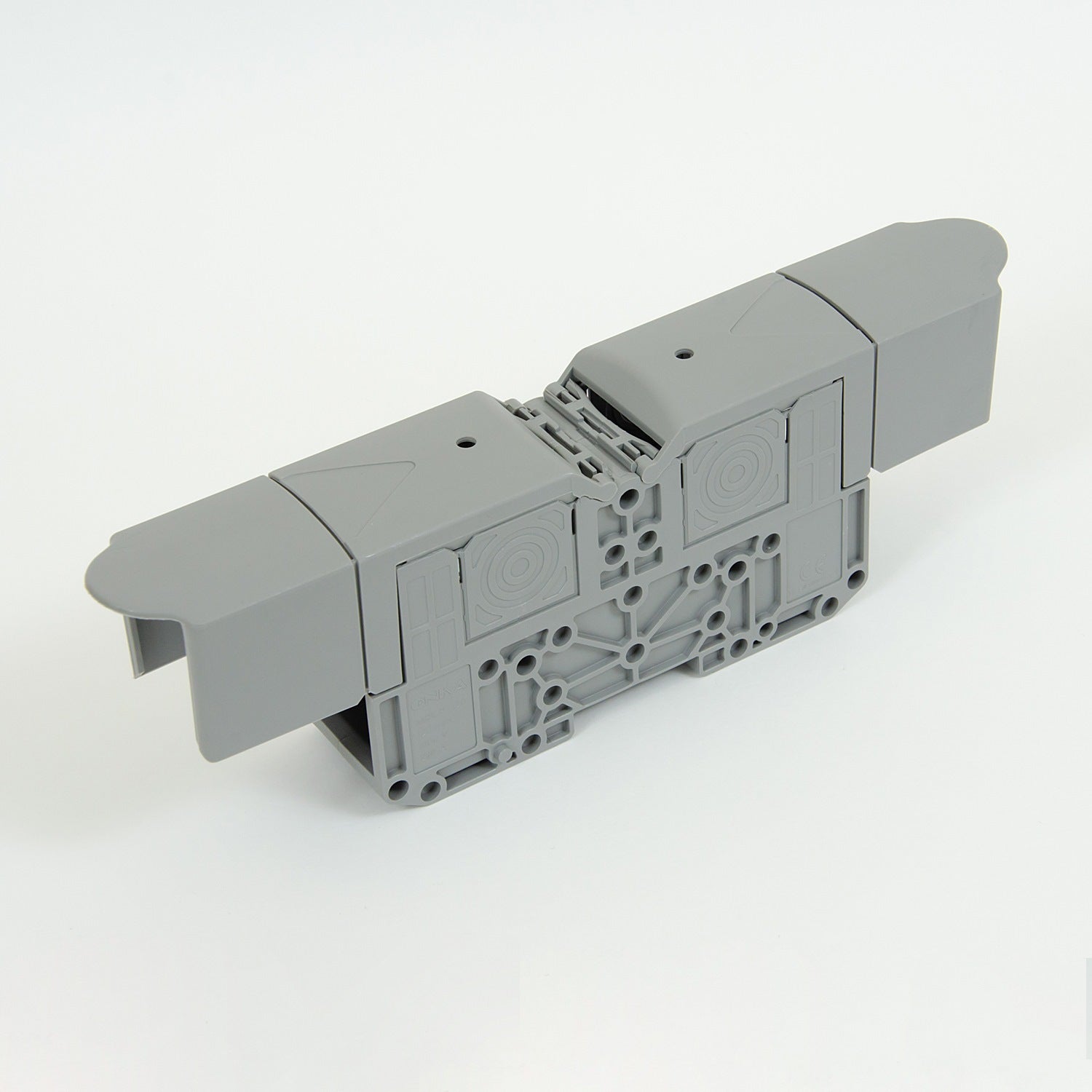

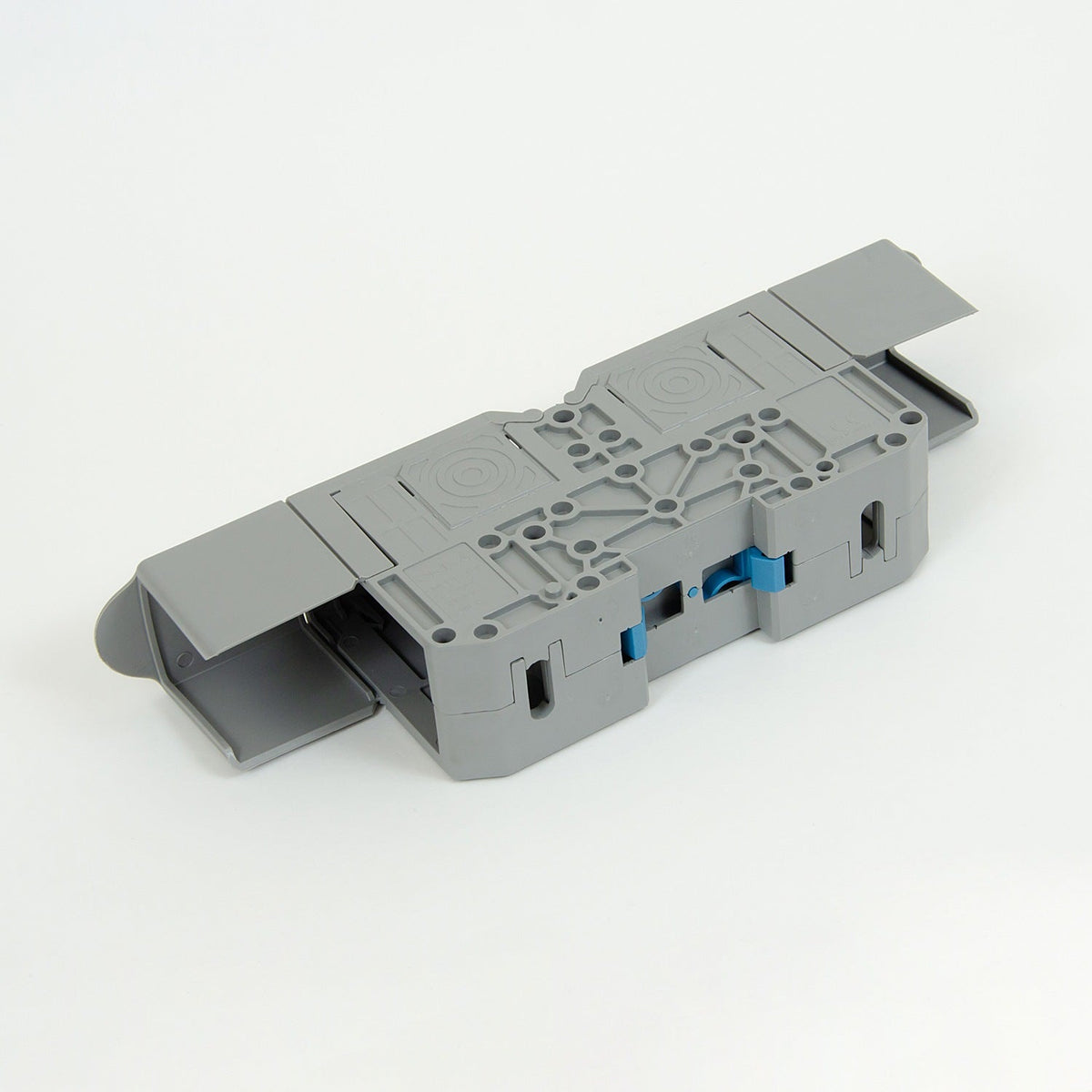

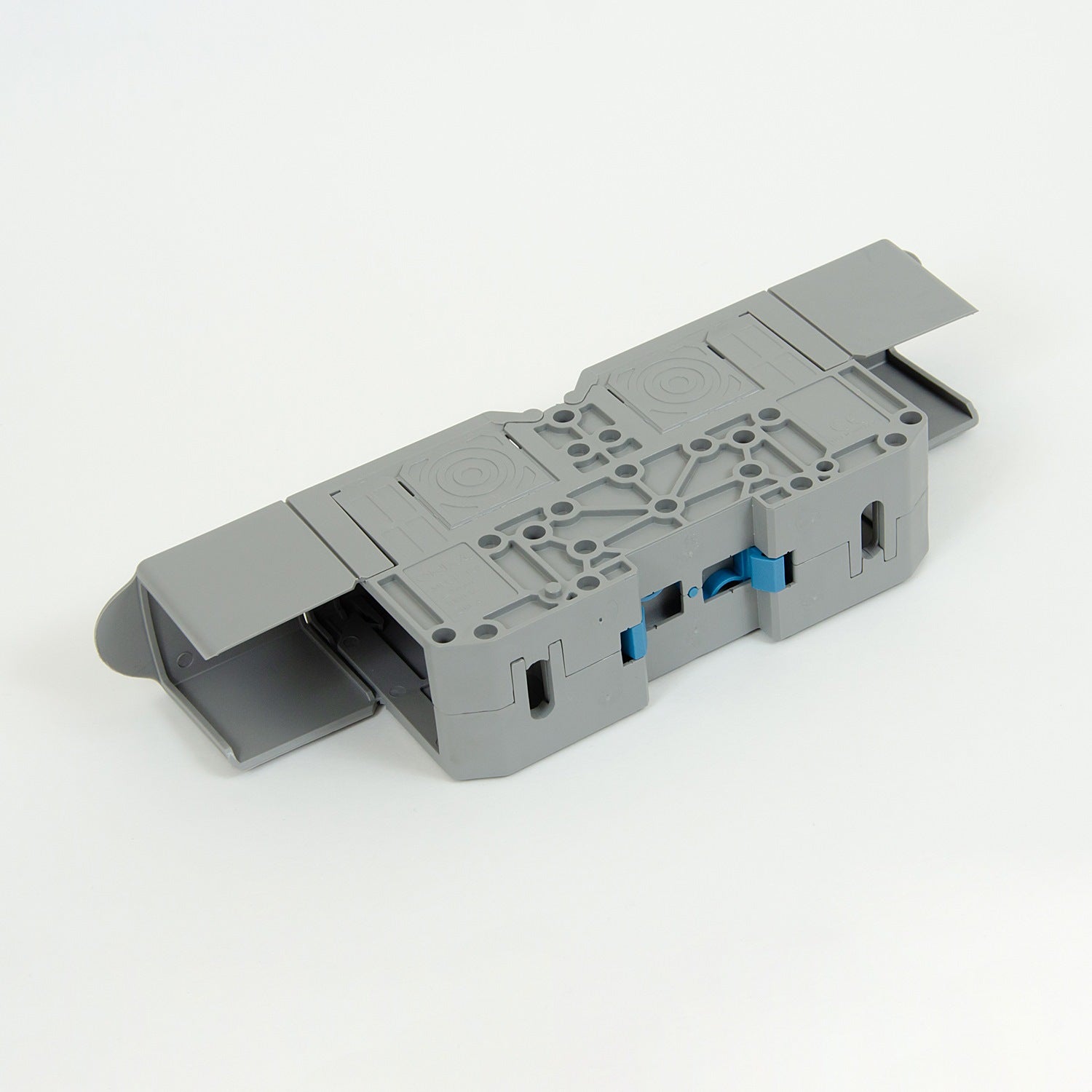

M10, 120mm2, threaded rail coupling / DIN rail clamp with protective cap, gray, ONKA, made in Turkey

ONKA's compact installation rail connectors offer excellent possibilities for connecting wires of various cross-sections. Their transparent housing makes it easy to check for correct wire placement. The original ONKA quick-connect connectors are easy to install and 100% reliable when connecting.

Technical parameters

Cross-section of the connected single wire up to: 120mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: lateral
Nominal voltage: 1000V
Nominal current: 269A
Operating temperature range: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
