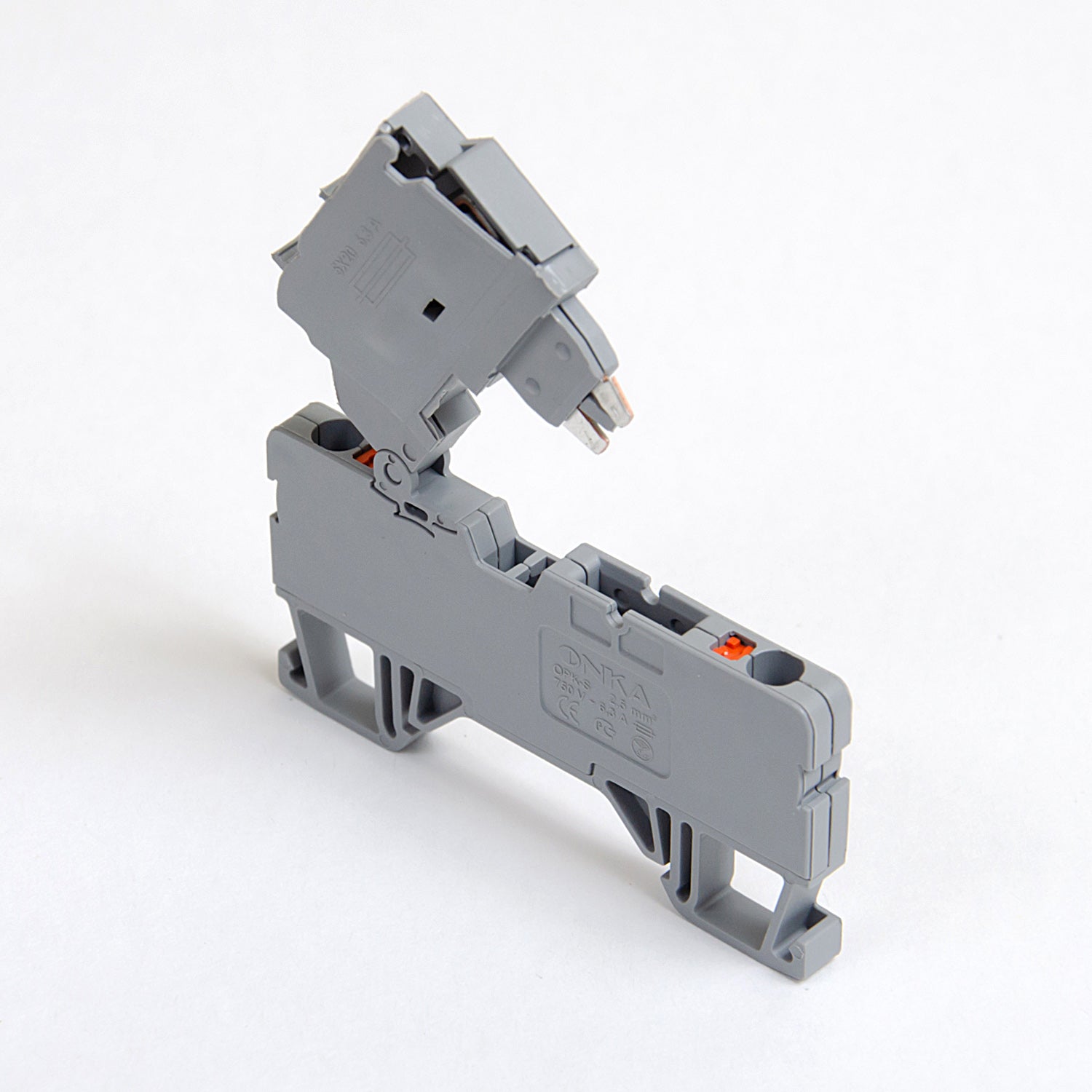

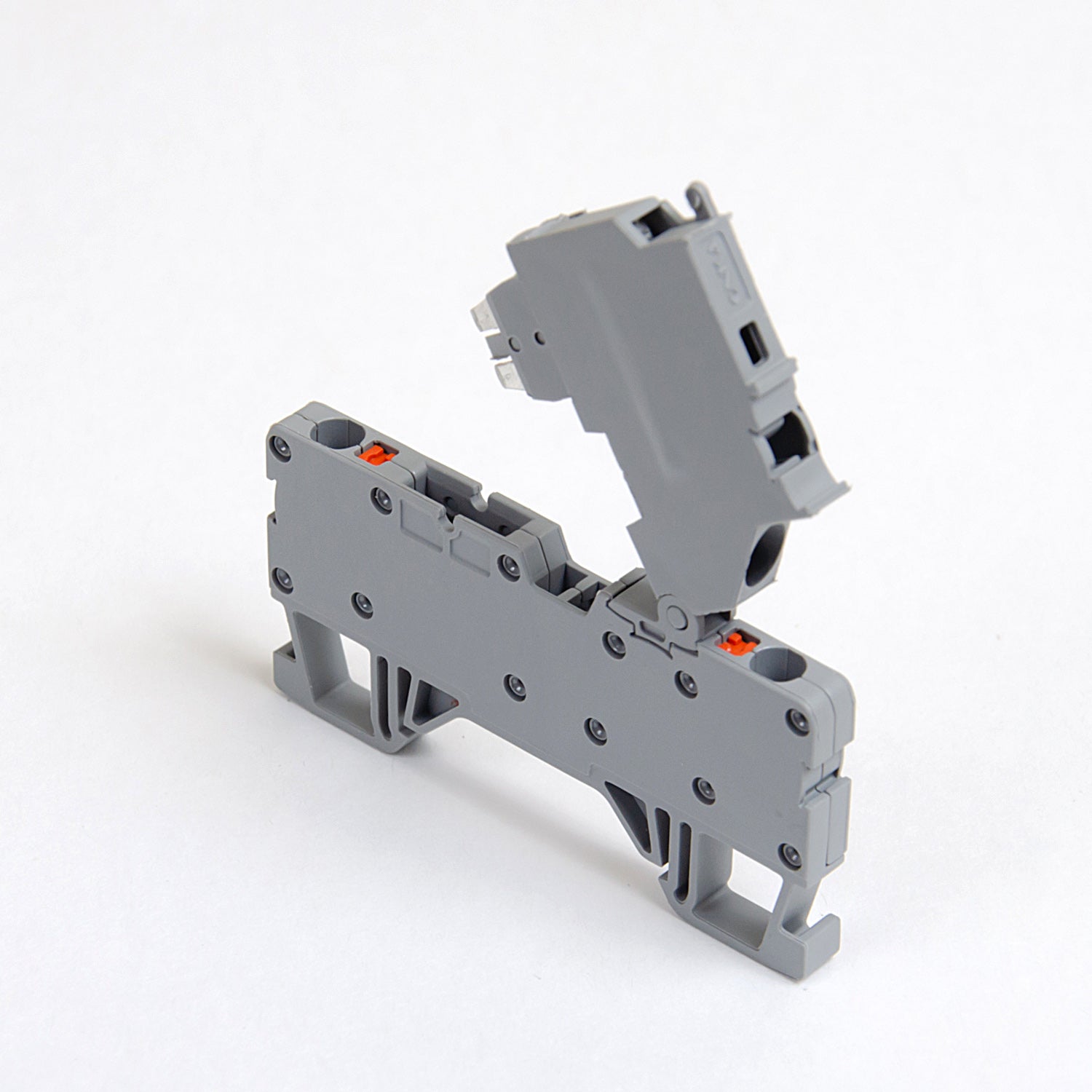

ONKA 2.5mm2 screw terminal fuse terminal block (fuse not included) gray, 1020223

Barcode: 1020223
Regular price
€2,48
Regular price
Sale price
€2,48
56 in stock
  • Description
  • Payment methods
  • Warranty

Spring screw terminal fuse terminal block (fuse not included) 2-wire, gray, ONKA, made in Turkey

Used to protect low-current AC or DC circuits. A 5x20 mm fuse is installed in the terminal block with a current rating of up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of the connected single wire up to: 2.5 mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 9mm
Electrical connection type: screw terminal
Nominal voltage: 750V
Nominal current: 6.3A
Operating temperature range: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
