ONKA 4mm2 PE spring terminal block DIN rail clamp 2-wire gray, 1020299

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

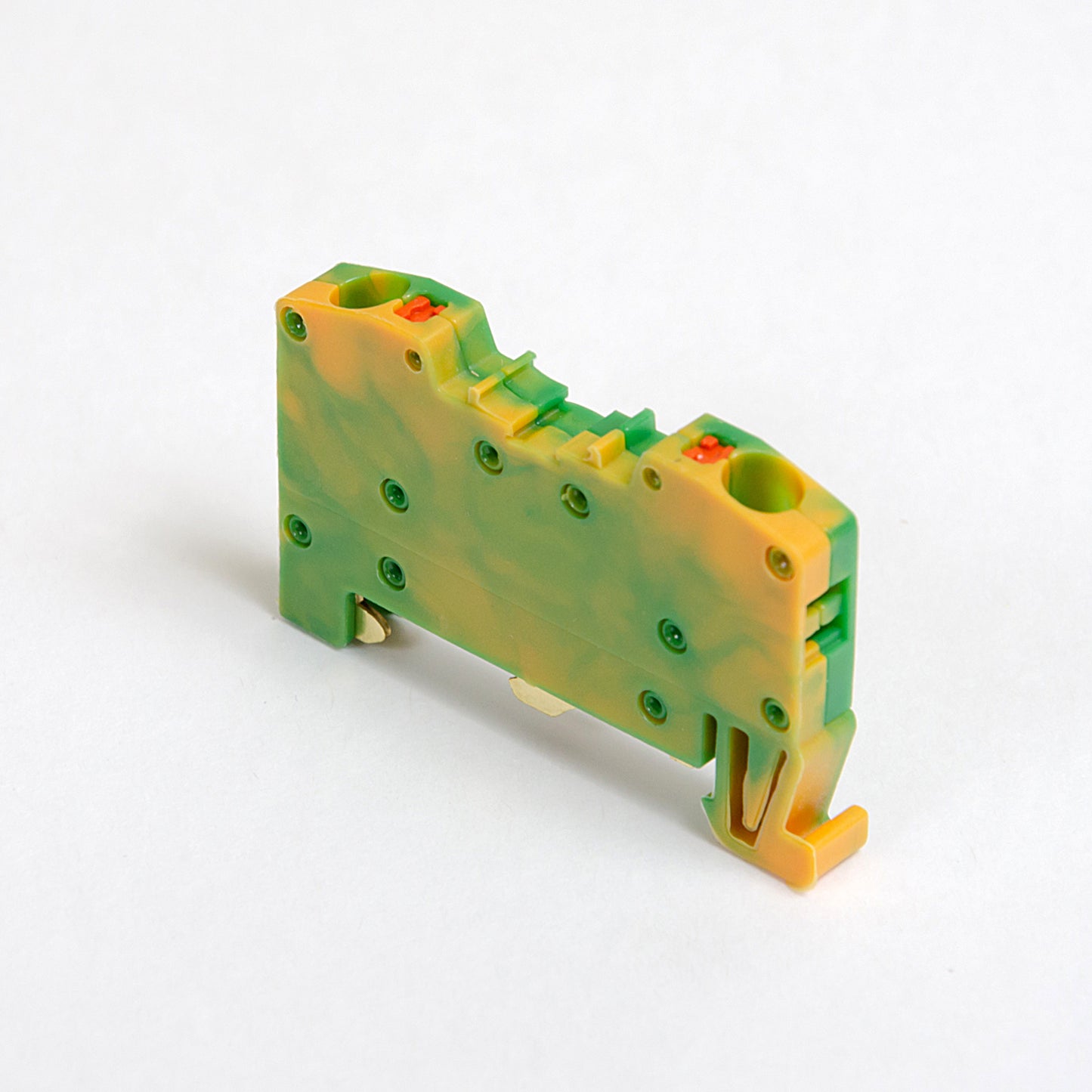

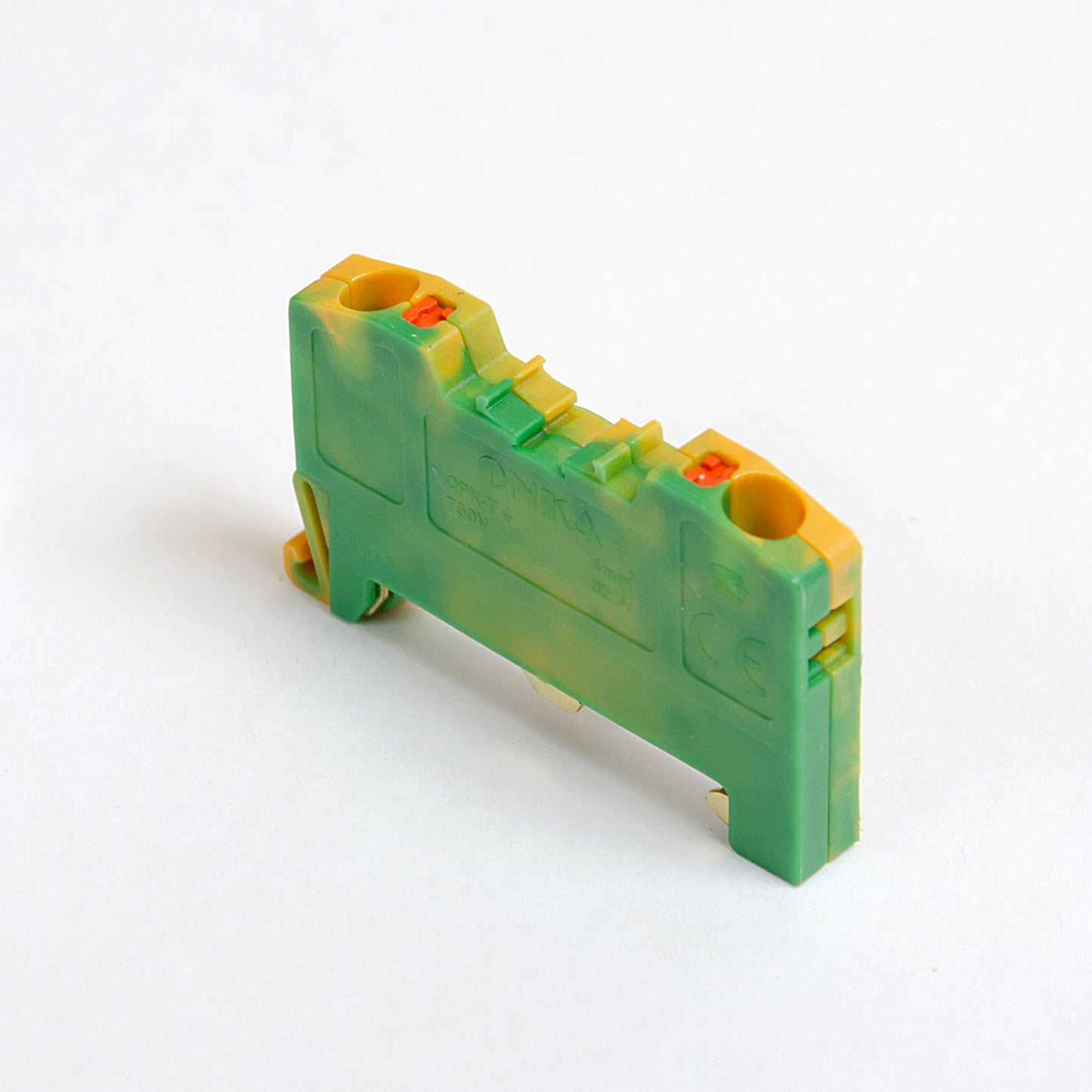

PE spring rail connector / DIN rail clamp 2-wire green-yellow, ONKA, made in Turkey

The compact installation rail couplings from ONKA offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick couplings are convenient for installation and 100% reliable when connecting.

Technical parameters

Cross-section of the connected single wire up to: 4mm2
Color: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Connection position: Top/top
Cable strip length: 9mm
Type of electrical connection: spring clamp
Nominal voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
