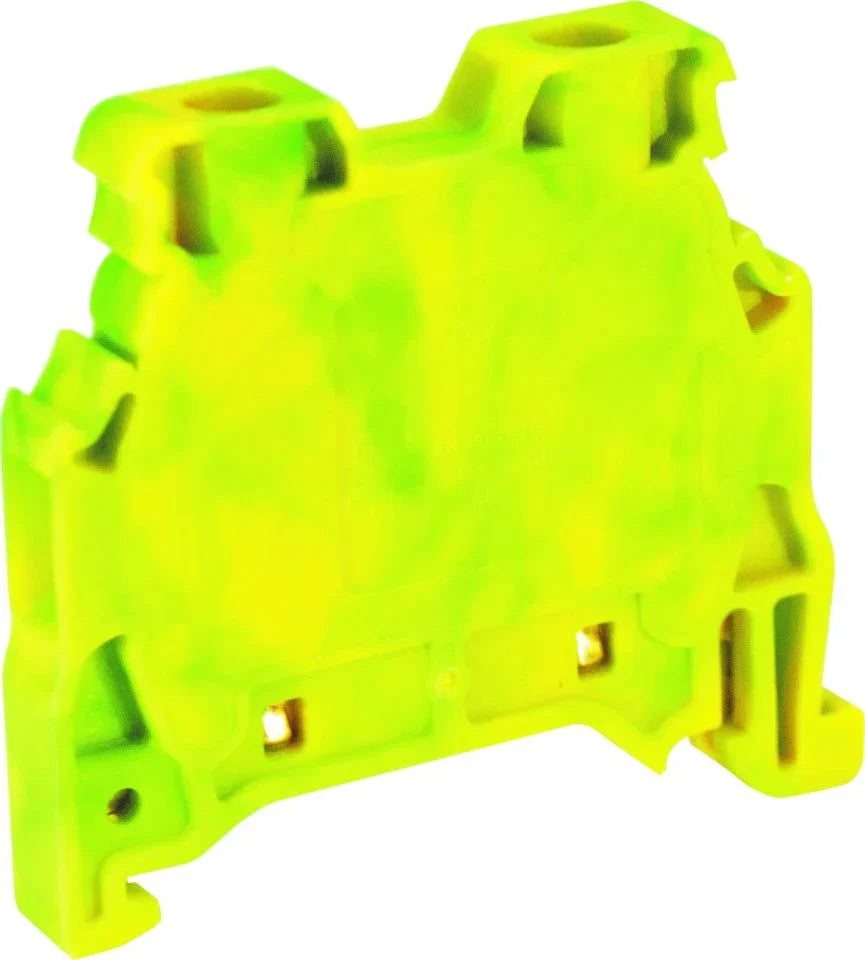

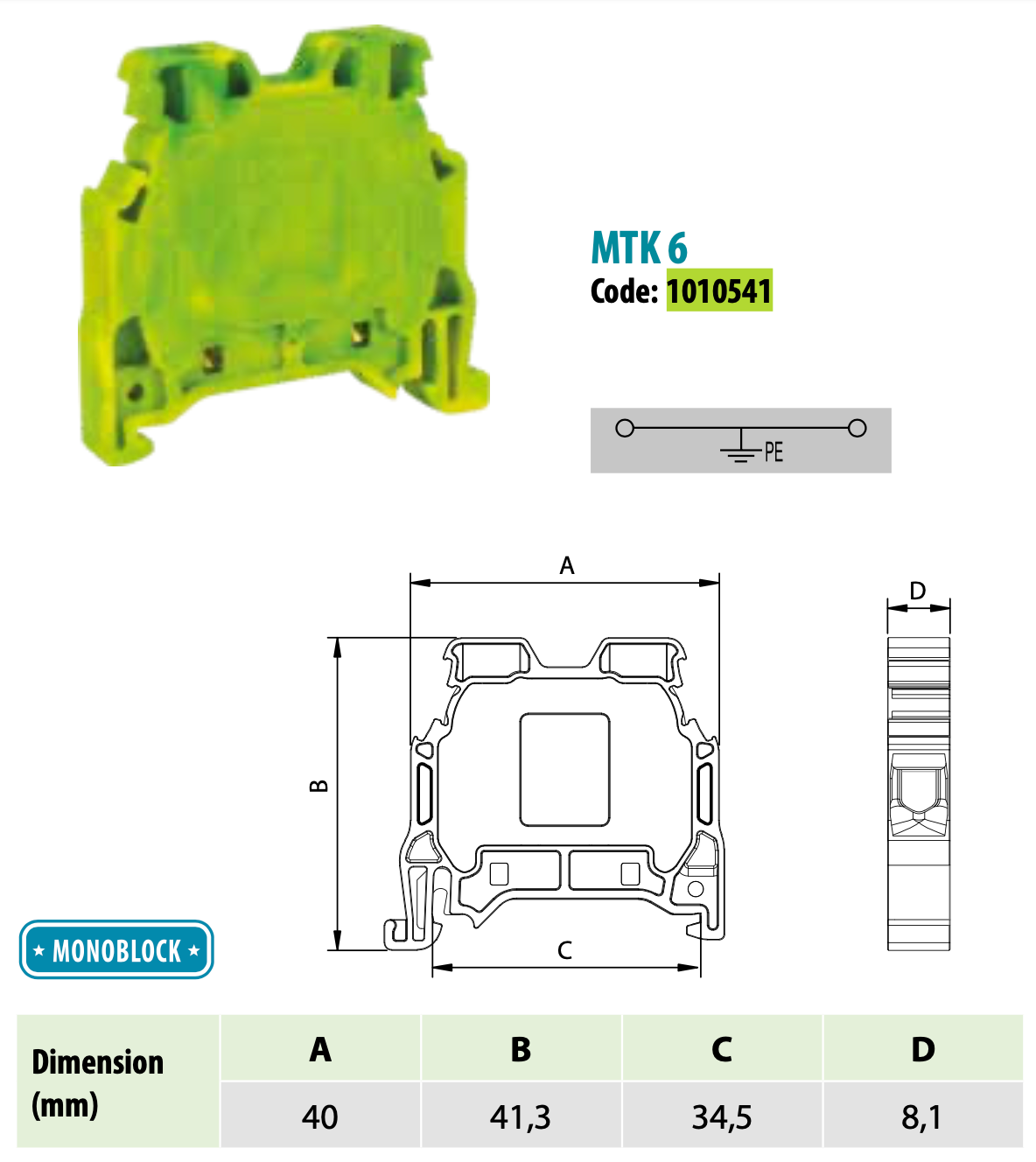

PE rail coupling with thread / DIN rail clamp 2-wire green-yellow, ONKA, made in Turkey

The compact installation rail connectors from ONKA offer great possibilities for connecting any wire with different cross-sections. The transparent housing makes it easy to check the correct placement of the wires. The original ONKA quick connectors are a convenience during installation and 100% reliable when connecting.

Technical parameters

Cross-section of the connected single wire up to: 6mm2
Color: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral
Cable strip length: 12 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Operating temperature range: -40°C... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
