ONKA 6mm2 Screw Rail Clamp Block DIN Rail Clamp 2-Wire Blue, 1010035

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

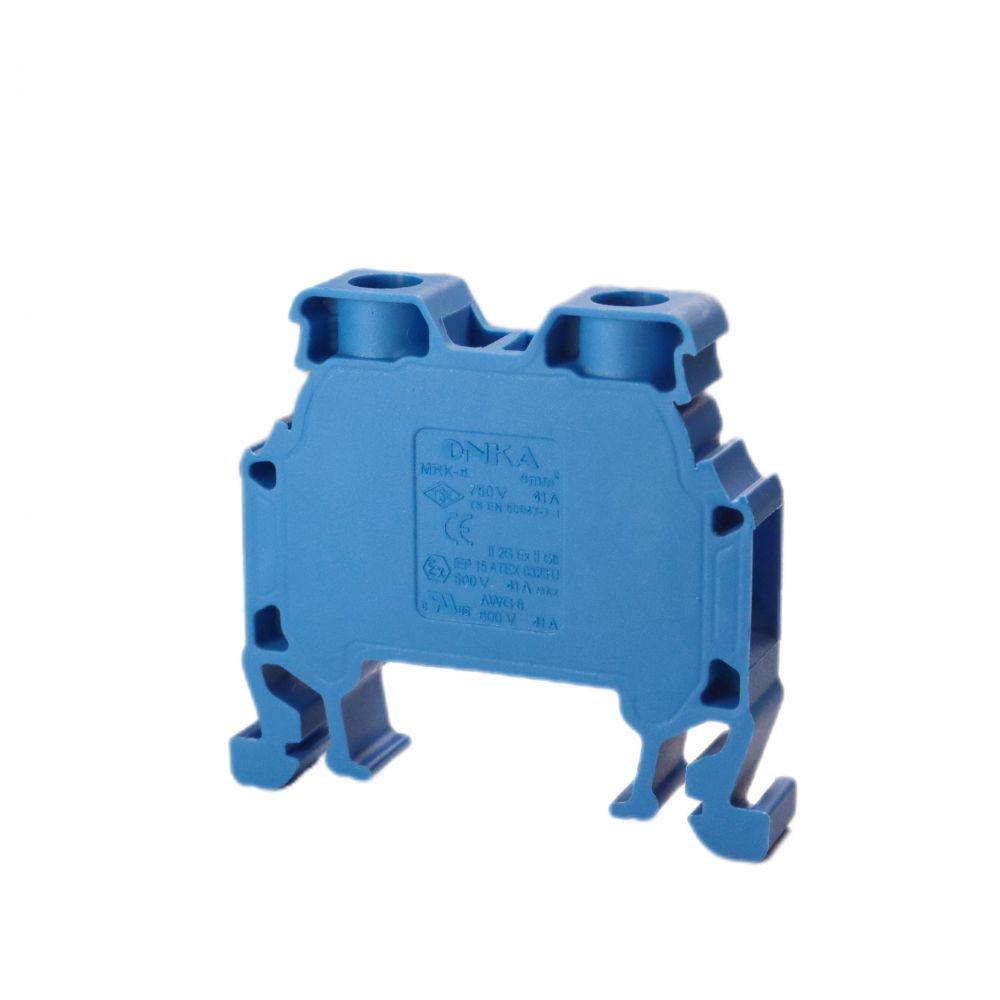

Rail socket with thread / DIN rail clamp 2-wire blue, ONKA, made in Turkey

The ONKA coupling/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector is made of high-quality materials and guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single wire up to: 6mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral
Cable strip length: 12 mm
Type of electrical connection: screw terminal
Nominal voltage: 750V
Nominal current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
