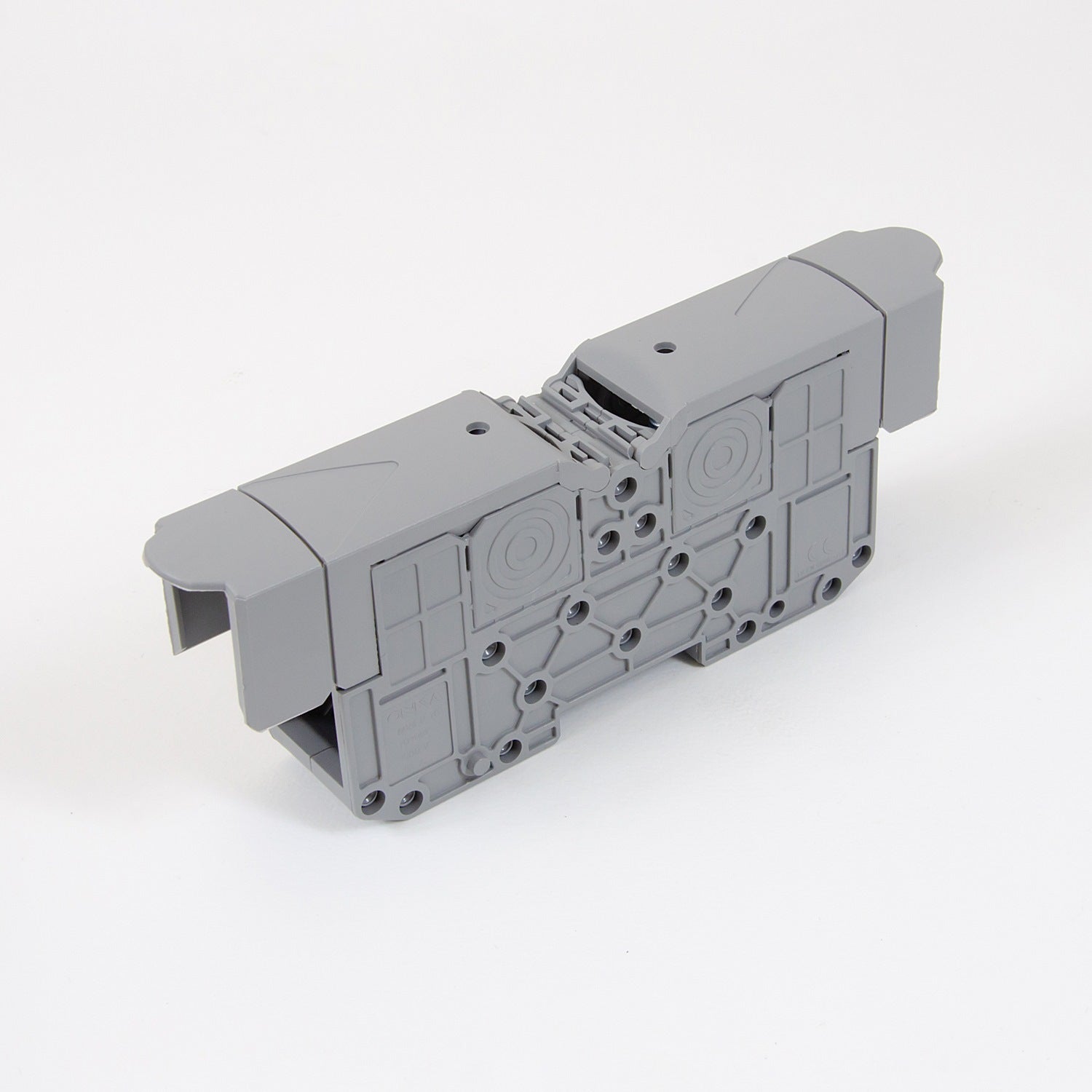

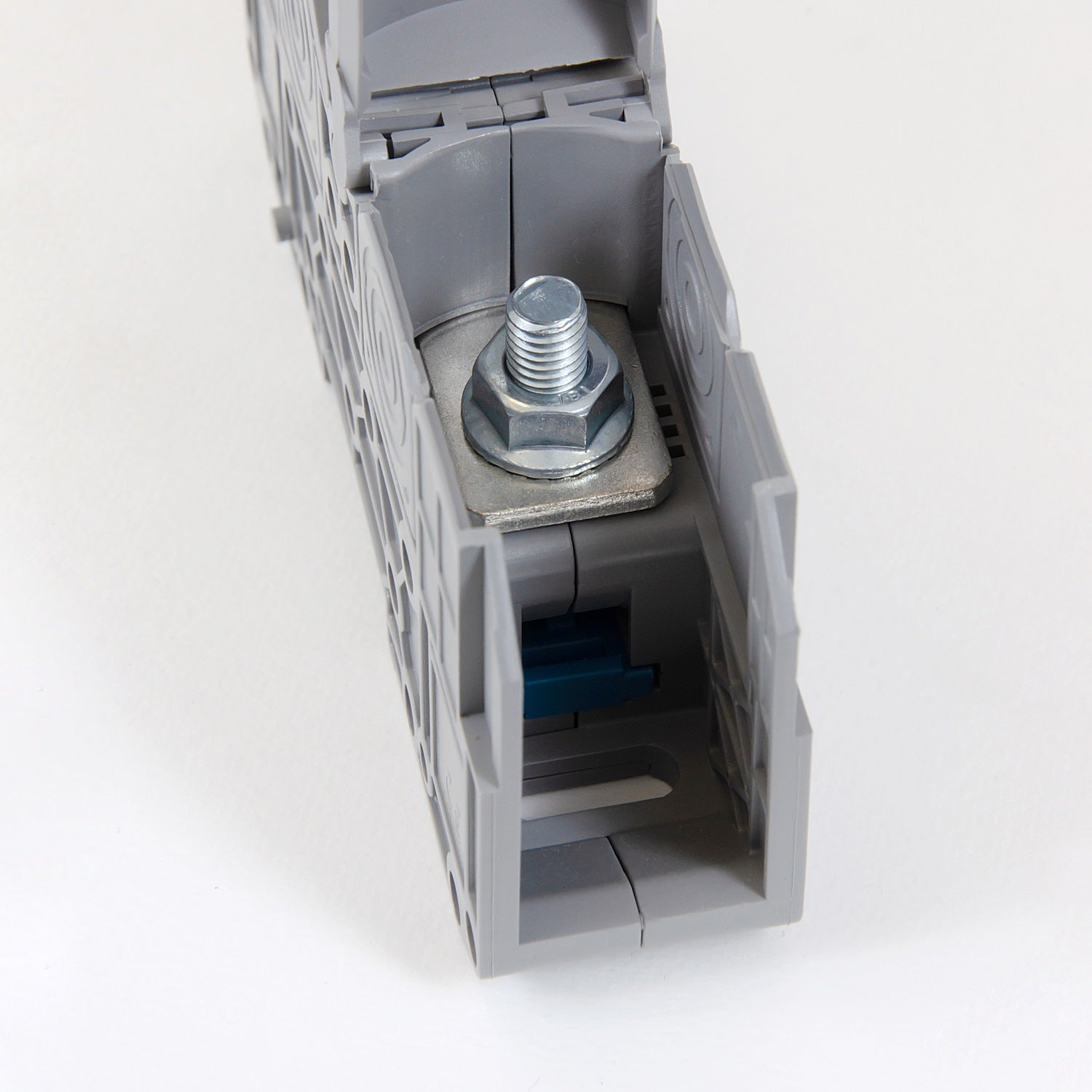

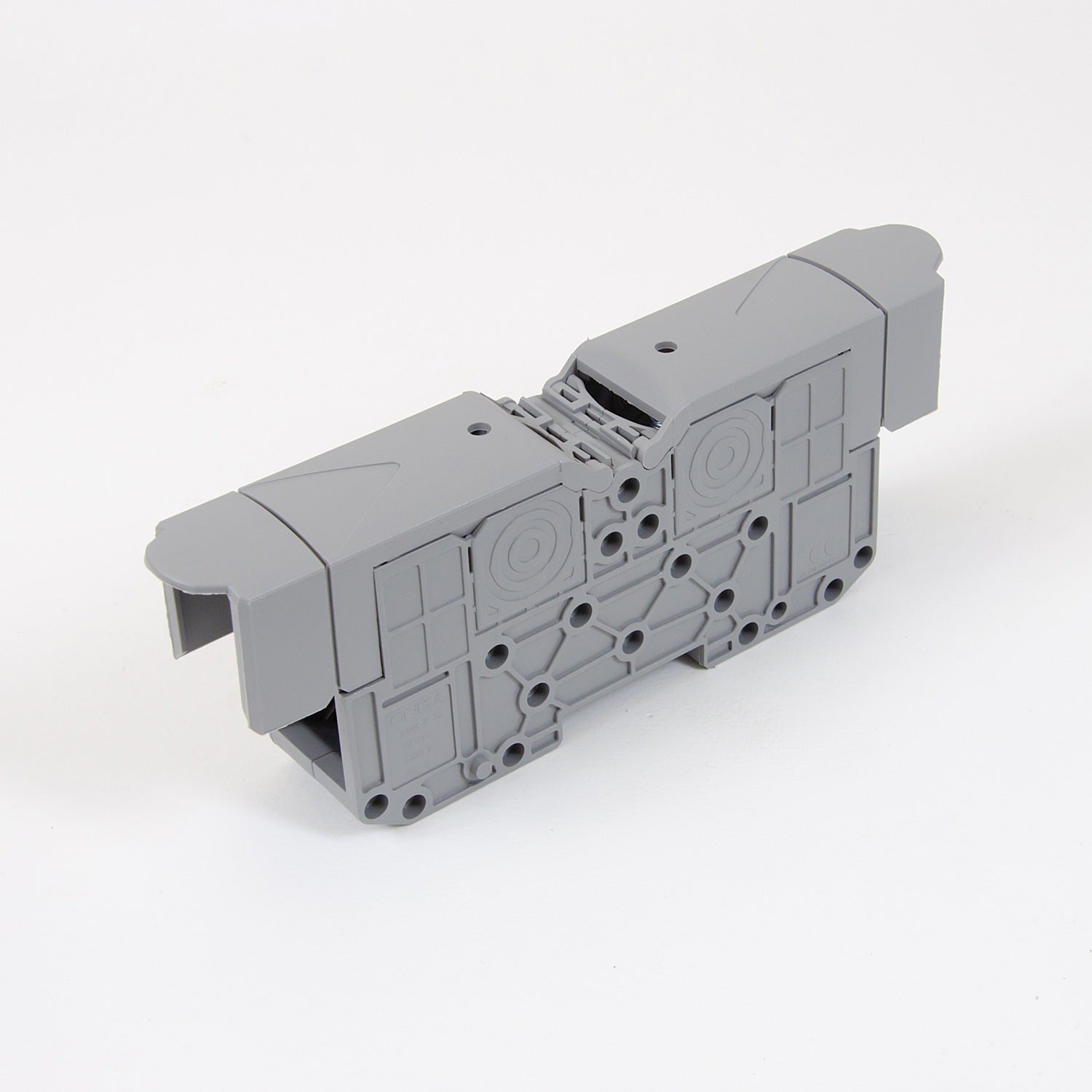

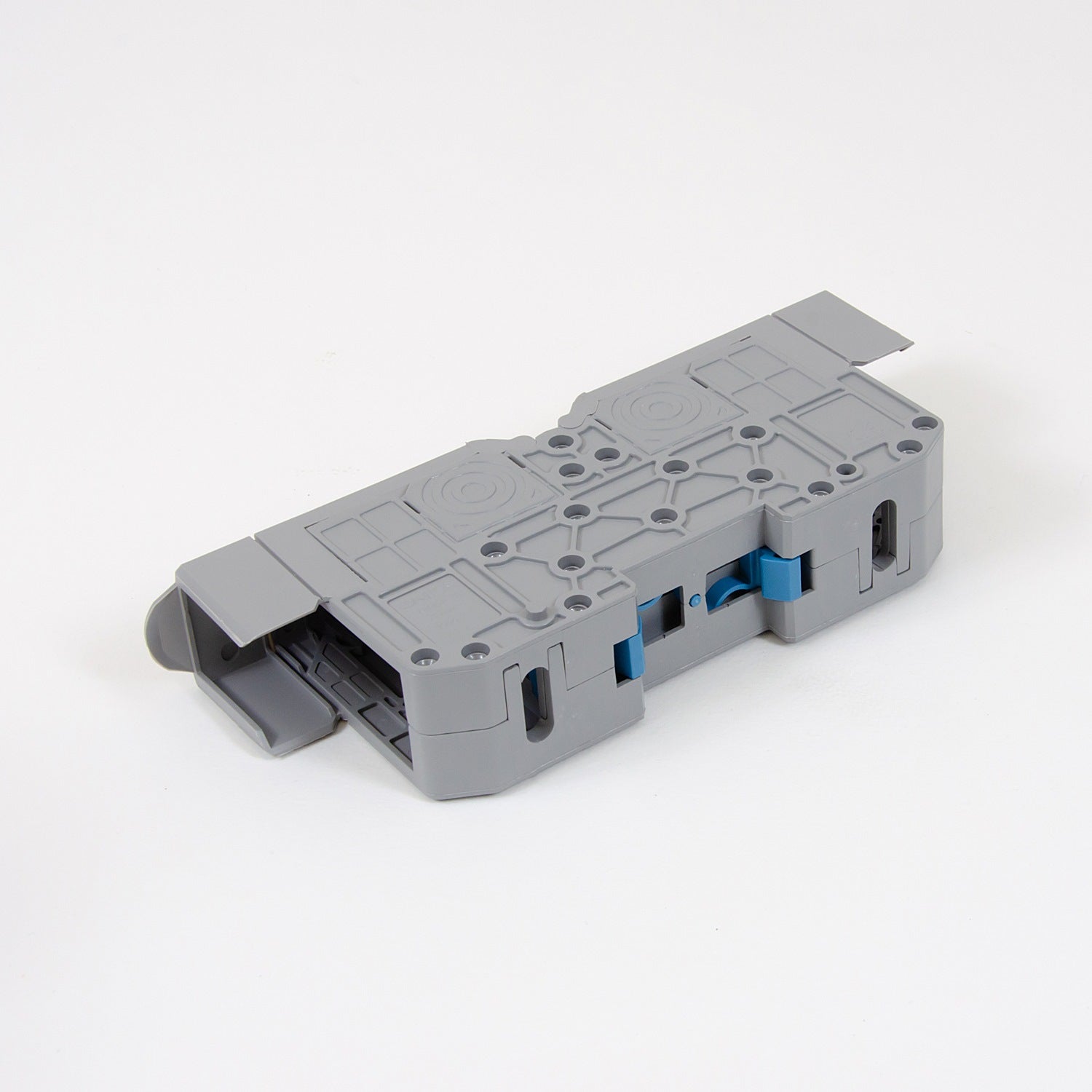

ONKA 70mm2 M8 Screw-in DIN rail terminal block with protective cover, gray, 1030045

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

M8, 70mm2, threaded rail coupling / DIN rail clamp with protective cap, gray, ONKA, made in Turkey

ONKA's compact installation rail connectors offer excellent options for connecting any wire with different cross-sections. Their transparent housing makes it easy to check for correct wire placement. The original ONKA quick-connect connectors are easy to install and 100% reliable when connecting.

Technical parameters

Cross-section of the connected single wire up to: 70mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: lateral
Nominal voltage: 1000V
Nominal current: 192A
Operating temperature range: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
