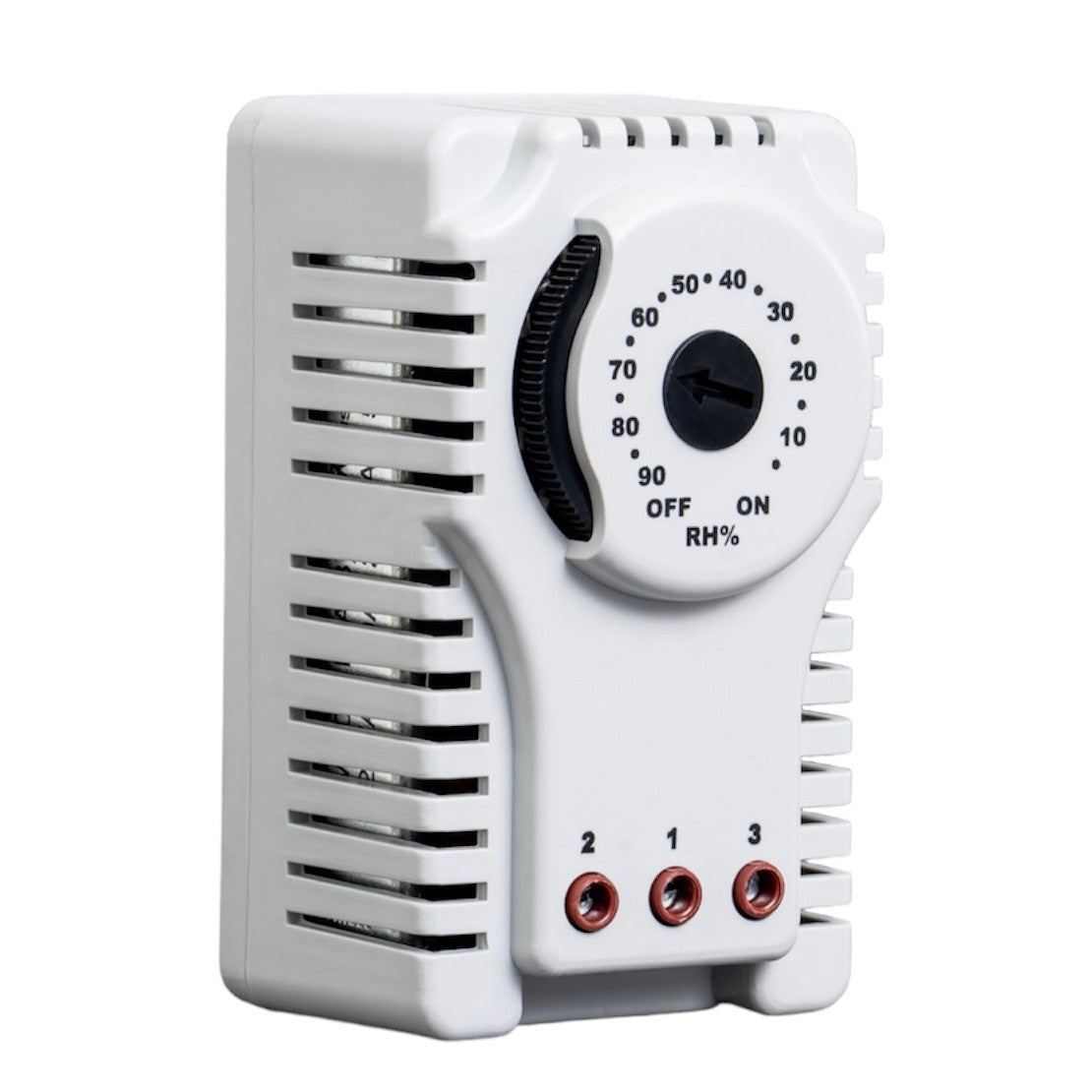

PLASTIM PHG02 hygrometer 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrometer (mechanical relay for humidity level control or hygrometer or hygrostat) can be used for both processes - for humidity reduction and for humidity increase. For this purpose, the device is equipped with a switching contact that allows this hygrometer to be used for any task in the field of humidity control.
This relay for controlling the humidity level is designed to be installed in electrical or automation panels, ATMs, payment terminals, gaming machines, or other volumes to regulate the humidity level and activate the corresponding heating or drying devices.
Manufacturer code |
Unit |
PHG02 |
Voltage |
V AC |
110-250 |
Setpoint range |
% RELATIVE HUMIDITY |
10-90 |
Potentiometer color |
- |
Black |
Stream |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
Polyamide ribbon |
Electrical connection |
- |
3-pole terminal |
Wire size |
- |
0.75 mm² - 4.0 mm² |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Protection rating |
- |
IP20 |
Color housing |
- |
RAL7035 |
Installation |
- |
DIN rail 35mm |
Dimensions |
mm |
94x54x56 |
Weight |
g |
180 |
