TENSE

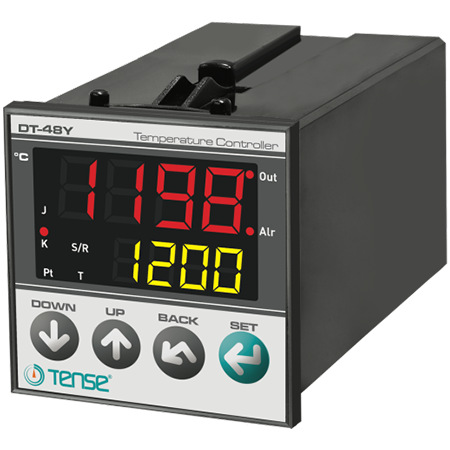

PID temperature controller for panel mounting up to 1750 °C

In stock - 15 items available
SKU: DT-48Y
€44,00 Inclusief BTW
variant

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

PID temperature controller for panel mounting, measurement range -100°C ... +1750°C, resolution / step 0.1ºC (manufactured in Turkey, TENSE)

Control and monitoring of thermal processes of heating, air conditioning, and ventilation systems, building automation, industrial equipment.

The temperature controller is implemented with on/off or PID control. The controller offers self-optimization to prevent process overshoot.

  • Automatic tuning of PID parameters

  • Sensor type: T/C (J,K,T,S,R), Pt100
  • Selectable control type: P, PI, PD, PID or ON/OFF.

  • Automatic removal of 'overshoot' in PID mode

  • Anti-windup

  • ON delay for OUT in cooling mode

  • Password protection

  • EEPROM memory for storing settings

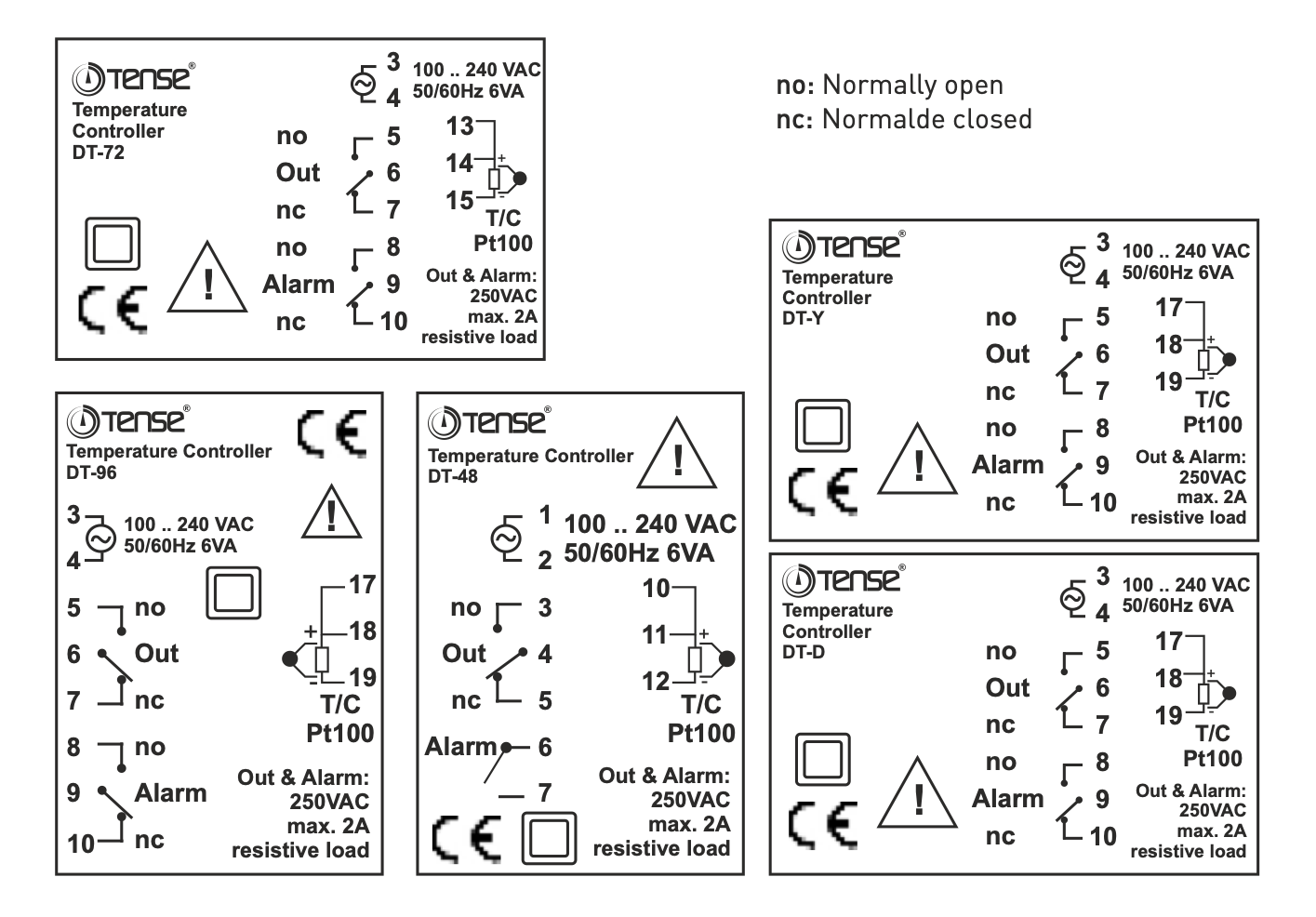

  • Relay OFF and ALARM (NO+NC) outputs 250 VAC, 2A (ALARM ON only on DT-48Y)

The measurement range depends on the sensor and can be set with the buttons on the temperature controller.

The display of the temperature controller is a high-contrast display that can only be read accurately under less favorable conditions. In addition to the control output, the temperature controller has an extra alarm relay that activates a voltage-free contact if the value is exceeded or not reached.

Don't forget to order our temperature sensors - type J Fe-Const thermocouples (6/8 metric) with a temperature measurement range of -100 °C - +600 °C. Available with cable lengths of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
