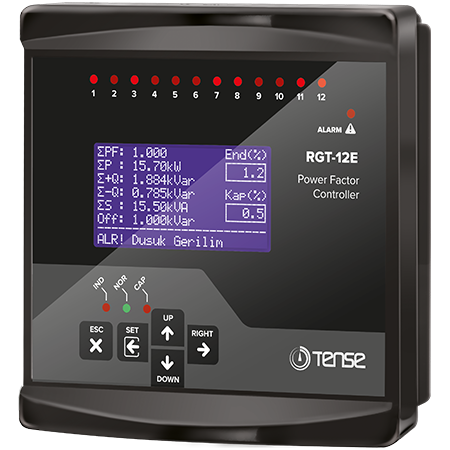

RGT-12E - Blind Power Controller 12 level +TCR

12-step + TCR power factor controller with 2.9" graphic LCD screen (TENSE)

The RGT-12E reactive power controller (TENSE) is a fully automatic device for the optimal switching of compensation phases.

The digital processing of the values measured by the controller ensures high accuracy in the evaluation of the effective voltage, current, and power factor.

The installation of the device is fully automatic - the controller determines the size of the individual connected compensation steps by itself. These parameters can also be entered directly manually.

The controller switches the compensation steps on and off so that reactive power is regulated with a minimal number of switching operations. At the same time, the controller takes into account the even loading of the individual steps and preferably switches the steps that have been de-energized the longest and have minimal residual charge. During the regulation process, the compensation steps are continuously monitored in parallel - faults and changes in values are detected, temporarily removed steps are periodically tested, and if necessary, they are reintroduced into the regulation process.

• Generator input and generator compensation

• Hit, discharge, and settling times can be set

• Single-phase, two-phase, and three-phase capacitors and shunt reactors can be connected.

• Harmonic voltage and current can be observed up to the 31st harmonic.

• Total energy can be monitored (import/export)

• THD-V and THD-I values of each phase can be viewed

• Create power analysis (20 samples 9999 min.) - for capacitor selection
