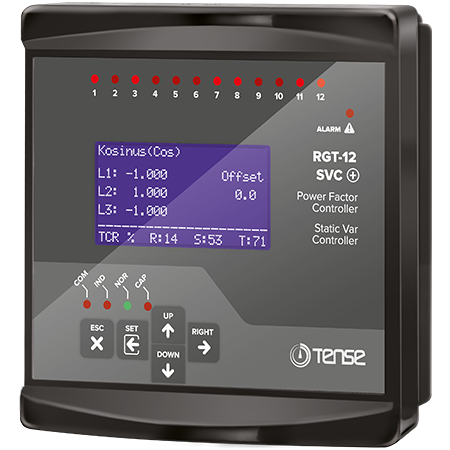

12 steps + TCR Power factor controller with 2.9" graphic LCD screen and RS-485 (TENSE)
The RGT-12SVC reactive power controller (TENSE) is a fully automatic device for the optimal switching of compensation phases.
The digital processing of the values measured by the controller ensures high accuracy in the evaluation of the effective voltage, current, and power factor.
The installation of the device is fully automatic - the controller determines the size of the individual connected compensation steps by itself. These parameters can also be entered directly manually.
The controller switches the compensation steps on and off so that the reactive power is controlled with a minimal number of switching operations. At the same time, the controller takes into account the even loading of the individual steps and preferably switches the steps that have been de-energized the longest and have minimal residual charge. During the control process, the compensation steps are continuously monitored in parallel - faults and changes in values are detected, temporarily removed steps are periodically tested, and if necessary, they are reintroduced into the control process.
Generator input and generator compensation
Starting, discharging, and settling times can be set
Remote communication via RS485 (RS485 ModBus RTU)
Single-phase, two-phase, and three-phase capacitors and shunt reactors can be connected
Harmonic voltage and current can be observed up to the 31st harmonics
Total energy (import/export) can be monitored
THD-V and THD-I values of each phase can be viewed
Create power analysis (20 samples 9999 min.) - for capacitor selection
