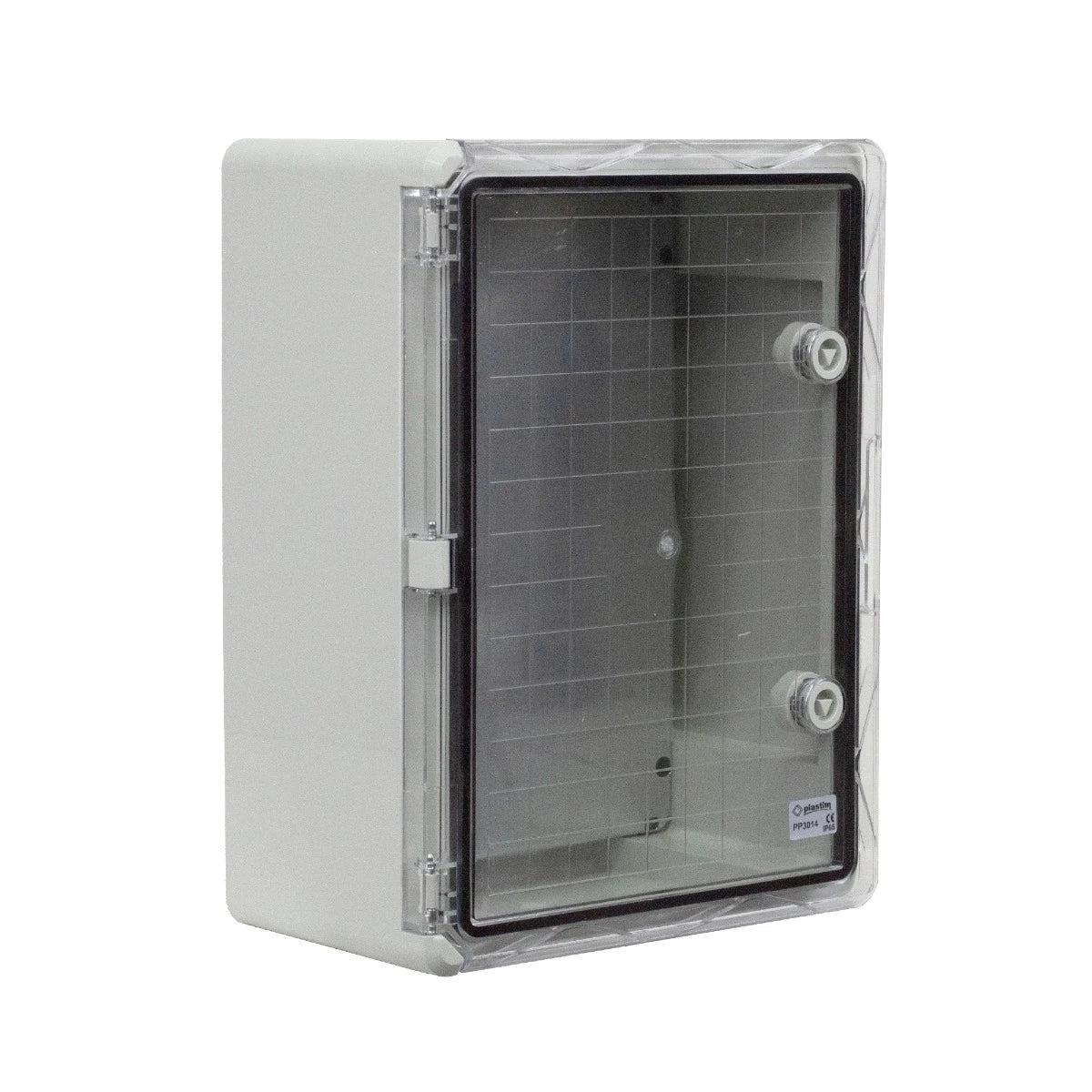

Plastic switch cabinet, transparent door, seam 300x400x170mm, IP65, PP3014 Plastim

The new plastic waterproof enclosures from the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced boxes with metal studs

• A new design of enclosures with corner reinforcements and a greater thickness of the door and the entire product.

• Extended temperature range in which the protector retains all its improved properties -25/+60C

• Fully corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN-rails reinforced metal pin lips;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material: HB ABS halogen-free + polycarbonate (door).
• Width: 300 mm
• Height: 400 mm
• Depth: 170 mm
• Color: RAL7035 light gray
• Enclosure: IP65, IK08
• Nominal voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
