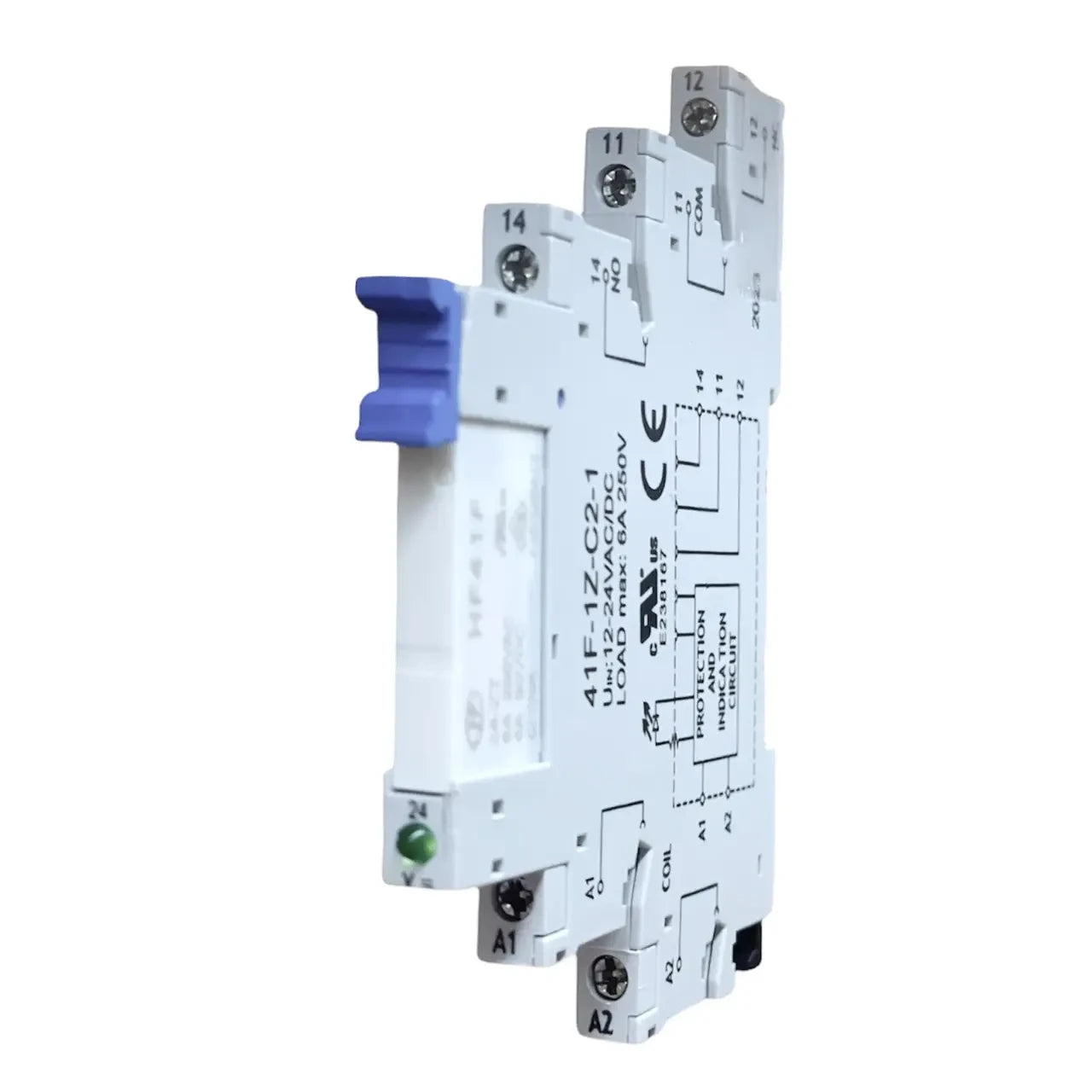

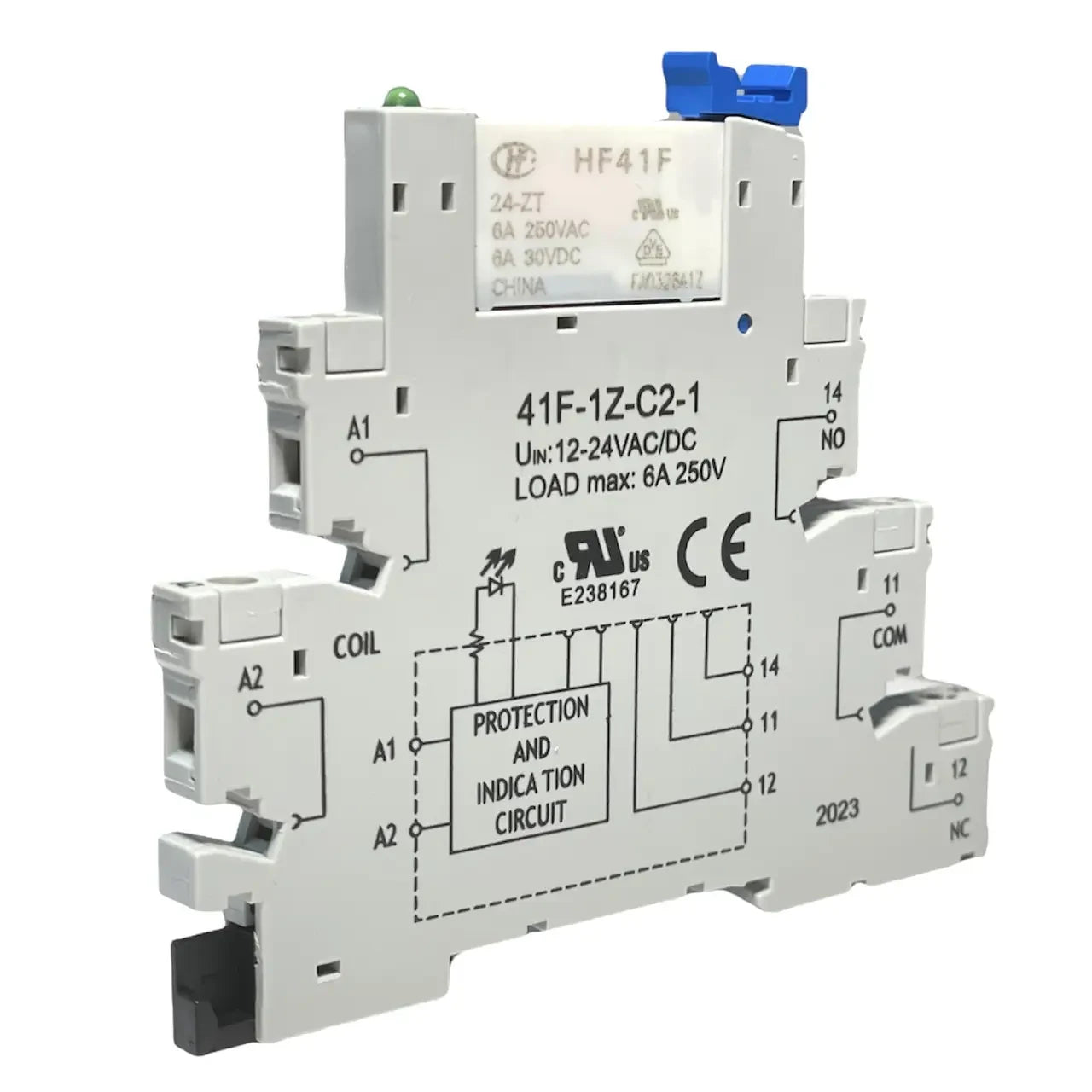

Interface relay with mounting block, interface module: 6A, 12-24V, AC/DC, HB+NC The HF-41F interface block consists of the 41F-1Z-C2-1 base module and the HF41F/24-ZT plug-in mini relay with power contacts. It is designed for galvanic isolation, increasing switching capacity, and amplifying the control signal originating from the PLC.
Features and benefits
Provides galvanic isolation and switching of power and signal circuits. Mounting on standard DIN rail.

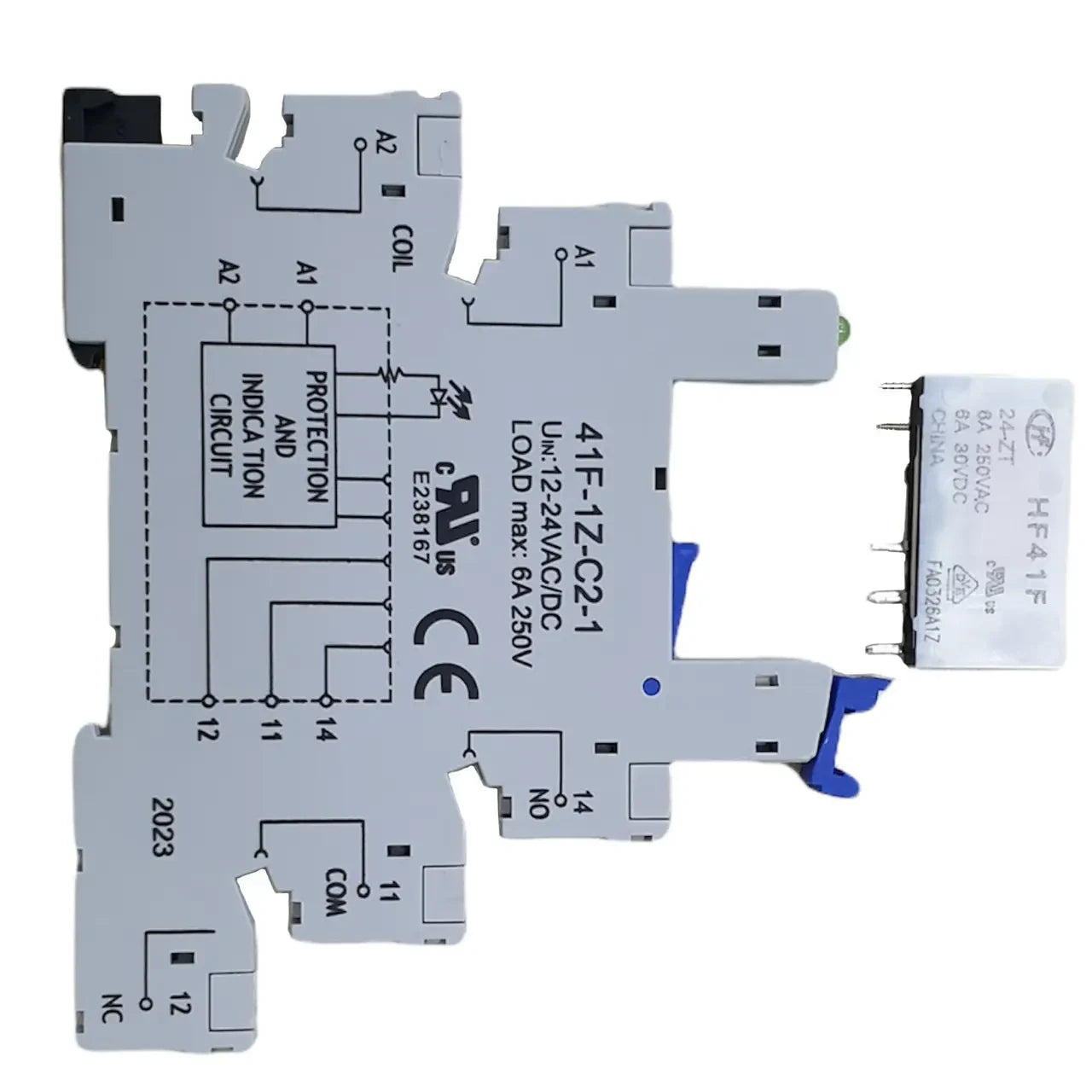

Replacement of the relay element without removing the entire module. Space-saving Built-in LED indicator Technical characteristics
Rated input voltage: 12-24 V, AC/DC Rated operating voltage AC: 250 V Rated operating voltage DC: 30 V Rated current: 6 A Contacts: NO+NC Indication: green relay status LED Operating temperature: -20...+55 °C Protection rating: IP20 |
Module width: 6 mm
