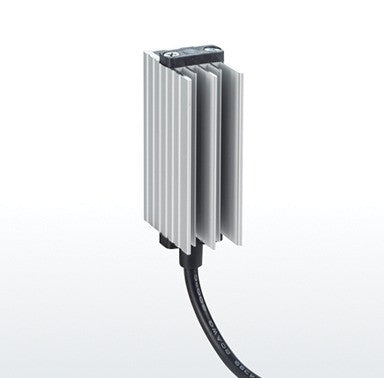

Mini switch PTC 25W, MPHT25, Plastim

Mini electric (PTC Body heater, post-tension heater) panel heating with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 25 watts, 110-220 volts AC or DC, MPHT25, Plastim - made in Turkey.

• Heating power: 25W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Type of heating element: Self-regulating PTC resistor

• Overcurrent protection: Electronic thermal overload relay

• Electrical connection: 30 cm connection cable, N-L-E

• IEC protection class: Class II

• Protection class: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: DIN rail 35 mm

• Mounting position: Best performance in vertical position

• External dimensions: 70x50x27mm

• Weight: 0.12 kg

Heating elements are used to maintain the temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent bulbs were used for this purpose, but it is clear that this method does not meet the modern stringent requirements for electrical equipment and electronics. Nowadays, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which is an additional guarantee for safe operation.

Due to the high demands placed on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. The supplier of PTC heaters, for example, is the same as Schneider Electric.

I agree that this approach to supplier selection distinguishes Plastim's high-quality heaters from cheap Chinese analogs.

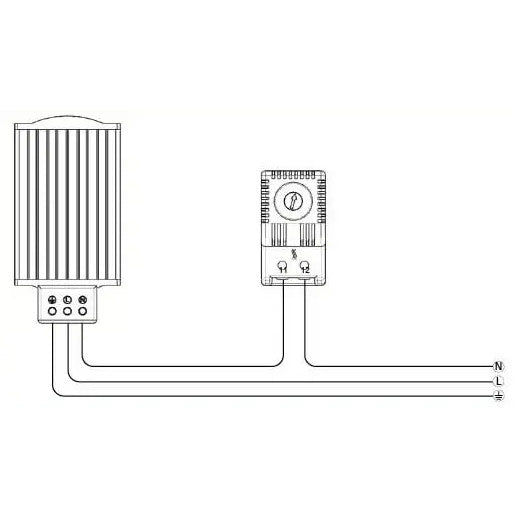

To automatically maintain the temperature with this heater, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available for purchase on our website.
