PTC 75W, PSHT075, Plastim

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

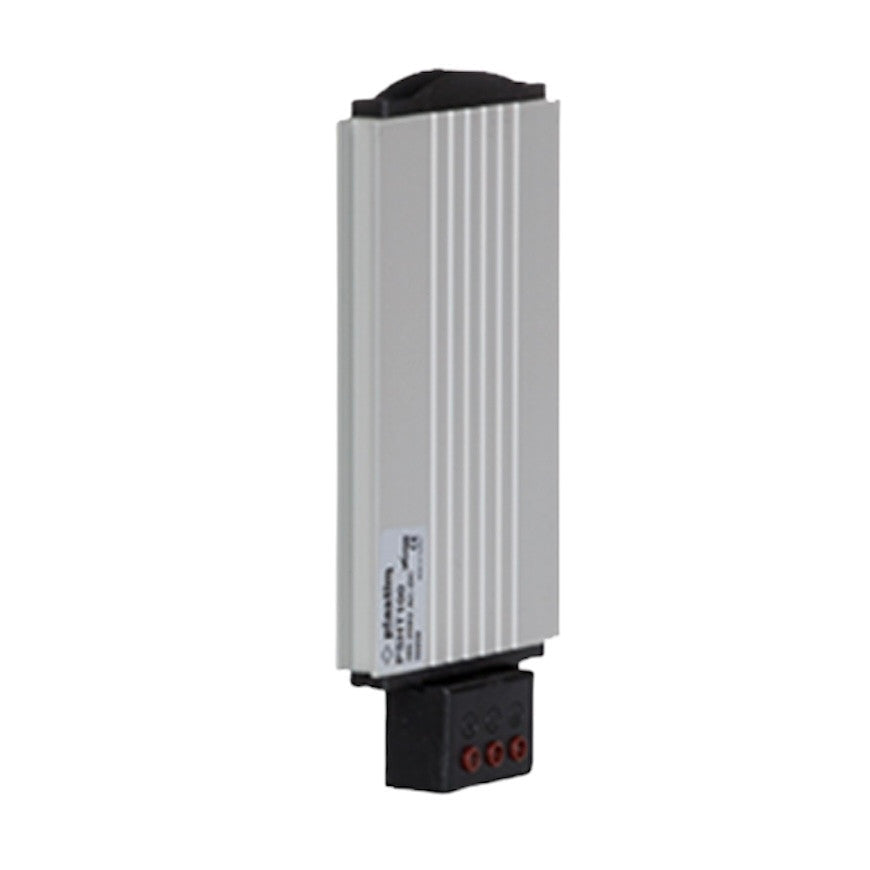

Slim electric (PTC Body heater, post-tension heater) panel heating with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 75 watts, 110-220 volts AC or DC, PSHT075, Plastim - made in Turkey.

• Heating power: 75W
• Operating voltage: 100-250V AC/DC
• Maximum current: 4A
• Type of heating element: self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: DIN rail 35 mm

• Mounting position: Best performance in vertical position

• External dimensions: 168x80x27mm

• Weight: 0.225 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic equipment. In the past, incandescent bulbs were used for this purpose, but it is clear that this method does not meet the modern stringent requirements for electrical equipment and electronics. Nowadays, almost all manufacturers are switching to PTC heating elements, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which is an additional guarantee for safe operation.

Due to the high demands placed on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but it also does not emit odors and therefore does not release harmful carcinogenic substances into the atmosphere. Agree that this approach in supplier selection favorably distinguishes Plastim heaters from cheap Chinese analogs.

To automatically maintain the temperature of this heater, you need a simple bimetal thermostat or a more complex temperature controller, both of which you can purchase on our website:
