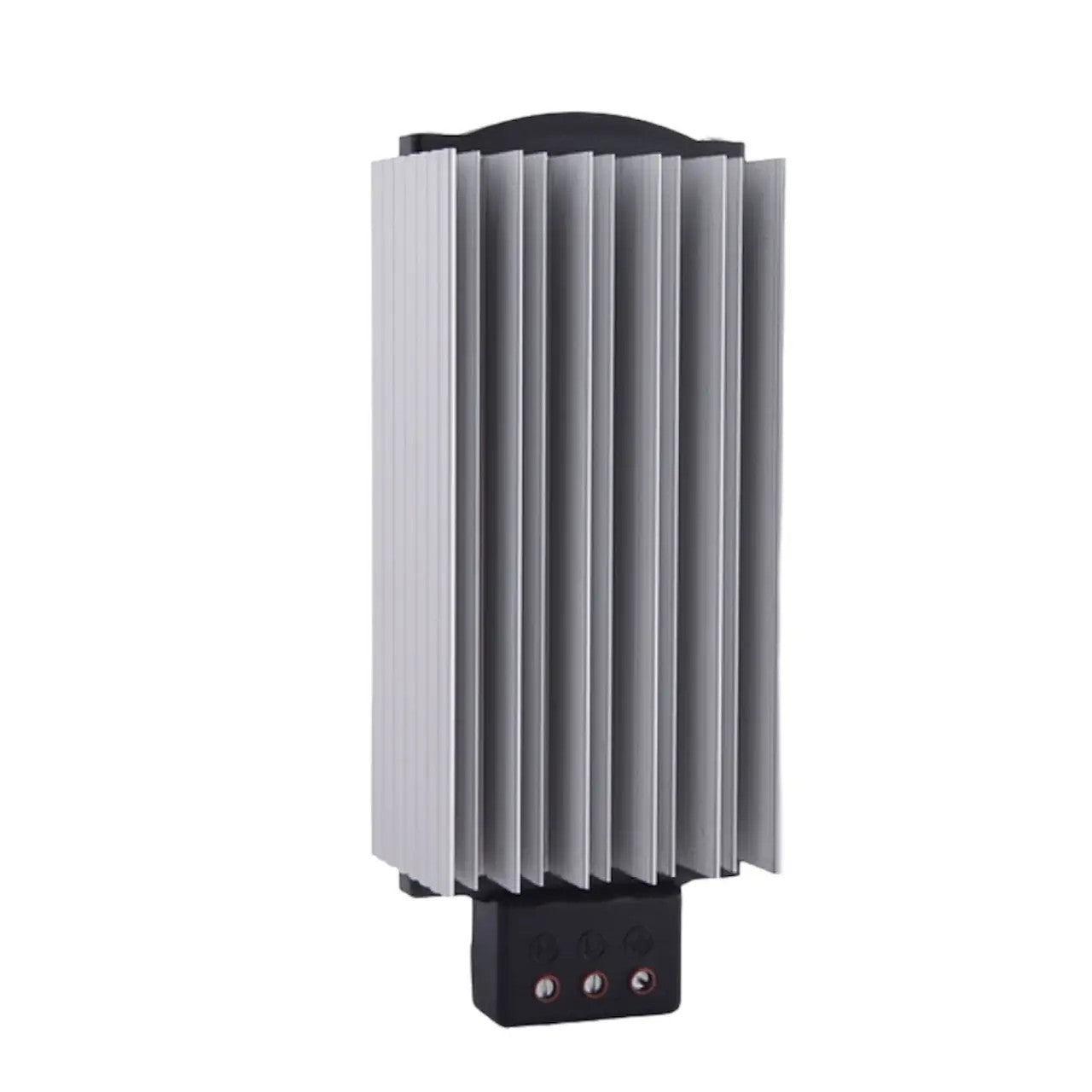

PTC Switchboard Heater 100W, PHT100, PLASTIM

Electric (PTC Body Heater, post-tension heater) panel heating with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 100 watts, 110-220 volts AC or DC, PHT100, Plastim - made in Turkey.

• Heating power: 100W
• Operating voltage: 100-250V AC/DC
• Maximum current: 4A
• Type of heating element: self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: DIN rail 35 mm

• Mounting position: Best performance in vertical position

• External dimensions: 188x70x59mm

• Weight: 0.59 kg

Heating elements are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic equipment. Since the Soviet era, incandescent bulbs have been used for this purpose, but it is clear that this method does not meet the modern stringent requirements for electrical equipment and electronics. Nowadays, almost all manufacturers are switching to PTC heating elements, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which is an additional guarantee for safe operation.

Due to the high demands placed on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. The supplier of the PTC heaters is, for example, the same as Schneider Electric, and the terminal block for the electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but it also does not emit odors and therefore does not release harmful carcinogenic substances into the atmosphere. I agree that this approach in the selection of suppliers favorably distinguishes Plastim heaters of high quality from cheap Chinese analogs.

To automatically maintain the temperature with this heater, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
