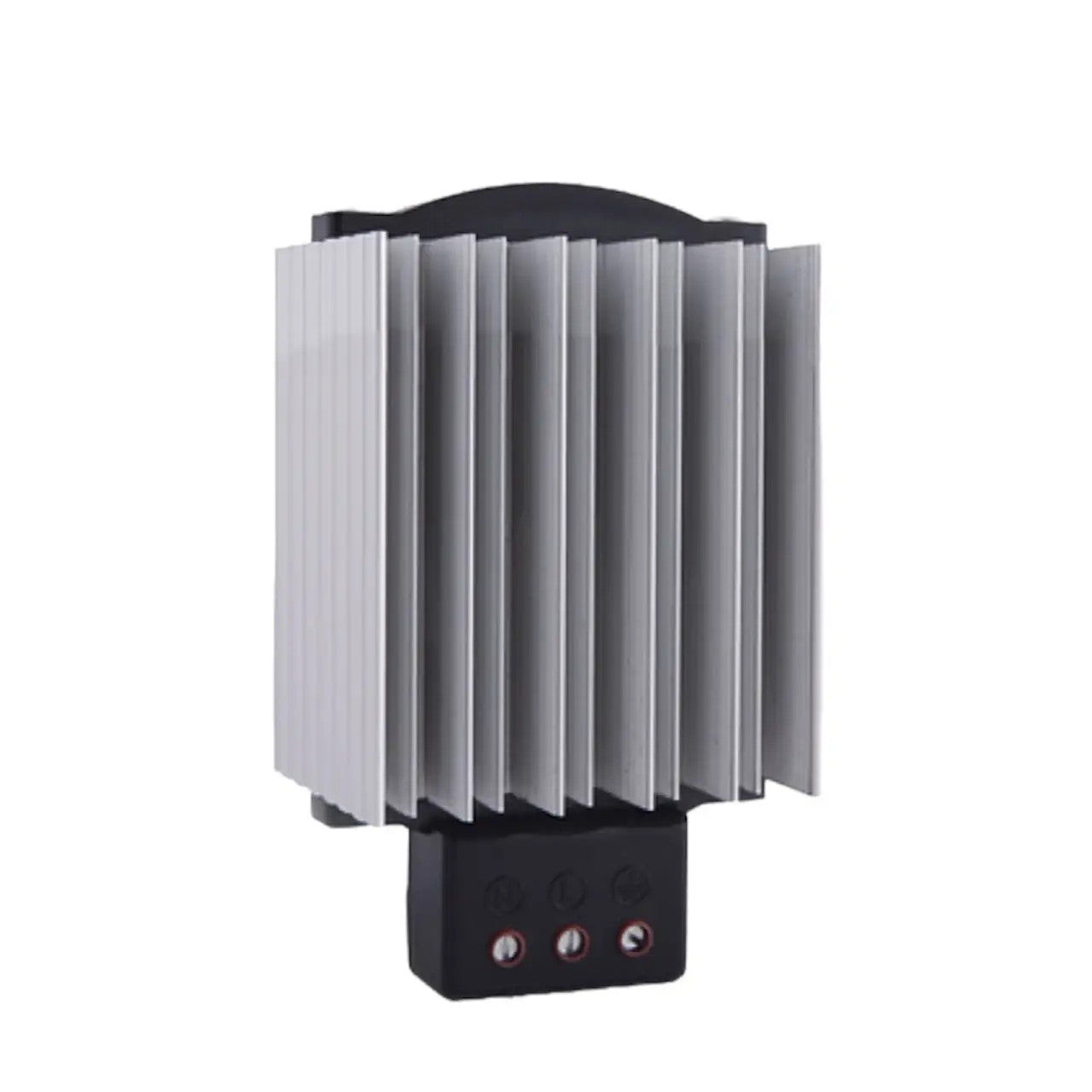

Switchboard Heater PTC 30W, PHT030, Plastim

Electric (PTC Body Heater, post-tension heater) panel heating with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 30 watts, 110-220 volts AC or DC, PHT030, Plastim - made in Turkey.

• Heating power: 30W
• Operating voltage: 100-250V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistance
• Overcurrent protection: Electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: DIN rail 35 mm

• Mounting position: Best performance in vertical position

• External dimensions: 128x70x59mm

• Weight: 0.41 kg

Heating elements are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent bulbs were used for this purpose, but it is clear that this method does not meet the modern stringent requirements for electrical equipment and electronics. Nowadays, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic protection against surface overheating, which is an additional guarantee for safe operation.

Due to the high demands placed on cabinet heaters, Plastim has paid the utmost attention to the selection of component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but it also does not emit odors and thus does not release harmful carcinogenic substances into the atmosphere. Agree that this approach in supplier selection favorably distinguishes Plastim heaters of high quality from cheap Chinese analogs.

To ensure that the temperature of this heating system is maintained automatically, you need a simple bimetal thermostat or a more complex thermostat. Both devices are available for purchase on our website:

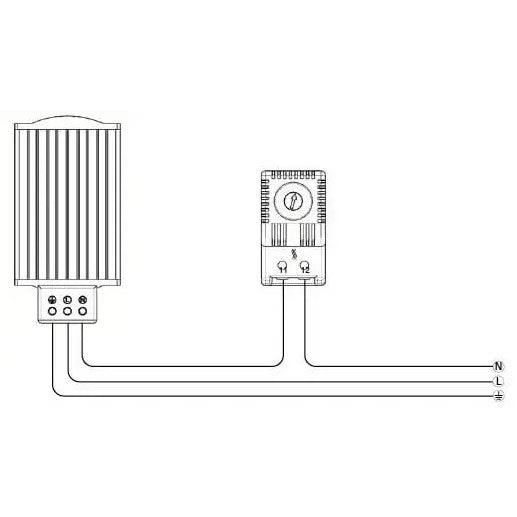

Thermostat connection -

Link to controllers -
