Plastim

Ventilator with filter, 240 (270) m3/h, 260x260, 230V 50/60Hz IP54 PTF3500 Plastim

In stock - 48 items available
SKU: PTF3500
€95,40 Inclusief BTW

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

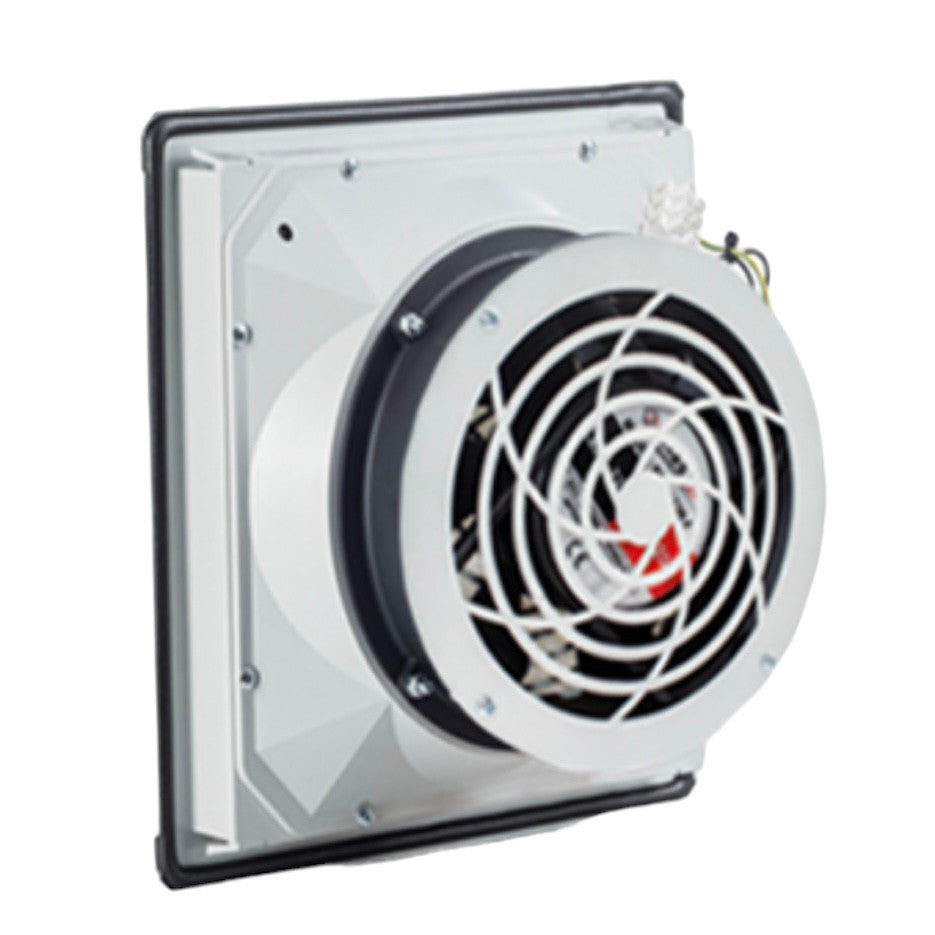

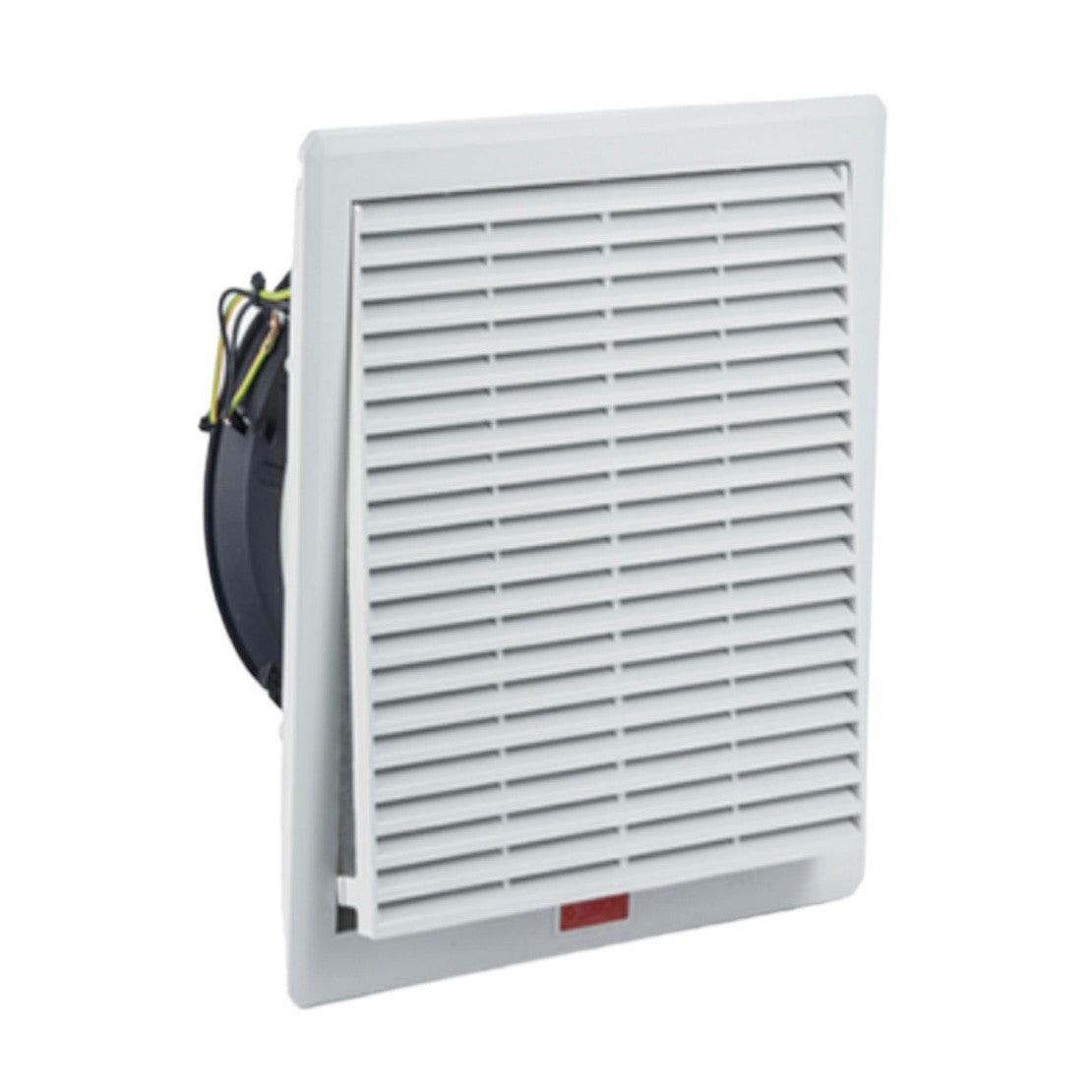

Ventilation grille with fan and filter, size 260x260 mm, for installation in electrical panel, automation cabinet, ATM or gaming machine. PTF3500, manufacturer Plastim (Turkey)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of cabinets to maintain IP.

  • External dimensions: 260x260x103 mm
  • Installation size: 223x223 mm
  • Airflow: 240 (270) m3/h
  • Noise level: 52 (53) dB(A)
  • Bearing: Ball bearing
  • Operating voltage: 220-230 VAC, 50/60 Hz
  • Current consumption: 0.23 (0.22) A
  • Power: 37 (35) W
  • Electrical connection: 3-pole terminal
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic: UL94 V0 ABS Flame retardant
  • Sealing: Polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 1.6 kg
  • Installation: Quick Clip-on

For automatic air exchange and temperature control with this fan, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
