Resistance heater with fan 250W, PFHT250, PLASTIM

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

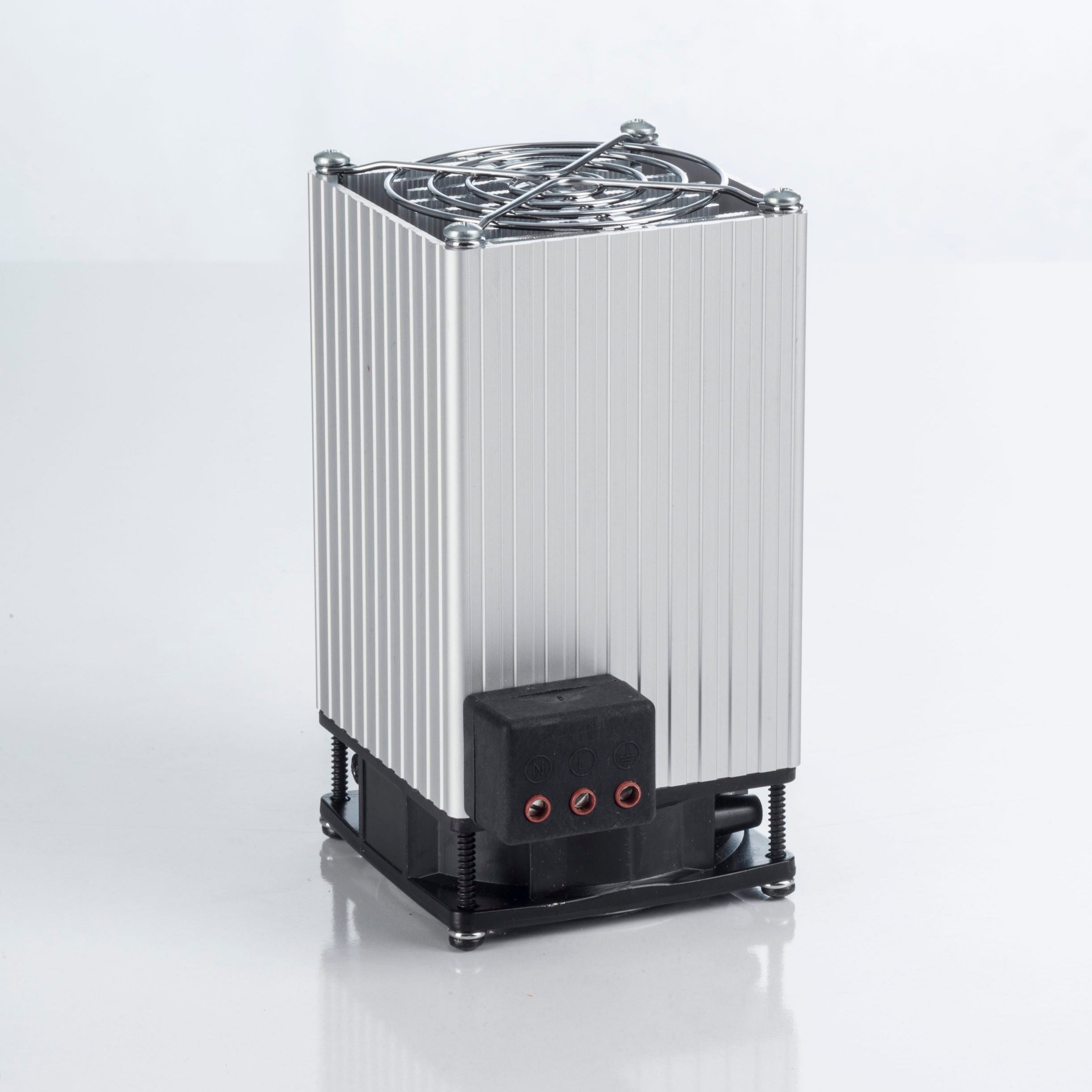

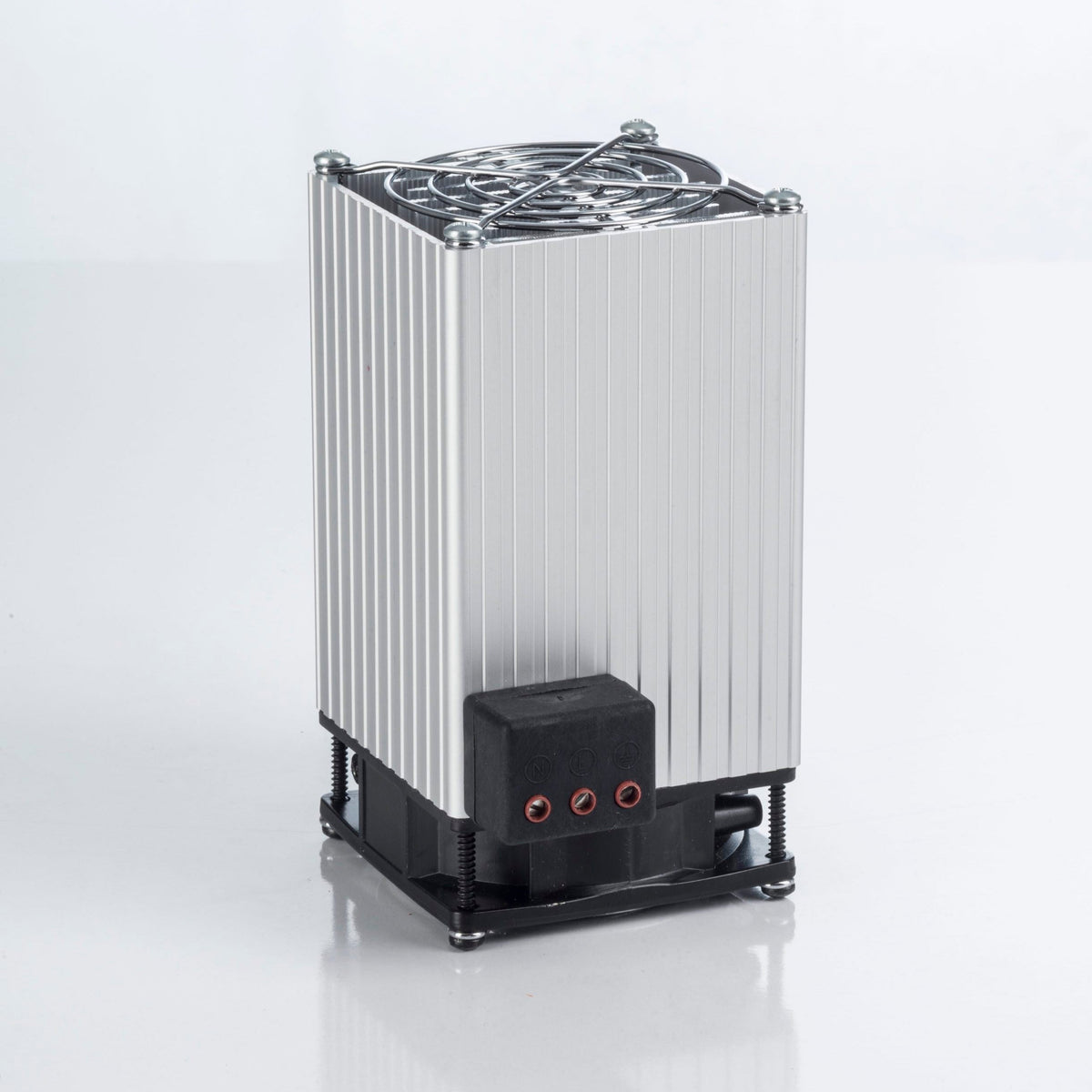

Electric (resistance heating, after heater) panel heating with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

• Heating power: 250W

• Operating voltage: 220/230V AC, 50/60Hz

• Maximum current: 1.2 A

• Resistance heating

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole N-L-E terminal

• IEC protection class: Class II

• Protection class: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: DIN rail 35 mm

• Mounting position: Best performance in vertical position

• External dimensions: 152x80x110mm

• Weight: 0.98 kg

To automatically maintain the temperature of this heater, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available through our website.
