Resistance heater with fan 500W, PFHT500, PLASTIM

Online payment by card - after completing the order you will be redirected to the payment gateway, payment confirmation will be sent to your email

Payment upon delivery - payment according to the payment instructions to the driver of the transport company

Bank transfer - you will receive a proforma invoice by email the next business day at the latest, containing the account number you entered when making the payment.

By invoice - this payment option is for partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, please call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, have a 24-month warranty and comply with all EU requirements.

In the event of a complaint, there will be no charges for returning goods.

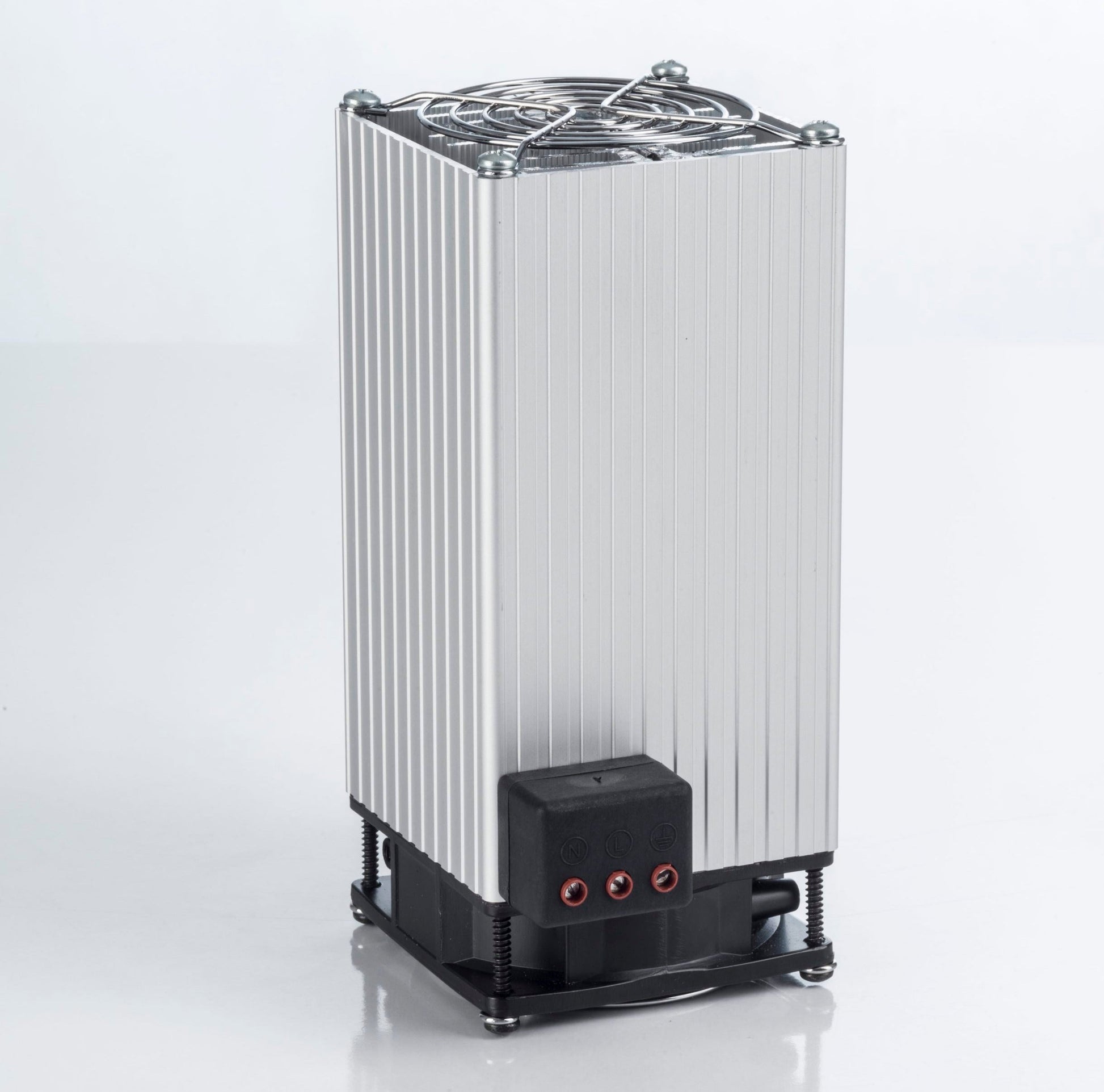

Electric (resistance heating, afterheater) panel heating with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with a power of 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

• Heating power: 500W

• Operating voltage: 220/230V AC, 50/60Hz

• Maximum current: 2.4 A

• Type resistance heating.

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole N-L-E terminal

• IEC protection class: Class II

• Protection class: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: DIN rail 35 mm

• Mounting position: Best performance in vertical position

• External dimensions: 182x80x110mm

• Weight: 1.2 kg

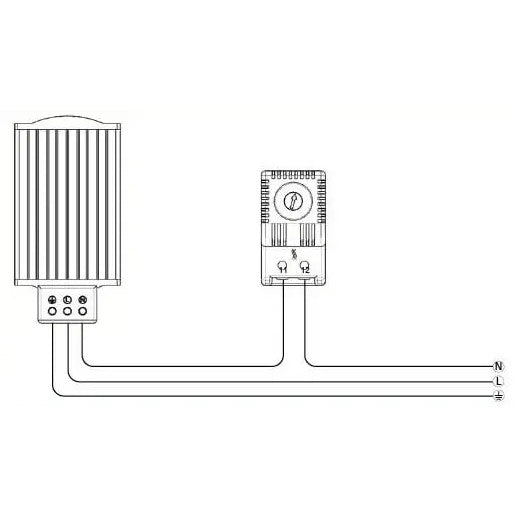

To automatically maintain the temperature with this heater, you need a simple bimetal thermostat or a more complex temperature controller. Both devices are available on our website.
